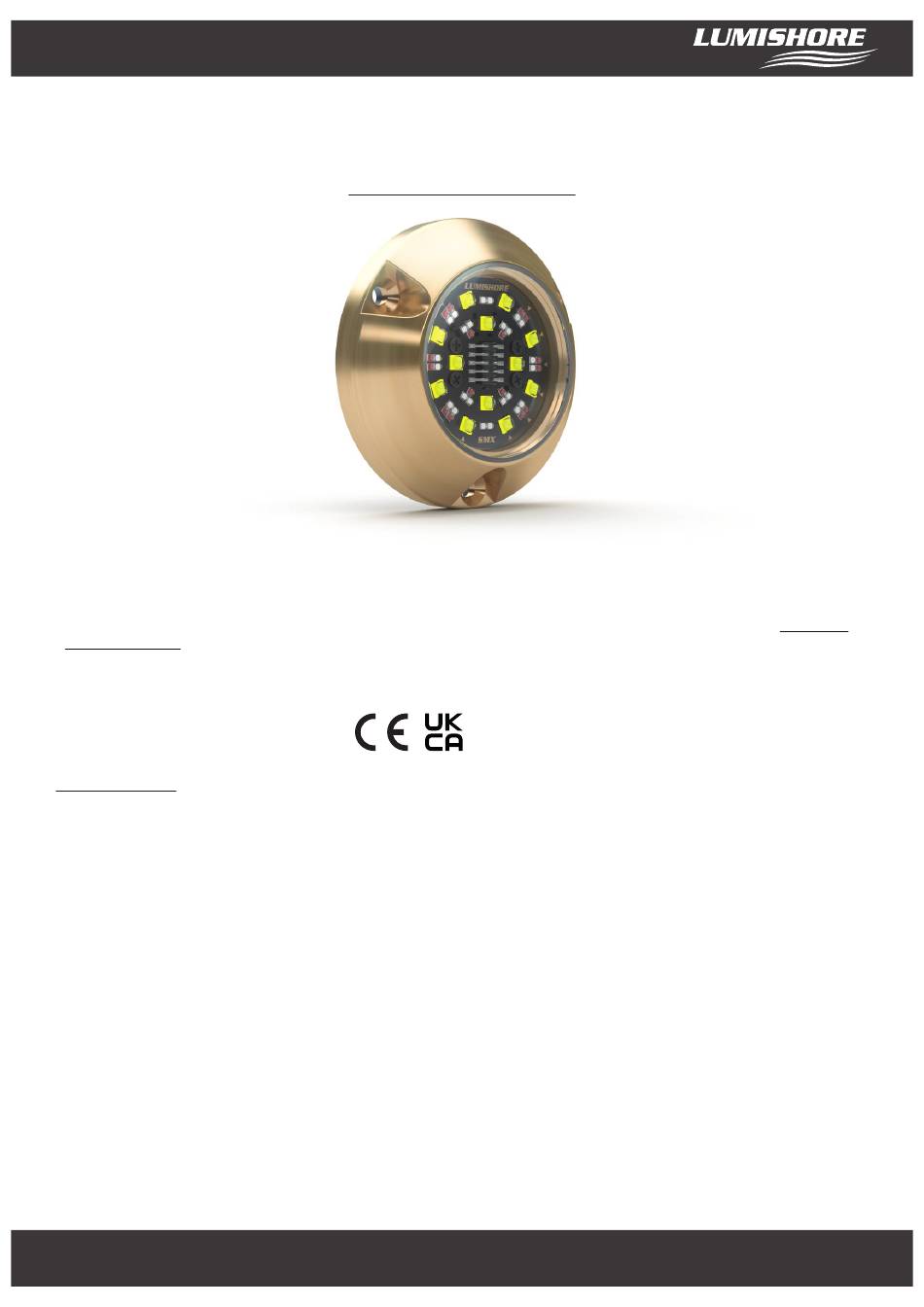

lumishore Eclipse SMX93 Installation Manual

eclipse
Please read the following pages before attempting installation to ensure complete understanding of
Lumishore ECLIPSE SMX93. This product should only be installed, inspected, and maintained by a qualified
electrician only, in accordance with all applicable electrical codes. Be certain electrical power is OFF before
and during installation and maintenance.
Color Output
Color change
Before you start:
• Always ensure that the vessel's power source and battery are disconnected or isolated prior to installation.
• A qualified professional should carry out both the electrical and mechanical installation.
• For best underwater illumination, LUMISHORE recommends installation 4" to 12" (100-300mm) below the
minimum load water line.
• Choose a location - The light must be mounted on a flat (not curved) surface. For underwater installs mount
on transom or side hull only.
• A hole will be drilled to allow the cable to be inserted; care must be taken to ensure there is unrestricted
access inside the hull.
• When installing three or more lights, equal spacing 2.5'- 3' is recommended to give a consistent light pool.
• The light is temperature sensitive and must not be located close to the exhaust outlet or other heat source.
• SMX93 Lights operate on 12V or 24V DC. Never connect a light directly to the mains AC voltage, or DC voltage
other than that specified.
• For Installation on boats up to 7.5m (25 ft). Isolation kit (39-0203) MUST be used on boats with conductive
hulls.
Lumishore UK, Unit D12, Upper Fforest Way, Swansea Enterprise Park, Swansea, SA6 8QR
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 | (941) 405-3302 | Sales@LumishoreUSA.com
SMX93 Color Select Installation Manual
60-0315 - SMX93 - Color Select
Voltage
10-31V DC
| + 44(0)208 144 1694 | Info@Lumishore.com
45-0204-Rev1
