lumishore LUX Livewell Light LW25 Installation Manual

LUX Livewell Light LW25 Installation Guide
Full spectrum color tunable lighting, including cold and warm white light
Without Bezel Fitted

Before you start...

• Always ensure that the vessel's power source and battery are disconnected or isolated prior
to installation.
• A qualified professional should carry out both the electrical and mechanical installation.
• The LUX Livewell Light is designed to be used in conjunction with the Lumishore LUX Light
Module (see diagram below). Do not connect to any other 3rd party lighting control products
or dimmers.
• The LUX Livewell Light is fully sealed and can be installed inside, outside or underwater in
the livewell tank.
• Choose a location – the light must be mounted on a flat – not curved surface.
• Note that fitting the Bezel is optional.
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | +44(0)208 144 1694 | Info@Lumishore.com
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 | (941) 405-3302 | Sales@LumishoreUSA.com
Please read the following pages before attempting installation
45-0161-Rev2

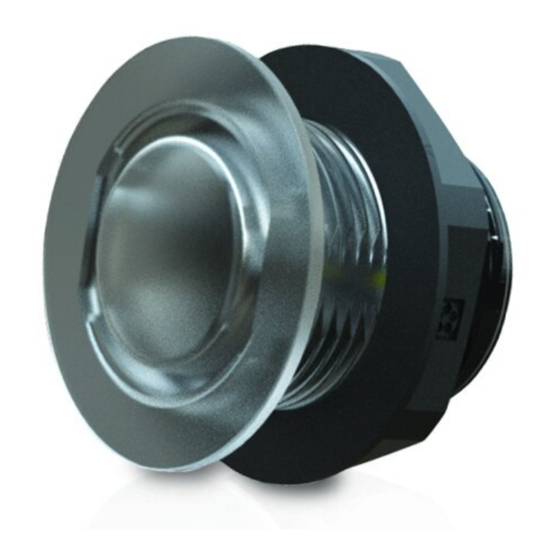

With Bezel Fitted
www.Lumishore.com
1
