1.4 LED INDICATORS

ALLinBOX 1612 v2 incorporates 7 LED lights on the top of the device that make it easy
to monitor the status of the buses and to detect typical communication problems, as
detailed next.
KNX Line Status LED (TP): shows the status of the primary bus.
➢ OFF: error or KNX line not connected or not powered.
➢ ON (green) = TP connection OK.
Note: the update of the LED status can be delayed a few seconds after the
trigger event, e.g., after the disconnection of the main line.
Ethernet Line Status LED (IP): shows the status of the secondary bus.
➢ OFF: error or IP line not connected.
➢ ON (green): Ethernet connection OK
Power Supply Status LED (POWER): shows the status of the power supply.
➢ OFF: free-voltage device.
➢ ON (green): voltage device (power supply OK).
➢ BLINKING (green): short circuit in the power supply / "Reset" button press.
http://www.zennio.com

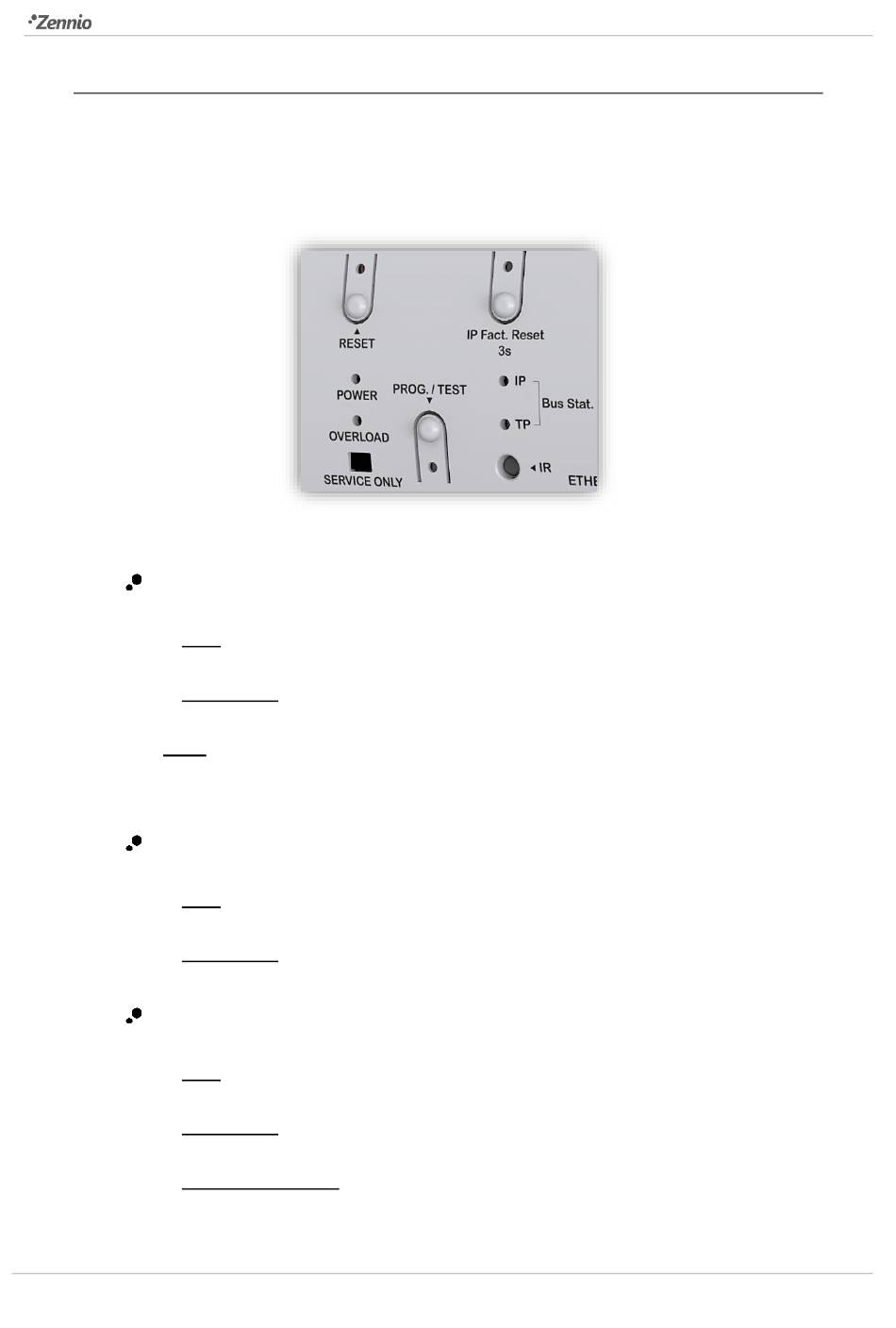

Figure 2. LEDs
