1.2 INSTALLATION

1 2 3
11 12

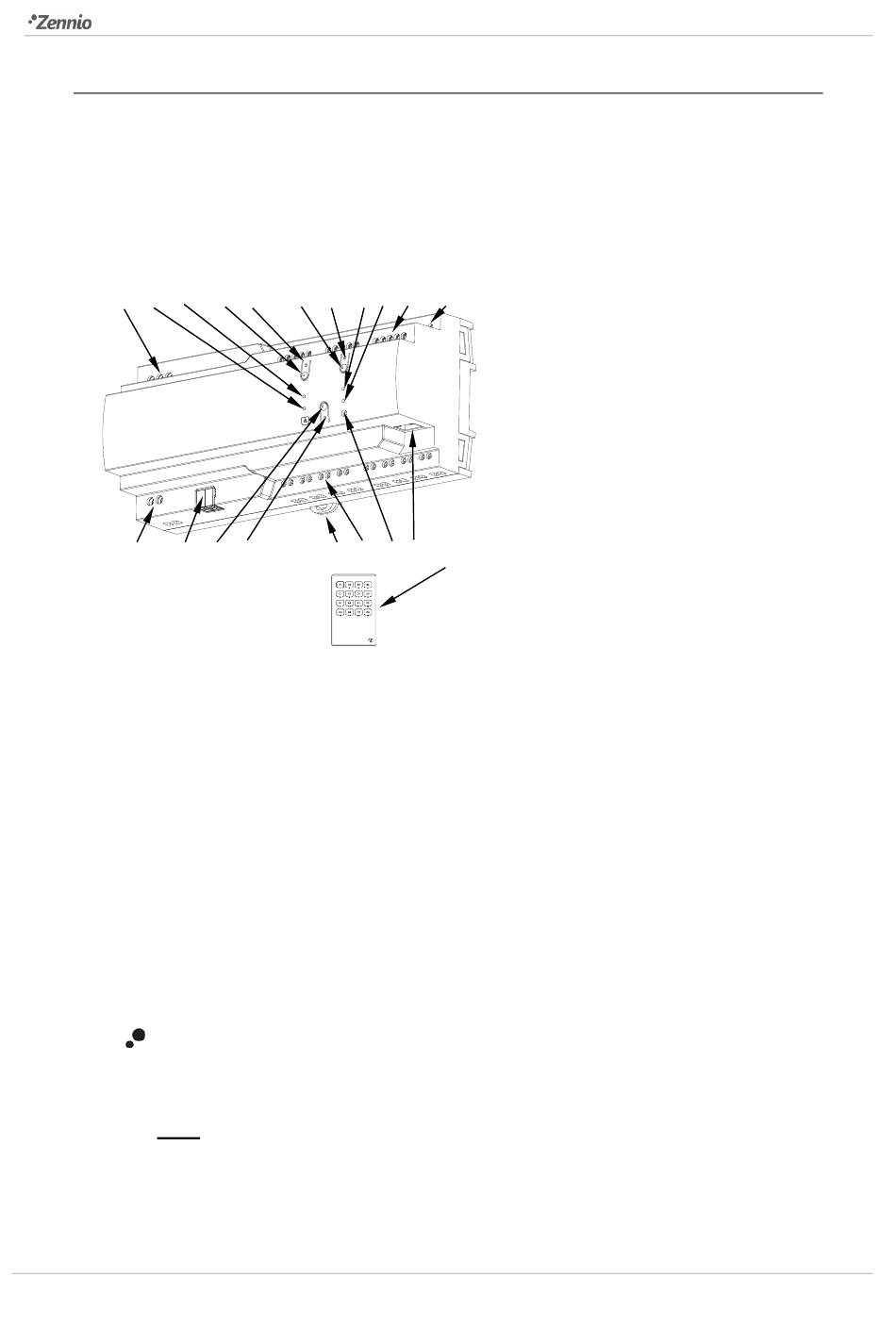

Figure 1 shows a scheme of ALLinBOX 1612 v2 with all the LED indicator and required
connections. ALLinBOX 1612 v2 has its own power supply, so it does not need an
additional one and it serves to supply the rest of the devices through the KNX bus.
The couple LNX twisted-pair (TP) line and LAN network, the KNX bus (12) and
Ethernet (18) cables must be connected. After the connection, the device can be
conveniently mounted on the DIN rail by the usual procedure.
The main elements of the device are described next.
Test/Prog. Pushbutton (13): a short press on this button sets the device into
the programming mode, making the associated LED (14) light in red.
Note: if this button is held while plugging the device into the KNX bus, the
device will enter into safe mode. In such case, the LED will blink in red every
0.5 seconds.
http://www.zennio.com
6 7
4 5 8
13 14 15 16 17 18 19
Figure 1. ALLinBOX 1612 v2 elements scheme.
9 10 16
Technical Support:
1. Main Power Supply.
2. Overload Status LED.
3. Power Supply Status LED.
4. Reset Button.
5. Reset Status LED.
6. IP Factory Reset Button.
7. IP Factory Reset LED.
8. Ethernet LED.
9. KNX Bus LED.
10. Analog/Digital Inputs.
11. Auxiliary Power Output.
12. KNX Connector.
13. Programming/Test Button.
14. Programming/Test LED.
15. Fixing Clamp.
16. Outputs.
17. IR Input.
18. Ethernet Connector.
19. Remote Control (not included).
http://support.zennio.com
ALLinBOX 1612 v2
