Summary of Contents for Chauvet Q-Wash 260-LED

  • Page 1 Quick Reference Guide...
  • Page 2 Q-Wash 260-LED QRG About this The Q-Wash 260-LED Quick Reference Guide (QRG) only contains the product’s connection and mounting information, as well as the Guide menu options and the DMX values.  This Quick Reference Guide DOES NOT replace the product’s User Manual.

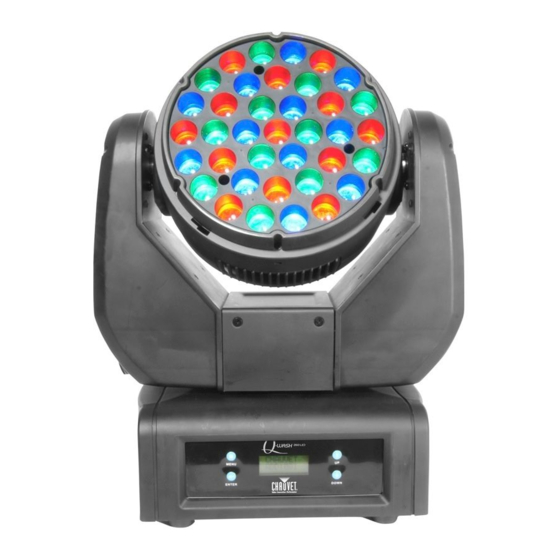

  • Page 3  3-pin DMX input and output connectors  LCD screen with password protection Product The Q-Wash 260-LED is an RGB LED wash moving head with multiple narrow beams. The product consists of a base and a moving Description head on a yoke. The LEDs are inside ducts, which, along with special optics, provide a very narrow beam angle.
  • Page 4 Q-Wash 260-LED QRG Page 4 of 11...
  • Page 5 If you are not familiar with the DMX standard, please download the DMX Primer document from www.chauvetlighting.com. DMX Connection The Q-Wash 260-LED uses a regular DMX data connection for DMX personalities, BASIC, and ADVANCED. Download the Q-Wash 260-LED User Manual and refer to the Setup...
  • Page 6 Editing Notes When in EDIT and CALIB modes, <UP> and <DOWN> only change the value of the selected option. To move to the next option press <ENTER> repeatedly. Refer Q-Wash 260-LED User Manual for more details. Page 6 of 11...

  • Page 7: Menu Options

    Q-Wash 260-LED QRG Menu Options Level Programming Levels Description ADDRESS 001~512 Selects a starting DMX address RESET NO/YES Resets the product’s custom settings HIGH Select the fan’s operation mode. NORMAL NOTE: Fixture’s controller will force the fan to High if the FANS product’s internal temperature becomes too high, despite any...

  • Page 8: Extra Menu

    Q-Wash 260-LED QRG Extra Menu Level 2nd Level 3rd Level Level Description 3200 K GREEN 000~255 Sets color temperature for Macro > White 1 BLUE Sets color temperature for Macro > White 2 3400 K GREEN 000~255 BLUE 4200 K...

  • Page 9: Dmx Values

    Q-Wash 260-LED QRG DMX Values Channel Function Value Percent/Setting BASIC 000  255 0~540º 000  255 0~270º Tilt 000  255 0~100% 000  255 0~100% Green 000  255 0~100% Blue 000  005 No function 006  010 High power 011 ...
  • Page 10 Q-Wash 260-LED QRG Channel Function Value Percent/Setting ADVANCED 000  255 0~540º 000  255 Fine movement control Pan Fine 000  255 0~270º Tilt 000  255 Fine movement control Tilt Fine 000  255 Fast~Slow Pan/Tilt Speed 000  255 0~100% 000 ...
  • Page 11 (954) 929-1115 (Press 4) Email: uktech@chauvetlighting.com Fax: (954) 756-8015 Email: tech@chauvetlighing.com World Wide Web World Wide Web www.chauvetlighting.com www.chauvetlighting.co.uk Q-Wash 260-LED QRG – Rev. 01e © Copyright 2011 CHAUVET® All rights reserved Printed in the P. R. C. Page 11 of 11...
