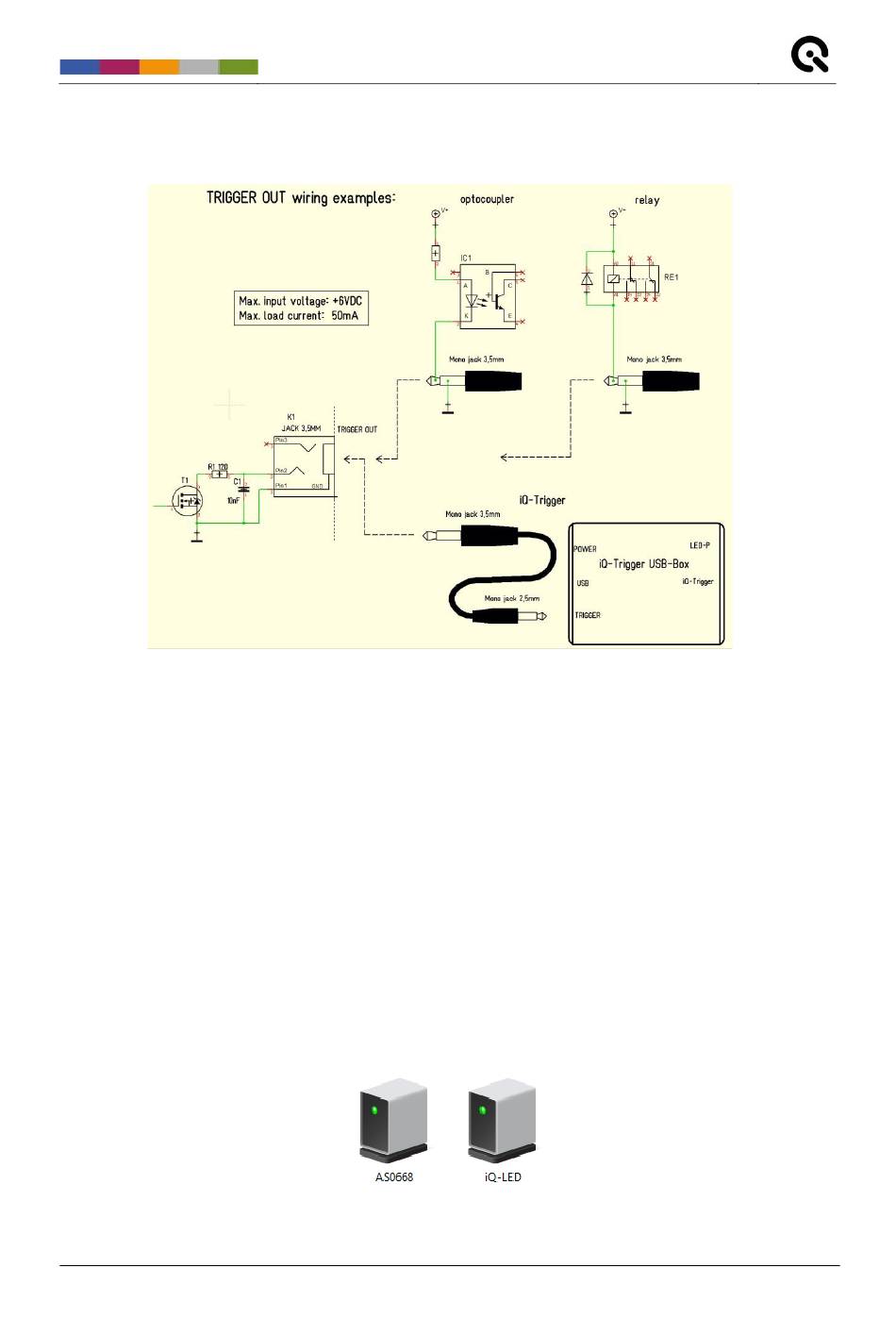

Wiring examples for the trigger output:
The default duration value for the trigger output is 500 ms. This value can be modified with the iQ-LED
API. A signal is sent out to the trigger output while changing the illuminates or the intensity of LED
channels. It can be used to synchronize your test setup. For example, with an iQ-Trigger (see 2.1
optional equipment).
3.2
Connecting the hardware
1. Connect the power cord to the power supply on the back of CAL1.
2. Connect the USB cable to the CAL1 and your PC.
3. Turn on the CAL1; the power switch is next to the power supply.
4. Connect the spectrometer to the PC using the USB cable. The system will install the
spectrometer and iQ-LED drivers on your PC; this will take a few seconds.
5. You can check the installation in your hardware manager.
Image Engineering
Trigger OUT wiring examples
Hardware Manager: active iQ–LED and spectrometer
Seite 6 von 10
