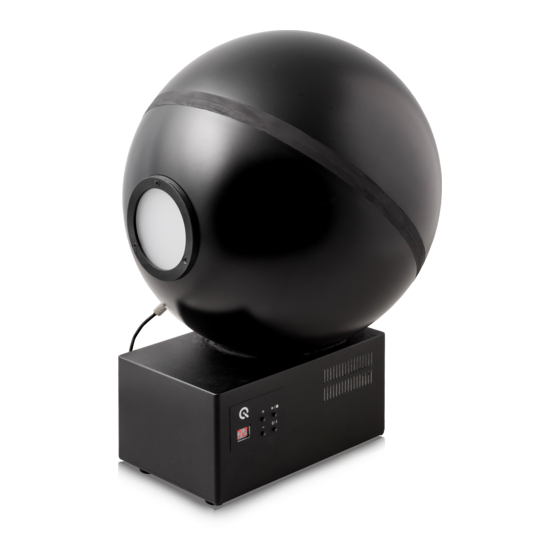

- Page 1 CAL1 User Manual November 5, 2021 Image Engineering GmbH & Co. KG · Im Gleisdreieck 5 · 50169 Kerpenem · Germany T +49 2273 99991-0 · F +49 2273 99991-10 · www.image-engineering.com...
-
Page 2: Table Of Contents
4.3 Starting the system ....................7 4.3.1 Spectrometer settings ..................7 4.3.2 iQ-LED calibration....................8 4.4 Low-intensity use....................8 ADDITIONAL INFORMATION ..................9 5.1 Maintenance ......................9 5.2 Care instructions ....................9 5.3 Disposal instructions ....................9 TECHNICAL DATA SHEET ..................10 Image Engineering Seite 2 von 10... -
Page 3: Introduction
Keep these instructions in a safe place and pass them on to any future user. Conformity We, Image Engineering GmbH & Co. KG, hereby declare that the CAL1 corresponds to the essential requirements of the following EC directive in its current version: •... -
Page 4: General Safety Information
Do not look directly in the sphere or light source when using high intensities or sequences with low response time. • Do not open the device without instructions from the Image Engineering support team or when connected to the power supply. 2 GETTING STARTED Scope of delivery •... -
Page 5: Operating Instructions Hardware
• 1: illuminant A (default illuminant) • 2: illuminant D50 • 3: illuminant D75 Note: To store your generated illuminants or sequences on your device, please follow the iQ-LED SW user manual instructions. Image Engineering Seite 5 von 10... -
Page 6: Connecting The Hardware
Connecting the hardware 1. Connect the power cord to the power supply on the back of CAL1. 2. Connect the USB cable to the CAL1 and your PC. 3. Turn on the CAL1; the power switch is next to the power supply. -
Page 7: Camera Positioning
Camera positioning • Your DUT should be as close as possible to the CAL1 diffuser • The lens should be precisely in the middle of the diffuser If these requirements are not fulfilled, an inhomogeneous illuminated field of view will occur. The easiest way to align the camera correctly is to use the optional iQ-Align (see 2.1). -
Page 8: Iq-Led Calibration
Your spectrometer comes fully NIST traceable calibrated. We recommend recalibrating the spectrometer yearly, regardless of the operating hours. If a spectrometer calibration is required, please contact Image Engineering. Note: Before removing the spectrometer, measure and note the lux value of a predefined standard illuminant. -
Page 9: Low-Intensity Use
After the service life of CAL2, it must be disposed of properly. Electrical and electromechanical components are included in CAL2. Observe your national regulations and ensure that third parties cannot use CAL2 after disposing of it. Contact Image Engineering if assistance for disposal is required. Image Engineering Seite 9 von 10... -
Page 10: Technical Datasheet
6 TECHNICAL DATASHEET See annex for the technical data sheet. It can also be downloaded from the website of Image Engineering: https://image-engineering.de/support/downloads. Image Engineering Seite 10 von 10...
