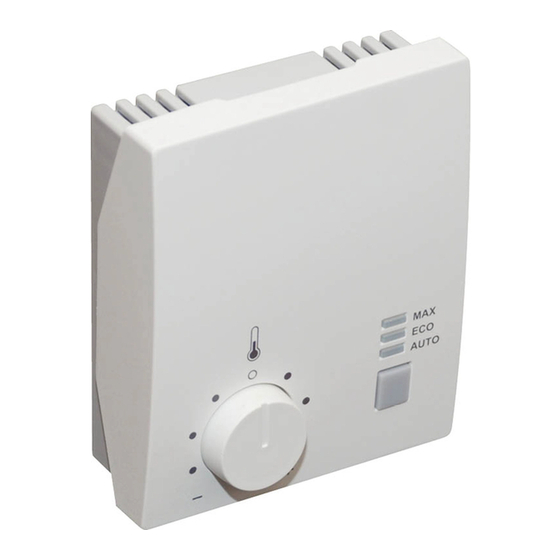

Belimo CR24 Series Product Information

Single room controllers
Hide thumbs Also See for CR24 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
www.belimo.com
Product information
CR24-.. Single room controllers

Table of contents

Overview of the system
Technical data sheets
CR24-B1 / CR24-A1 Single room controllers
CR24-B2 / CR24-A2 Single room controllers
CR24-B2E / CR24-A2E Single room controllers
CR24-B3 / CR24-A3 Single room controllers
Setpoint calculation
Energy hold off / Stand-by / VAV-Function
Electric air heater / External temperature sensor / Supply air temperature limitation
CR24-..
2
3
5
7
9
13
15
17
18
19
20
21
22
23
24
25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR24 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Belimo CR24 Series

Summary of Contents for Belimo CR24 Series

  • Page 1: Table Of Contents

    Energy hold off / Stand-by / VAV-Function Electric air heater / External temperature sensor / Supply air temperature limitation External setpoint shift / Air flush Change-over Boost Chilled ceiling Rolling start / Excess temperature protection / Step control Dimensions, Installation, Commissioning, Service www.belimo.com...
  • Page 2 CR24-.. Overview of the system Single room controllers CR24-B1 CR24-B2 CR24-B2E CR24-B3 VAV applications Compact Universal Water applications Rotary actuators and control ball valves Air applications Damper actuators www.belimo.com...

  • Page 3: Overview Of Functions

    The technology, functionality and handling of the new microprocessor-controlled room tempera- ture controllers are perfectly adapted to the BELIMO actuators for motorized air and water final controlling elements. The functional classification into three basic types with up to three output sequences and the large number of specific applications facilitate cost-effective system solutions for individually controlling the room climate and reducing energy consumption.

  • Page 4: Operation

    • • • • – External setpoint shift 0...10 V Outputs Number • – (0)2...10 V system output for Belimo VAV controller or change-over • • • – (0)2...10 V system output for Belimo VAV controller • • • – Heating output 3-point •...
  • Page 5 – P-band heating / cooling Selectable: 1.5 / 1.0 K or 3.0 / 2.0 K External temperature sensor (ai1) Type NTC, 5 kΩ, sensing range 10...45°C for example Belimo type 01DT-1HP Heating setpoint Range 15...36°C (default 21°C) – Energy hold off Heating 15°C / cooling 40°C...
  • Page 6 U5 6 7 8 CR24-B1 Inputs Outputs ai1 External temperature sensor ao1 System output for Belimo VAV controller di1 Energy hold off Other connections di2 Stand-by / Change-over PP1 Diagnostics socket 1 ai2 External setpoint shift PP2 Diagnostics socket 2...
  • Page 7 – P-band heating / cooling Selectable: 1.5 / 1.0 K or 3.0 / 2.0 K External temperature sensor (ai1) Type NTC, 5 k�, sensing range 10...45°C for example Belimo type 01DT-1HP Heating setpoint Range 15...36°C (default 21°C) – Energy hold off Heating 15°C / cooling 40°C...
  • Page 8 1 2 9 10 6 7 8 CR24-B2 Inputs Outputs ai1 External temperature sensor System output for Belimo VAV controller di1 Energy hold off 9/10 ao3 Heating (3-point) di2 Stand-by Other connections ai2 External setpoint shift PP1 Diagnostics socket 1...
  • Page 9 – P-band heating / cooling 2 K with 2 resp. 3 stages / 2.0 K External temperature sensor (ai1) Type NTC, 5 kΩ, sensing range 10...45°C for example Belimo type 01DT-1HP Heating setpoint Range 15...36°C (default 21°C) – Energy hold off Heating 15°C / cooling 40°C...

  • Page 10: Boost

    [°C] Y [V] Output voltage in volt Cooling output [°C] Room temperature in degrees centigrade System output for Belimo VAV controller Heating setpoint Heating stage I Cooling setpoint Heating stage II Output on/off Maximum volume flow Maximum volume flow heating...
  • Page 11 ! On/off valve VAV 1 Inputs Outputs Supply air temperature limiter System output for Belimo VAV controller Energy hold off do3/1 Heating stage I On/off radiator valve Stand-by do3/2 Heating stage II External setpoint shift Other connections...
  • Page 12 www.belimo.com...
  • Page 13 – P-band heating / cooling Selectable: 1.5 / 1.0 K or 3.0 / 2.0 K External temperature sensor (ai1) Type NTC, 5 kΩ, sensing range 10...45°C for example Belimo type 01DT-1HP Heating setpoint Range 15...36°C (default 21°C) – Energy hold off Heating 15°C / cooling 40°C...
  • Page 14 4 12 ai/di1 di2 di3 CR24-B3 1 2 9 10 11 6 7 8 Inputs Outputs External temperature sensor System output for Belimo VAV controller Energy hold off 9/10 Heating (3-point) Stand-by Heating / Cooling External setpoint shift Other connections...
  • Page 15 Rotary knob Diagnostics sockets 1 and 2 are used for PP communication with the PC-Tool connection for control sequence simulation connected Belimo MFT actuators or VAV controllers. As a result, physical access to the field devices can be dispensed with. www.belimo.com...
  • Page 16 www.belimo.com...
  • Page 17 + 3 K Stand-by offset cooling Energy hold off Fixed 15°C (building protection) Fixed 40°C (building protection) Frost Fixed 10°C Not relevant Examples Comfort Stand-by +1 K Dead band +1 K Dead band 23°C Comfort heating setpoint W 23°C Comfort heating setpoint W www.belimo.com...
  • Page 18 – Providing or assisting heating with air. – Improving the air quality during heating. heating CR24-B2 configuration The VAV function is configured using DIP switch 2. Output signal [°C] CR24-B3 configuration Room temperature Current setpoint The VAV function is configured using DIP switch 2. www.belimo.com...
  • Page 19 CR24-B2E – Combined application with EHO switch: EHO active = supply air temperature limitation not active Supply air Supply air temperature temperature [°C] [°C] Mean value 45...46°C Time Time Without supply air limitation With supply air limitation www.belimo.com...
  • Page 20 – The VAV output ao1 is set to a fixed value of V′ (10 V). – The heating output ao3 remains in the normal control mode and Y [V] continues to be controlled by means of the heating sequence. Air flush Output signal [°C] Room temperature Current setpoint www.belimo.com...
  • Page 21 The CR24-B3 controller is suitable for applications that require both a stand-by function and a change-over function. ao1 U5 Configuration CR24-B1 The change-over function is configured using DIP switch 2 Belimo actuator Y U5 Y [V] Heating Cooling Change-over Output signal [°C]...
  • Page 22 The air is always conditioned to the comfort setpoint W, even if stand-by (d1) is active, in order to facilitate room preconditioning. Configuration (CR24-B3 only) This boost function is configured using DIP switches 4 (boost on) and 5 (boost temperature- controlled). www.belimo.com...

  • Page 23: Chilled Ceiling

    Typical applications Chilled ceiling systems that require dew point limiting. Configuration Dew point This function is configured using DIP switches 3 and 4. CR24-B3 Belimo actuator Y [V] Dew point Output signal Room temperature [°C] Current setpoint Chilled ceiling with dew point limiting and change-over...

  • Page 24: Rolling Start / Excess Temperature Protection / Step Control

    This function is configured using DIP switch 1. – Einzelstufen: Simple electric air heaters or open/close radiator/zone valves (Factory setting) – Binärstufen: 2-step electric air heaters in 3-step mode, Binary steps 0.5 K 0.5 K 0.5 K e.g. 1/3, 2/3, 3/3 I / III www.belimo.com...

  • Page 25: Dimensions, Installation, Commissioning, Service

    Remove the knob and align it so that the cam is flush with the left stop. c. Insert the knob fully. Left stop Electrical installation AC 24 V 2.5mm 1.5mm 1.5 mm www.belimo.com...
  • Page 26 – Wire sizing values for room temperature controllers: 3 VA per CR24-... – Wire sizing values for control devices, VAV controllers, damper actuators, valves etc. can be found in the latest data sheets and product information (www.belimo.com) – Other devices to be operated with the AC 24 V supply –...
  • Page 27 A (<20 V) attation must be paid to the following AUTO green permanently off flash permanently on points: <20 V 20...22 V >22 V – Quality of the wiring and connections – Cable length/diameter and the transformer sizing. www.belimo.com...
  • Page 28 To activate these outputs again, the potentio- meter must be reset via the “0” position to the heating range. –1 W = X –2 –3 Potentiometer (setpoint adjustment) for simulating the room temperature II III –3 max. 15 s www.belimo.com...
  • Page 29 www.belimo.com...
  • Page 30 www.belimo.com...
  • Page 31 www.belimo.com...
  • Page 32 On site around the globe A complete range of products from one source Tested quality Short delivery times Comprehensive support Headquarters Subsidiaries, Representatives and Agencies BELIMO Holding AG Agentina Denmark Lebanon Rumania Brunnenbachstrasse 1 Australia Egypt Liechtenstein Russia CH-8340 Hinwil Bahrain...
