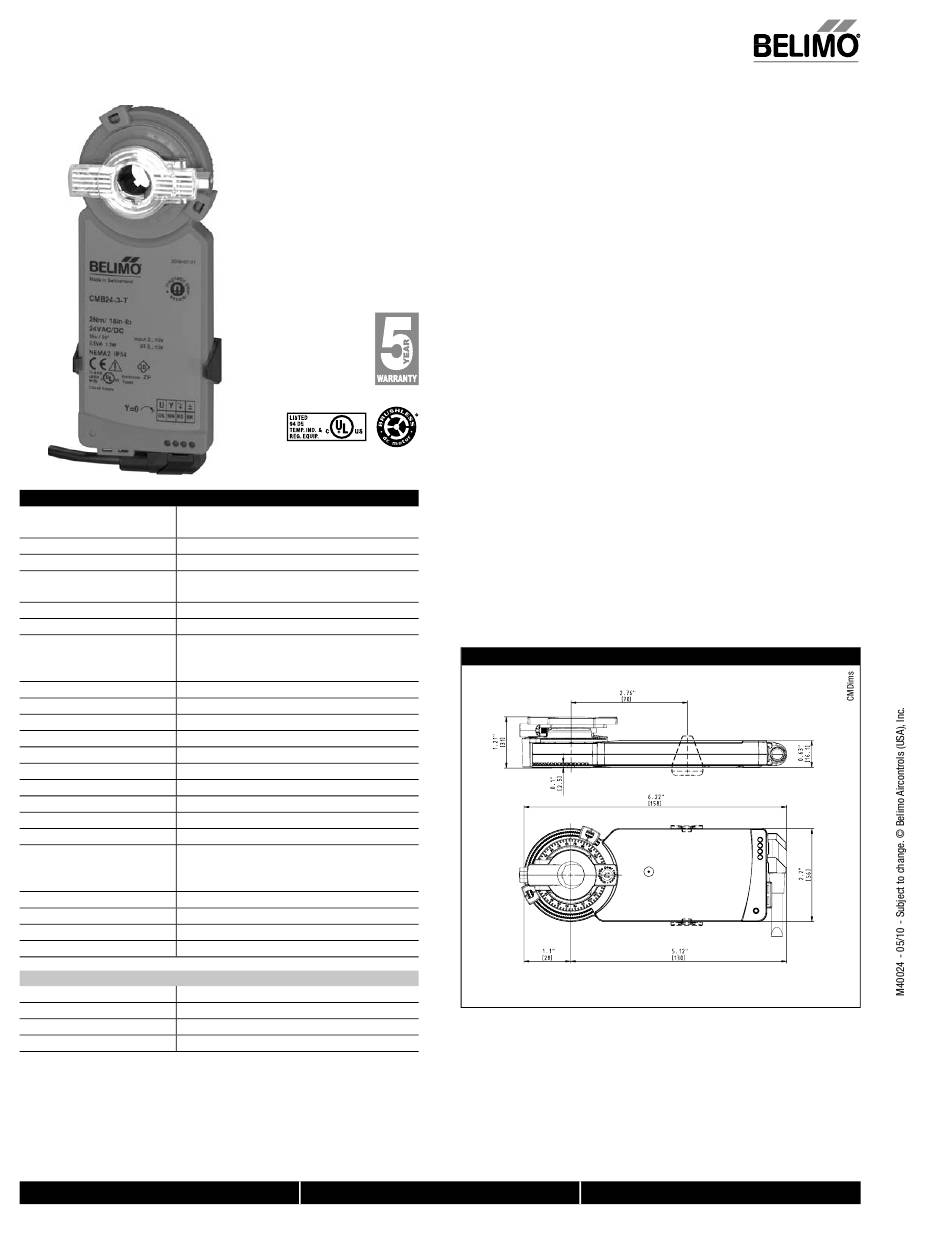

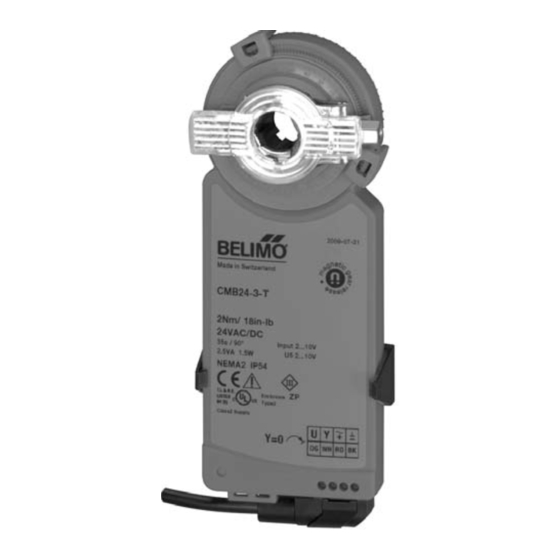

CMB24-3(-T)
On/Off, Floating Point, Non-Spring Return, 24 V
Technical Data
CMB24-3
Power supply
24 VAC ± 20% 50/60 Hz
24 VDC ± 20%
Power consumption
1.0 W (0.2 W resting)
Transformer sizing
1.5 VA (Class 2 power source)
Electrical connection
3 ft, 18 GA appliance rated cable
protected NEMA 2 (IP54)
Overload protection
electronic throughout rotation
Control
on/off, fl oating point
Angle of rotation
without end stop; limitless
with end stop; 315° fi x
287.5° max. with two end stops
Torque
18 in-lb [2 Nm]
Direction of rotation
by electrical installation
Position indication
reflective visual indicator (snap-on), with magnet
Manual override
disengage with magnet
Running time
35 seconds, constant independent of load
Humidity
5 to 95% RH non condensing (EN 60730-1)
Ambient temperature
-22°F to 122°F [-30°C to 50°C]
Storage temperature
-40°F to 176°F [-40°C to 80°C]
Housing
NEMA 2, IP54, UL enclosure type 2
Housing material
UL94-5VA
Agency listings†
cULus acc. to UL 60730-1A/-2-14,
CAN/CSA E60730-1:02,
CE acc. to 2004/108/EEC and 2006/95/EC
Noise level
<45dB(A)
Servicing
maintenance free
Quality standard
ISO 9001
Weight
0.4 lbs [0.18 kg]
CMB24-3-T
Electrical connection
screw terminal (for 18 to 16 GA wire)
Form fit
0.31" x 0.31" [8mm x 8mm]
Housing
NEMA 1/IP20
Weight
0.3 lbs [0.13 kg]
† Rated Impulse Voltage 800V, Type of action 1, Control Pollution Degree 3 for 24-3-T Degree 2.
800-543-9038 USA
311
Torque min. 18 in-lb for control of damper surfaces up to 4.5 sq ft.
T
i
i lb f
Application
Damper actuator for operating air control dampers in ventilation and
air-conditioning systems for building services installations.
• For air control dampers up to approximately 4.5 sq ft
• Torque 2 Nm
• Nominal voltage AC/DC 24 V
• Control: Open-close or 3-point
• Running time 35 sec. @ 90°
Operation
Simple direct mounting on the damper spindle with a universal spindle clamp or
form fit, supplied with an anti-rotation bracket to prevent the actuator from rotating.
Manual operation is possible with a magnet (the gearing latch remains disengaged
as long as the magnet is in place).
A A djustable angle of rotation with mechanical end stops, that requires no tools to
move or remove.
The actuator is overload-proof, requires no limit switches and automatically stops
when the end stops is reached.
The CM24-3 actuator uses a brushless DC motor, which is controlled by an
A A pplication Specific Integrated Circuit (ASIC). The ASIC monitors and controls the
actuator's rotation sensing (DRS) function to prevent damage to the actuator in a
stall condition. Power consumption is reduced in holding mode.
Belimo's Halomo sensorless brushless DC motor spins by reversing the poles of
stationary electromagnets housed inside rotational permanent magnets. The
electromagnetic poles are switched by the an ASIC developed by Belimo. Unlike the
conventional DC motor, there are no brushes to wear or commutators to foul. This
means the brushless DC motor adds accuracy and reduces power consumption in a
holding mode.
Dimensions (Inches [mm])
866-805-7089 CANADA
l f d
f
203-791-8396 LATIN AMERICA
f
