BVF L-1 User Manual

User manual
BVF L-1

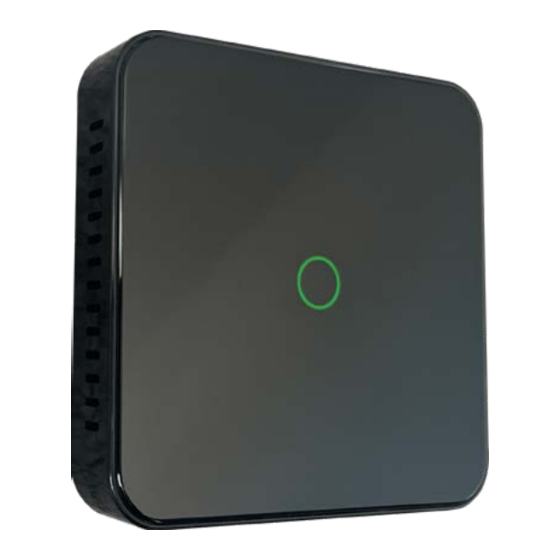

Smart outdoor thermostat
Timer indicator (1-4 hour)
Touch button and color led indicator
OVERVIEW
This thermostat is a new generation thermostat without any physical sensor. Our sensorless technology based on real time weather conditions
from application.
For normal operation you need to connect the L-1 thermostat with Tuya Smart application on your phone. After connection the thermostat can
automatically switch the heating on and off based on weather condition.
WIFI CONNECTION
Please scan the QR code for detailed instruction
or visit bvfheating.com/L-1
bvfheating.com
SPECIFICATION
Operating voltage:
Capacity:
Backup storage:
IP protection rating:
Housing:
PRG options:
Housing dimensions:
Relay inst. dimensions:
ATTENTION!
The thermostat can be placed indoors only!
LED INDICATOR STATUSES
230V AC, 50/60 Hz
3600W/16A
EEPROM
IP 30
Black
7 days, unlimited cycles
86 mm × 86 mm × 15 mm
Ø 65 mm diameter, standard
Pairing mode
Heating off, WiFi offline
Heating off, WiFi connected
Heating on
