BVF Heato9 User Manual

User manual

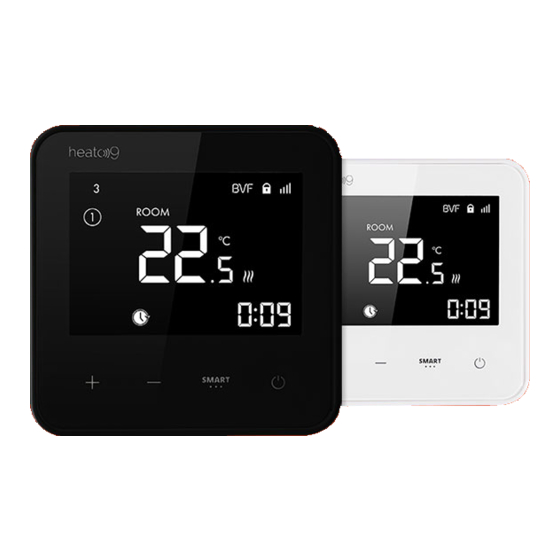

BVF Heato9
Programmable smart thermostat,
Heato Box compatible for online access
Day indicator
Period Icons
Comfort Mode
Energy-saving Mode
PRG Mode
Increase temperature
Decrease temperature
SETTING COMFORT MODE AND ENERGY-SAVING MODE
Switch between modes using the
1. Choosing the Comfort Mode
2. Choosing the Energy-saving Mode
CLOCK & 5+1+1 PRG SETTING
PRG function allows you to set different temperatures throughout the day. For example, you may want the home warm in the morning, cooler when you leave it for
the day, and then warmer in the evening when you return. The thermostat offers 5+1+1 programming option, four different temperature levels for each day. Default
comfort levels are pre-programmed; still you can change them easily with the following method:
Press and hold button for 5 seconds,
1. press and to adjust the clock (min-hour-weekday), each press of
2. after the clock adjustment, press
(Weekday- period- time- temp.) Each press of the
www.bvfheating.com
button.
you may assing temperature using
you may assing temperature using
to change the 5+1+1 mode. By pressing
button goes into the next item setting.
SPECIFICATION
Operating voltage:
Capacity:
Standby consumption:
Display:
External Sensor:
IP protection rating:
Housing:
Temperature settings:
Accuracy:
PRG options:
Housing dimensions:
Relay inst. dimensions:
Radio frequency:
Channel selection:
To pair it with Heato Box, please follow the steps in the Heato Box user
manual.
or buttons.
or buttons.
will go into the next setting,
and you can set the desired time and temperature of each period.
230V AC, 50/60 Hz
3600W/16A
0.5W
LCD White backlight
NTC 10kΩ @ 25°C
IP 30
White ABS to UL94-5 fire
standard
5°C–80°C, 0.5°C
± 0.5°C
5+1+1, four cycles each day
86 mm × 86 mm × 16 mm
Ø 65 mm diameter, standard
433 MHz
ID Study function
RF signal
Key lock on
Temp. display
Heating icon
Clock
Power On / Off
Modes & Parameter
