User manual
BVF
601

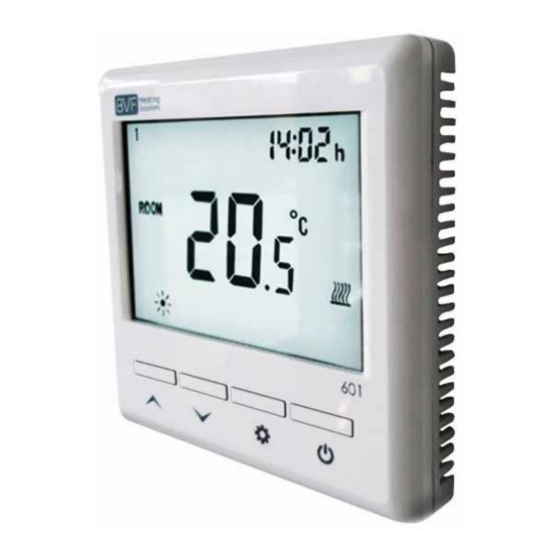

programmable room thermostat
Day Indicator
Period Icons
Comfort Mode
Energy-saving Mode
PRG Mode
Temp. up, Setting Button
Temp. down, Setting Button
Modes & Parameter Setting Button
Power Button
www.bvfheating.com
SPECIFICATION
Operating voltage:
Capacity:
Standby consumption:
Display:
External Sensor:
IP protection rating:
Housing:
Temperature settings:
Accuracy:
PRG options:
Housing dimensions:
Relay inst. dimensions:
230V AC, 50/60 Hz
3600W/16A
2W
LCD White backlight
NTC 10kΩ @ 20°C
IP 30
White ABS to UL94-5 fire
standard
5°C–80°C, 0.5°C
± 0.5°C
5+1+1, four cycles each day
86 mm × 88 mm × 18 mm
Ø 65 mm diameter, standard
Clock
Temp. display
Heating icon
Advertisement
Table of Contents
Related Manuals for BVF 601
Summary of Contents for BVF 601
-
Page 1: User Manual
User manual programmable room thermostat SPECIFICATION Operating voltage: 230V AC, 50/60 Hz Capacity: 3600W/16A Standby consumption: Display: LCD White backlight External Sensor: NTC 10kΩ @ 20°C IP protection rating: IP 30 Housing: White ABS to UL94-5 fire standard Temperature settings: 5°C–80°C, 0.5°C Accuracy: ±... - Page 2 User manual CLOCK & 5+1+1 PRG SETTING PRG function allows you to set different temperatures throughout the day. For example, you may want the home warm in the morning, cooler when you leave your home for the day, and then warmer in the evening when you return home. The thermostat offers 5+1+1 programming option, four different temperature levels for each day.
