Johnson Controls LX Series Technical Manual

TECHNICAL
TECHNICAL
GUIDE
GUIDE
TECHNICAL GUIDE
LX SERIES
SPLIT SYSTEM
HEAT PUMPS
16 SEER – R-410A – 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: TH6B18 THRU 60
®
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.simplygettingthejobdone.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Extended 10-Years limited parts warranty.
Standard 10-year limited compressor warranty.
Extended 10-Years limited parts warranty requires
online registration within 90 days of purchase for replacement
or closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
FOR INSTALLATION IN ALL US REGIONS AND CANADA
Installation Allowed

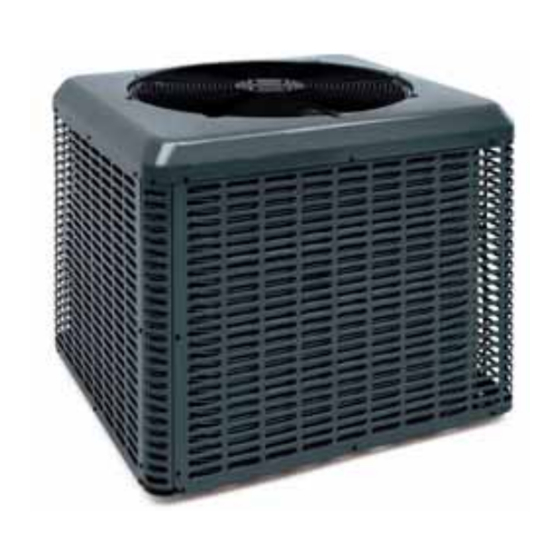

DESCRIPTION

The TH6B models are part of our successful LX Series split sys-
tem heat pump lineup. These outdoor units are optimized for
the new 16 SEER / 9.0 HSPF Minimum Efficiency in all US
Regions, and are specifically designed to be matched with resi-
dential indoor coils, furnaces, and air handlers to provide a
complete system solution.

FEATURES

• Easier Installation - Independent panels provide quick
access for unit setup. Installation time is reduced by easy
power and control wiring access. All models utilize TXV's.
The factory installed stainless steel filter-drier and factory
charge for a 15-Ft lineset means less time spent brazing and
charging the system. The small base dimension and reduced
unit clearances make for easier retrofits.
• Accessible Information - QR code on unit provides quick
access to technical documents and warranty information.
• Durable Finish - The coated steel wire fan guard, coated
external fasteners, and pre-treated G90-equivalent galva-
nized steel chassis components resist corrosion and rust
creep. Titanium colored powdercoat paint further protects
external panels.
• Rugged Coil Protection - Coils are protected from mechan-
ical damage by a proven extruded louver steel coil guard
design.
• Quality Coils - Enhanced aluminum fins are mechanically
bonded to copper tubing.
• Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high and low pressure
switches. The liquid line filter-drier is factory installed to pro-
tect the compressor against moisture and debris.
• Reliable Operation - Ball bearing fan motors provide supe-
rior performance in extreme temperatures. Factory installed
accumulator ensures proper functioning across a wide range
of conditions.
• Environmentally Friendly - CFC-free R-410A refrigerant
delivers environmentally friendly performance with zero
ozone depletion.
• Top Discharge - Warm air is blown up, away from the struc-
ture and any landscaping and allows compact location on
multi-unit applications.
• Low Operating Sound Levels - Developed using CFD and
FEA tools, the sturdy cabinet and top design provides sound
performance of 72 dBA or lower. Compatible accessories for
further sound reduction are also available.
• Better Service Access - Diagonal base valves with open
access for low-loss fittings, single panel access to the electri-
cal controls, full corner access, and removable fan guard
allow easy access for unit maintenance.
• Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.
5599020-BTG-F-0520
