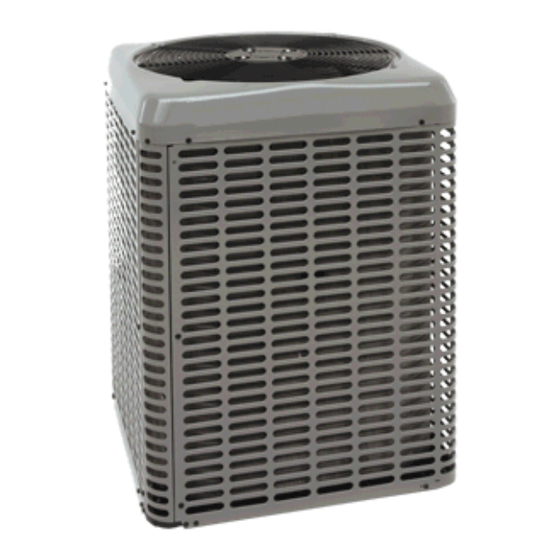

Technical Guide: LX Series TCD2B Models
- 13.4 SEER2 Split-System Air Conditioner -
Single-Phase
R-410A - 1.5 ton to 5 Nominal ton
York International Corporation, 5005 York
6268888-BTG-B-0823
Drive, Norman, OK 73069
Supersedes: 6268888-BTG-A-1122
2023-08-03
Johnson Controls Ducted Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX Series and is the answer not in the manual?

Questions and answers

ROBERT SANCARTIER
April 15, 2025

is a YCD24B23SA A 24 VOLT 2 WIRE , CONTROL WIRE UNIT . ( FROM THERMOSTAT . ) COLDNT FIND WIRE DIAGRAM ONLINE , THANKS .

0

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls LX Series

Summary of Contents for Johnson Controls LX Series

  • Page 1 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase R-410A - 1.5 ton to 5 Nominal ton York International Corporation, 5005 York 6268888-BTG-B-0823 Drive, Norman, OK 73069 Supersedes: 6268888-BTG-A-1122 2023-08-03 Johnson Controls Ducted Systems...
  • Page 2 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 3: Table Of Contents

    Multipliers for determining the performance with other indoor sections........79 Cool multiplier air handler - 1.5 ton....................79 Cool multiplier furnace - 1.5 ton......................80 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 4 Cool multiplier air handler - 4 ton....................134 Cool multiplier furnace - 4 ton......................135 Performance data - 5 ton..........................147 Condenser only performance data - 5 ton..................147 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 5 Multipliers for determining the performance with other indoor sections.........148 Cool multiplier air handler - 5 ton....................148 Cool multiplier furnace - 5 ton......................149 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 6 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 7: Description

    The warranty does not apply to R-22 models, three-phase models, or internet sales. See the limited warranty certificate in the User's Information Manual for details. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 8: Features

    Agency listed - Safety certified by CSA to UL 1995/CSA 22.2. Performance certified to ANSI/AHRI • Standard 210/240 in accordance with the Unitary Small Equipment certification program. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 9: Nomenclature

    Compressor type Compressor rated 11.7 14.7 15.9 19.5 22.2 load Compressor locked 33.0 53.0 71.3 75.0 112.3 130.0 128.0 rotor Crankcase heater Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 10: Physical And Electrical Data Notes

    ‡ The adapter fitting must be field installed for the required 1 1/8 in. refrigeration piping. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 11: Illustration Of Dimensions

    The overall height is from the bottom of the base pan to the top of the fan guard. • The overall length and width include screw heads. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 12: System Charge Table

    3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower time delay. 4. Do not use XAF/XAU coils in horizontal applications. Do not use XAH coils in upflow/downflow applications. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 13: Charging

    17.5 XAHB30C 24.00 17.50 15.00 12.50 TCD2B24S21S JMET12BS2N1 17.5 XAUB30C 24.00 17.60 15.00 12.50 TCD2B24S21S JMET12CS2N1 21.0 XAFC30C 24.00 18.70 15.00 12.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 14 42.00 33.60 14.25 12.20 TCD2B42S21S JMET18DS2N1 24.5 XAFD42E 1550 41.00 32.80 14.25 11.75 TCD2B42S21S JMET18DS2N1 24.5 XAFD48F 1575 41.00 32.60 14.25 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 15 55.50 39.00 14.00 11.75 TCD2B60S21S JMET18DS2N1 24.5 XAUD60H 1575 55.50 39.00 14.00 11.75 TCD2B60S21S JMVT16CC2N1 21.0 XAFC60G 1600 55.50 39.00 13.75 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 16: Air Handler Capacity Data Notes

    600—1000 24.00 18.10 13.50 11.50 TCD2B30S21S XAFA30D 14.5 800—1200 28.20 20.20 13.40 11.25 TCD2B30S21S XAFB30C 17.5 800—1200 1000 28.80 22.00 13.40 11.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 17: Coil Only Capacity Data Notes

    SEER2: requires a blower time delay unless a standard furnace is equipped with one. • A cell with no value means not applicable. • PSC furnaces use coil only ratings. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 18: Furnace Capacity - 1.5 Ton

    17.5 XAHB24B 18.00 13.40 14.50 12.25 TCD2B18S21S TM9E026A08MP12 17.5 XAFB24B 18.00 12.80 14.25 12.00 TCD2B18S21S TM9E026A08MP12 17.5 XAHB24B 18.00 12.80 14.25 12.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 19 14.5 XAUA24B 17.90 12.80 14.25 12.00 TCD2B18S21S TP9C080B12MP13C 17.5 XAFB18A 18.00 13.20 14.25 12.00 TCD2B18S21S TPLC060A12MP13C 14.5 XAFA18A 18.00 13.30 14.25 12.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 20 14.5 XAFA24B 18.00 13.20 14.50 12.25 TCD2B18S21S Z8ET060A12LMPS1S 17.5 XAFB18A 17.90 13.20 14.50 12.25 TCD2B18S21S Z8ET060A12LMPS1S 17.5 XAFB24B 17.90 13.30 14.50 12.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 21: Furnace Capacity - 2 Ton

    21.0 XAHC30C 23.80 17.30 14.50 12.25 TCD2B24S21S TM8E080B12MP11 17.5 XAUB30C 23.80 17.30 14.50 12.25 TCD2B24S21S TM8E080C16MP11 21.0 XAFC30C 24.00 17.20 14.75 12.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 22 14.5 XAUA24B 24.00 17.30 13.75 11.75 TCD2B24S21S TM9E026A08MP12 17.5 XAUB30C 23.80 17.60 14.25 12.20 TCD2B24S21S TM9E040A10MP12 14.5 XAFA24B 24.00 16.70 14.00 12.20 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 23 17.5 XAFB24B 23.80 16.70 13.75 11.75 TCD2B24S21S TM9Y040A10MP11 17.5 XAFB30C 23.80 16.20 14.25 12.00 TCD2B24S21S TM9Y040A10MP11 14.5 XAHA24B 24.00 16.80 13.75 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 24 17.5 XAFB24B 23.80 16.60 14.25 12.00 TCD2B24S21S TMLV060A12MP12C 17.5 XAFB30C 23.80 16.50 14.50 12.25 TCD2B24S21S TMLV060A12MP12C 14.5 XAHA24B 23.80 16.30 14.00 12.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 25 17.5 XAFB24B 23.60 16.20 14.00 11.75 TCD2B24S21S Z8ES060A12LMPS1 17.5 XAFB30C 23.80 16.70 14.50 12.00 TCD2B24S21S Z8ES060A12LMPS1 14.5 XAHA24B 23.40 15.90 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 26 21.0 XAFC30C 24.00 17.80 14.50 12.00 TCD2B24S21S Z8ES120C20LMPS1 21.0 XAHC30C 24.00 17.60 14.50 12.00 TCD2B24S21S Z8ES120C20SMPS1S 21.0 XAFC30C 24.00 17.80 14.50 12.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 27: Furnace Capacity - 2.5 Ton

    17.5 XAFB30C 29.00 21.20 14.25 12.00 TCD2B30S21S TM8E040A12MP11 17.5 XAFB36D 28.80 20.40 14.25 12.00 TCD2B30S21S TM8E040A12MP11 17.5 XAHB30C 28.60 20.60 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 28 17.5 XAHB30C 28.40 20.40 13.75 11.50 TCD2B30S21S TM8V080B12MP12C 21.0 XAHC30C 28.40 20.20 13.75 11.50 TCD2B30S21S TM8V080B12MP12C 21.0 XAHC36D 28.40 20.00 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 29 17.5 XAFB36D 28.40 19.70 14.00 11.75 TCD2B30S21S TM9E060B12MP12 21.0 XAFC30C 28.60 20.40 14.00 11.75 TCD2B30S21S TM9E060B12MP12 17.5 XAHB30C 28.40 20.00 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 30 21.0 XAHC30C 28.40 20.20 14.00 11.75 TCD2B30S21S TM9Y060B12MP11 21.0 XAHC36D 28.40 19.80 14.00 11.75 TCD2B30S21S TM9Y060B12MP11 17.5 XAUB30C 28.40 20.20 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 31 29.60 22.60 14.25 12.00 TCD2B30S21S TMLE100C20MP11 21.0 XAFC36D 1025 29.40 22.00 14.00 11.75 TCD2B30S21S TMLE100C20MP11 21.0 XAHC30C 1025 29.40 22.20 14.25 12.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 32 21.0 XAHC36D 28.40 20.00 13.75 11.50 TCD2B30S21S TPLC080B12MP13C 17.5 XAUB30C 28.40 20.20 13.75 11.50 TCD2B30S21S TPLC080B12MP13C 17.5 XAUB36D 28.40 20.00 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 33 21.0 XAFC30C 29.20 21.60 14.25 12.00 TCD2B30S21S Z8ES080C16SMPS1S 21.0 XAFC36D 28.40 19.90 14.25 12.00 TCD2B30S21S Z8ES080C16SMPS1S 21.0 XAHC30C 28.40 20.20 14.25 12.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 34 17.5 XAFB36D 28.60 20.40 14.25 12.00 TCD2B30S21S Z8ET080B12LMPS1S 21.0 XAFC30C 28.60 20.80 14.25 12.00 TCD2B30S21S Z8ET080B12LMPS1S 21.0 XAFC36D 28.60 20.40 14.25 12.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 35: Furnace Capacity - 3 Ton

    35.60 25.80 13.75 11.50 TCD2B36S21S TM8E040A12MP11 17.5 XAUB36D 1075 35.60 25.80 13.75 11.50 TCD2B36S21S TM8E060A12MP11 17.5 XAFB36D 1100 35.60 26.00 13.50 11.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 36 1075 35.40 25.60 14.00 11.75 TCD2B36S21S TM8E130D20MP11 24.5 XAHD42E 1050 35.20 25.40 14.00 11.75 TCD2B36S21S TM8V060A12MP12C 17.5 XAFB36D 35.20 24.80 14.00 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 37 1200 35.80 27.00 13.75 11.50 TCD2B36S21S TM8Y100C16MP11 21.0 XAUC42E 35.40 24.80 14.25 12.00 TCD2B36S21S TM8Y100C20MP11 21.0 XAFC36D 1000 35.40 25.00 14.50 12.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 38 35.20 25.00 13.75 11.50 TCD2B36S21S TM9V080B12MP12C 17.5 XAFB36E 1000 35.20 25.00 13.75 11.50 TCD2B36S21S TM9V080B12MP12C 21.0 XAFC36D 1000 35.20 25.00 14.00 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 39 35.60 26.20 13.75 11.50 TCD2B36S21S TMLE080B12MP11 21.0 XAHC36D 1100 35.60 26.00 13.50 11.25 TCD2B36S21S TMLE080B12MP11 21.0 XAHC42E 1100 35.60 26.20 13.50 11.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 40 35.60 25.60 14.00 11.75 TCD2B36S21S TMLV100C16MP12C 21.0 XAHC42E 1050 35.60 25.60 14.00 11.75 TCD2B36S21S TMLV100C16MP12C 24.5 XAHD42E 1050 35.20 25.40 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 41 1050 35.60 25.60 14.00 11.75 TCD2B36S21S TPLC100C16MP12C 24.5 XAHD42E 1050 35.20 25.40 13.75 11.50 TCD2B36S21S TPLC100C16MP12C 21.0 XAUC42E 35.20 24.40 14.25 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 42 35.80 27.00 13.75 11.50 TCD2B36S21S Z8ES080C20SMPS1S 21.0 XAHC42E 1225 35.80 27.20 13.75 11.50 TCD2B36S21S Z8ES080C20SMPS1S 24.5 XAHD42E 1250 36.00 27.40 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 43 35.40 25.40 14.25 11.75 TCD2B36S21S Z8ES120C20LMPS1 24.5 XAFD42E 1050 35.40 25.40 14.25 11.75 TCD2B36S21S Z8ES120C20LMPS1 21.0 XAHC36D 1025 35.00 25.00 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 44: Furnace Capacity - 3.5 Ton

    40.00 30.00 13.75 11.50 TCD2B42S21S TL8E080C16UH11 24.5 XAFD48F 1250 40.00 29.80 13.75 11.50 TCD2B42S21S TL8E080C16UH11 21.0 XAHC42E 1200 39.50 29.40 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 45 40.00 29.60 14.25 11.75 TCD2B42S21S TM8E100C16MP11 21.0 XAFC42E 1425 41.50 32.60 13.50 11.75 TCD2B42S21S TM8E100C16MP11 21.0 XAFC48F 1450 41.50 32.40 13.75 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 46 39.50 29.20 13.75 11.50 TCD2B42S21S TM8V100C16MP12C 21.0 XAUC48F 1200 40.00 29.20 14.00 11.75 TCD2B42S21S TM8V100C20MP12C 21.0 XAFC42E 1225 40.00 29.60 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 47 40.00 29.60 13.75 11.75 TCD2B42S21S TM9E080C16MP12 21.0 XAFC42E 1400 41.50 32.40 13.75 11.75 TCD2B42S21S TM9E080C16MP12 21.0 XAFC48F 1425 41.50 32.20 13.75 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 48 40.00 29.20 14.00 11.75 TCD2B42S21S TM9V100C16MP12C 21.0 XAUC42E 1200 40.00 29.40 14.00 11.75 TCD2B42S21S TM9V100C16MP12C 21.0 XAUC48F 1200 40.00 29.20 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 49 41.00 32.20 13.75 11.75 TCD2B42S21S TMLE080C16MP11 21.0 XAHC42E 1400 41.00 32.20 13.50 11.50 TCD2B42S21S TMLE080C16MP11 21.0 XAHC48F 1450 41.50 32.40 13.75 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 50 40.00 29.60 13.75 11.50 TCD2B42S21S TMLV100C16MP12C 24.5 XAFD48F 1200 40.00 29.20 14.00 11.75 TCD2B42S21S TMLV100C16MP12C 21.0 XAHC42E 1200 39.50 29.40 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 51 40.00 29.60 13.75 11.50 TCD2B42S21S TPLC080C16MP13C 24.5 XAHD48F 1200 40.00 29.20 14.00 11.75 TCD2B42S21S TPLC080C16MP13C 21.0 XAUC42E 1200 39.50 29.20 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 52 40.00 29.80 14.00 11.75 TCD2B42S21S Z8ES080C20LMPS1 21.0 XAHC42E 1225 39.50 29.40 14.00 11.75 TCD2B42S21S Z8ES080C20LMPS1 21.0 XAHC48F 1275 40.00 29.80 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 53 39.50 29.60 14.00 11.75 TCD2B42S21S Z8ES100C20SMPS1S 21.0 XAHC48F 1300 40.00 30.00 14.25 12.00 TCD2B42S21S Z8ES100C20SMPS1S 24.5 XAHD42E 1275 40.00 30.20 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 54 40.00 30.30 14.00 11.75 TCD2B42S21S Z8ET080C16LMPS1S 24.5 XAHD48F 1325 40.00 30.10 14.25 12.00 TCD2B42S21S Z8ET080C16LMPS1S 21.0 XAUC42E 1300 40.00 30.30 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 55: Furnace Capacity - 4 Ton

    48.00 34.40 14.00 11.75 TCD2B48S21S TL9E080C16UH11 21.0 XAFC60G 1475 47.00 33.80 13.40 11.00 TCD2B48S21S TL9E080C16UH11 24.5 XAFD60G 1475 47.00 33.80 13.50 11.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 56 47.00 33.80 13.50 11.25 TCD2B48S21S TM8E120C16MP11 24.5 XAFD60G 1475 47.50 34.00 13.75 11.50 TCD2B48S21S TM8E120C16MP11 21.0 XAHC48F 1450 47.00 33.60 13.50 11.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 57 47.00 32.20 14.25 12.00 TCD2B48S21S TM8V120C20MP12C 24.5 XAHD48F 1325 46.00 31.80 14.00 11.75 TCD2B48S21S TM8V120C20MP12C 21.0 XAHD60G 1325 47.00 32.20 14.25 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 58 46.00 32.00 13.75 11.50 TCD2B48S21S TM9E080C20MP12 21.0 XAHD60G 1350 47.00 32.60 14.00 11.75 TCD2B48S21S TM9E080C20MP12 21.0 XAUC48F 1350 46.00 32.00 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 59 47.00 32.80 14.00 11.75 TCD2B48S21S TM9V100C20MP12C 24.5 XAUD60G 1375 47.00 32.80 14.00 11.75 TCD2B48S21S TM9V120D20MP12C 24.5 XAFD48F 1400 47.00 33.00 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 60 47.50 33.00 14.25 11.75 TCD2B48S21S TMLE100C20MP11 21.0 XAUC48F 1375 46.50 32.40 13.75 11.50 TCD2B48S21S TMLE100C20MP11 21.0 XAUC60G 1400 48.00 33.60 14.25 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 61 47.00 33.20 13.75 11.50 TCD2B48S21S TP9C100C16MP13C 21.0 XAFC48F 1325 46.00 31.80 13.75 11.50 TCD2B48S21S TP9C100C16MP13C 21.0 XAFC60G 1375 47.00 32.80 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 62 46.00 31.60 14.00 11.75 TCD2B48S21S TPLC120C20MP12C 24.5 XAFD60G 1425 48.00 33.80 14.00 11.75 TCD2B48S21S TPLC120C20MP12C 21.0 XAHC48F 1325 46.00 31.80 14.00 11.75 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 63 47.50 35.20 13.75 11.50 TCD2B48S21S Z8ES100C16SMPS1S 21.0 XAFC48F 1600 47.00 34.80 13.50 11.25 TCD2B48S21S Z8ES100C16SMPS1S 21.0 XAFC60G 1600 48.00 35.40 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 64 47.50 34.80 13.75 11.50 TCD2B48S21S Z8ES120C20LMPS1 21.0 XAUC48F 1550 47.00 34.40 13.50 11.25 TCD2B48S21S Z8ES120C20LMPS1 21.0 XAUC60G 1575 47.50 34.80 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 65 47.00 33.10 13.75 11.50 TCD2B48S21S Z8ET120C20LMPS1S 24.5 XAHD48F 1575 47.00 34.60 13.50 11.25 TCD2B48S21S Z8ET120C20LMPS1S 21.0 XAHD60G 1575 47.50 34.90 13.75 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 66: Furnace Capacity - 5 Ton

    55.00 39.00 13.50 11.25 TCD2B60S21S TM8V120C20MP12C 21.0 XAFC60G 1525 55.00 38.50 13.50 11.00 TCD2B60S21S TM8V120C20MP12C 21.0 XAFC60H 1525 55.00 39.00 13.50 11.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 67 55.00 39.00 13.50 11.25 TCD2B60S21S TM9V100C16MP12C 21.0 XAUC60G 1525 54.50 38.50 13.40 11.00 TCD2B60S21S TM9V100C16MP12C 24.5 XAUD60G 1525 55.00 38.50 13.40 11.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 68 55.50 40.00 13.40 11.00 TCD2B60S21S TMLE120C20MP11 21.0 XAHC60H 1650 55.50 40.00 13.50 11.25 TCD2B60S21S TMLE120C20MP11 21.0 XAHD60G 1625 55.00 39.50 13.40 11.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 69 55.00 39.00 13.50 11.25 TCD2B60S21S TPLC120C20MP12C 24.5 XAFD60G 1525 55.00 38.50 13.50 11.25 TCD2B60S21S TPLC120C20MP12C 24.5 XAFD60H 1525 55.00 39.00 13.50 11.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 70 55.00 39.00 13.40 11.25 TCD2B60S21S Z8ES100C20LMPS1 24.5 XAUD60H 1600 55.00 39.50 13.50 11.25 TCD2B60S21S Z8ES100C20SMPS1S 21.0 XAFC60G 1600 55.00 39.00 13.40 11.25 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 71 54.50 38.50 13.50 11.50 TCD2B60S21S Z8ES130D20SMPS1S 24.5 XAFD60H 1775 56.00 41.50 13.75 11.50 TCD2B60S21S Z8ES130D20SMPS1S 21.0 XAHD60G 1750 56.00 41.00 13.50 11.50 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 72: Furnace Capacity Data Notes

    For rated condition information, see Air handler capacity data notes. • High-efficiency motor furnaces have blower off delay (BOD) standard. • PSC furnaces use coil only ratings. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 73: Applications And Accessories

    Remove before unit operation. Refer to the Price Pages or Source 1 SmartSearch for the correct cover for each application. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 74: Sound Power Rating

    • Units shall have two removable stamped steel coil guards for exterior coil access. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 75 Unit manufacturer shall provide a 10-year compressor warranty without a requirement for unit registration. • Unit manufacturer shall provide a 5-year parts warranty without a requirement for unit registration. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 76: Typical Installation

    Care must be taken to prevent ice from damaging the unit. Damage may occur from ice falling onto unit from a sloped roof or from a vertical drip line due to a partial overhang. Figure 4: Typical installation Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 77: Typical Field Wiring

    Typical field wiring Figure 5: Typical field wiring Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 78: Alternative Installation Clearances

    Increase capacity by 1% for each 2°F increase in subcooling. b. Decrease capacity by 1% for each 2°F decrease in subcooling. • Maximum recommended condensing temperature is 140°F. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 79: Cooling Performance Data - 1.5 Ton

    1.01 1.00 JHETB18BXXS2N1 — 1.00 1.01 0.90 JHVTB18BXXC2N1 — 1.00 1.05 0.90 JMET08BS2N1A XAFB18A 1.00 1.00 0.90 JMET08BS2N1A XAFB18A 1.00 1.04 0.90 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 80: Cool Multiplier Furnace - 1.5 Ton

    0.95 0.92 TM8E100B12MP11 XAFB18A 1.00 1.01 0.92 TM8E100B12MP11 XAFB24B 1.00 1.02 0.92 TM8E100B12MP11 XAHB24B 1.00 1.00 0.92 TM8V060A12MP12C XAFA18A 1.00 1.01 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 81 0.98 0.98 TM9Y060B12MP11 XAFB18A 1.00 1.05 0.94 TM9Y060B12MP11 XAFB24B 0.99 0.93 0.93 TM9Y080B12MP11 XAFB18A 0.98 0.93 0.92 TM9Y080B12MP11 XAHB24B 0.99 0.92 0.93 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 82 1.01 0.91 Z8ES040A12LMPS1 XAFB24B 0.99 1.02 0.91 Z8ES040A12LMPS1 XAHA18A 1.00 1.01 0.92 Z8ES040A12LMPS1 XAHA24B 1.00 1.01 0.92 Z8ES040A12LMPS1 XAHB24B 0.99 1.00 0.91 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 83 1.01 0.92 Z8ET060A12LMPS1S XAUA24B 1.00 1.00 0.92 Z8ET080B12LMPS1S XAFB18A 1.00 0.99 0.92 Z8ET080B12LMPS1S XAFB24B 1.00 1.01 0.92 Z8ET080B12LMPS1S XAHB24B 1.00 1.00 0.92 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 84: Performance Data - 2 Ton

    17.1 13.7 21.0 21.2 19.0 19.4 15.3 2.26 2.27 2.27 2.27 2.27 2.35 2.36 2.36 2.36 2.36 2.45 2.44 2.45 2.45 2.45 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 85: Cooling Performance Data Notes

    1.05 0.93 JMET16CS2N1A XAHC30C 1.01 1.05 0.91 JMVT12BC2N1A XAFB24B 1.01 0.99 0.93 JMVT12BC2N1A XAHB24B 1.01 0.98 0.93 JMVT12BC2N1A XAHB30C 1.01 1.01 0.91 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 86: Cool Multiplier Furnace - 2 Ton

    0.98 0.92 TM8E080B12MP11 XAFC30C 1.00 0.98 0.92 TM8E080B12MP11 XAHB24B 1.01 0.97 0.95 TM8E080B12MP11 XAHB30C 1.01 0.98 0.95 TM8E080B12MP11 XAHC30C 1.00 0.98 0.92 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 87 0.99 0.93 TM8Y080C16MP11 XAHC30C 1.01 0.99 0.93 TM8Y100C16MP11 XAFC30C 1.01 0.99 0.93 TM8Y100C16MP11 XAHC30C 1.01 0.99 0.93 TM8Y100C20MP11 XAFC30C 1.01 0.99 0.93 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 88 0.93 0.92 TM9V040A10MP12C XAHB24B 1.00 0.93 0.92 TM9V040A10MP12C XAHB30C 1.00 0.93 0.92 TM9V040A10MP12C XAUA24B 1.00 0.93 0.92 TM9V040A10MP12C XAUB30C 1.00 0.93 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 89 0.95 0.95 TMLE040A12MP11 XAHB24B 1.00 0.95 0.94 TMLE040A12MP11 XAHB30C 1.00 0.97 0.92 TMLE040A12MP11 XAUA24B 1.01 0.95 0.95 TMLE040A12MP11 XAUB30C 1.00 0.97 0.92 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 90 0.91 0.93 TP9C080B12MP13C XAHB30C 1.01 0.94 0.95 TP9C080B12MP13C XAHC30C 1.00 0.96 0.92 TP9C080B12MP13C XAUB30C 1.00 0.96 0.92 TP9C080C16MP13C XAFC30C 1.01 1.06 0.95 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 91 0.95 0.94 Z8ES060A12SMPS1S XAHA24B 0.98 0.90 0.94 Z8ES060A12SMPS1S XAHB24B 0.99 0.92 0.95 Z8ES060A12SMPS1S XAHB30C 1.00 0.94 0.94 Z8ES060A12SMPS1S XAUA24B 0.98 0.90 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 92 1.03 0.93 Z8ES120C20LMPS1 XAFC30C 1.01 1.01 0.95 Z8ES120C20LMPS1 XAHC30C 1.01 1.00 0.95 Z8ES120C20SMPS1S XAFC30C 1.01 1.01 0.95 Z8ES120C20SMPS1S XAHC30C 1.01 1.00 0.95 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 93: Performance Data - 2.5 Ton

    Increase capacity by 1% for each 2°F increase in subcooling. b. Decrease capacity by 1% for each 2°F decrease in subcooling. • Maximum recommended condensing temperature is 140°F. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 94: Cooling Performance Data - 2.5 Ton

    1.00 1.00 — XAHC30C 1.00 1.00 1.00 — XAHC36D 1.00 0.98 1.00 — XAUB30C 1.00 1.00 1.00 — XAUB36D 1.00 0.98 1.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 95: Cool Multiplier Furnace - 2.5 Ton

    0.94 0.97 TL9E060B12UH11 XAUB30C 1.00 0.96 0.98 TL9E060B12UH11 XAUB36D 0.99 0.94 0.97 TL9E080C16UH11 XAFC30C 1.01 0.98 0.95 TL9E080C16UH11 XAHC30C 1.01 0.97 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 96 1.01 0.96 TM8E100C20MP11 XAHC36D 1.03 1.00 0.96 TM8E120C16MP11 XAFC30C 1.01 0.97 0.95 TM8E120C16MP11 XAFC36D 0.99 0.94 0.95 TM8E120C16MP11 XAHC30C 1.01 0.97 0.95 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 97 0.90 0.92 TM8Y080B12MP11 XAUB30C 0.99 0.93 0.93 TM8Y080B12MP11 XAUB36D 0.99 0.90 0.92 TM8Y080C16MP11 XAFC30C 1.02 1.00 0.96 TM8Y080C16MP11 XAFC36D 1.01 0.97 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 98 0.93 0.94 TM9E100C20MP12 XAFC30C 1.02 1.00 0.96 TM9E100C20MP12 XAHC30C 1.02 1.00 0.96 TM9E100C20MP12 XAHC36D 1.02 0.98 0.96 TM9V040A10MP12C XAFB30C 0.98 0.91 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 99 0.99 0.97 TM9Y080C16MP11 XAHC36D 1.01 0.96 0.97 TM9Y100C16MP11 XAFC30C 1.01 0.99 0.97 TM9Y100C16MP11 XAHC30C 1.01 0.98 0.96 TM9Y100C16MP11 XAHC36D 1.01 0.96 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 100 1.00 0.96 TMLE120C16MP11 XAFC30C 1.01 0.97 0.95 TMLE120C16MP11 XAFC36D 0.99 0.94 0.95 TMLE120C16MP11 XAHC30C 1.01 0.97 0.95 TMLE120C16MP11 XAHC36D 1.01 0.95 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 101 0.93 0.94 TPLC080B12MP13C XAFB30C 0.99 0.92 0.96 TPLC080B12MP13C XAFB36D 0.99 0.91 0.96 TPLC080B12MP13C XAFC30C 0.99 0.92 0.96 TPLC080B12MP13C XAFC36D 0.97 0.90 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 102 0.95 0.93 Z8ES080B12LMPS1 XAHC36D 0.99 0.93 0.93 Z8ES080B12LMPS1 XAUB30C 0.99 0.95 0.93 Z8ES080B12LMPS1 XAUB36D 0.99 0.93 0.93 Z8ES080B12SMPS1S XAFB30C 0.99 0.95 0.93 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 103 0.91 0.92 Z8ES100C16SMPS1S XAHC36D 0.99 0.89 0.92 Z8ES100C20LMPS1 XAFC30C 0.99 0.91 0.92 Z8ES100C20LMPS1 XAFC36D 0.99 0.90 0.92 Z8ES100C20LMPS1 XAHC30C 0.99 0.91 0.92 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 104: Performance Data - 3 Ton

    XAHC36D 0.98 0.91 0.94 Performance data - 3 ton See the following tables for performance and multiplier data for the TCD2B36S21S unit. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 105: Condenser Only Performance Data - 3 Ton

    4.14 4.13 Cooling performance data notes • All capacities include indoor fan heat. kW values are for the system (outdoor + indoor). Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 106: Multipliers For Determining The Performance With Other Indoor Sections

    0.98 1.01 TL8E060A12UH11 XAUB36D 1.01 0.98 1.01 TL8E080C16UH11 XAFC36D 1.01 0.98 0.96 TL8E080C16UH11 XAFC42E 1.01 0.99 0.97 TL8E080C16UH11 XAFD42E 1.00 0.98 0.98 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 107 0.95 0.96 TM8E080C20MP11 XAHC42E 1.00 0.95 0.96 TM8E080C20MP11 XAHD42E 0.99 0.95 0.95 TM8E080C20MP11 XAUC42E 1.01 0.95 0.94 TM8E100B12MP11 XAFB36D 1.01 0.98 0.98 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 108 0.92 0.95 TM8V080C16MP12C XAFD42E 0.99 0.96 0.95 TM8V080C16MP12C XAHC36D 1.01 0.97 0.96 TM8V080C16MP12C XAHC42E 1.01 0.97 0.96 TM8V080C16MP12C XAHD42E 0.99 0.96 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 109 0.95 0.94 TM8Y100C20MP11 XAFD42E 0.99 0.94 0.95 TM8Y100C20MP11 XAHC36D 0.99 0.93 0.93 TM8Y100C20MP11 XAHC42E 1.00 0.94 0.94 TM8Y100C20MP11 XAHD42E 1.01 1.02 0.99 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 110 0.96 0.99 TM9V060B12MP12C XAFC36D 0.99 0.95 0.99 TM9V060B12MP12C XAFC42E 0.99 0.96 0.99 TM9V060B12MP12C XAHC36D 0.99 0.95 0.99 TM9V060B12MP12C XAHC42E 0.99 0.96 0.99 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 111 0.92 0.95 TM9Y100C16MP11 XAHC42E 1.01 0.98 0.98 TM9Y100C16MP11 XAUC42E 0.99 0.92 0.95 TM9Y100C20MP11 XAFC36D 0.99 0.92 0.95 TM9Y100C20MP11 XAFC42E 0.99 0.92 0.95 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 112 0.96 0.96 TMLE100C20MP11 XAHC36D 1.01 0.95 0.96 TMLE100C20MP11 XAHC42E 1.01 0.96 0.94 TMLE100C20MP11 XAHD42E 0.99 0.95 0.95 TMLE100C20MP11 XAUC42E 1.01 0.96 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 113 0.95 0.97 TP9C080C16MP13C XAFC36D 1.00 0.95 0.98 TP9C080C16MP13C XAFC42E 1.00 0.96 0.98 TP9C080C16MP13C XAHC36D 1.00 0.95 0.98 TP9C080C16MP13C XAHC42E 1.00 0.96 0.98 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 114 0.98 0.97 Z8ES040A12LMPS1 XAFB36D 0.99 0.95 0.97 Z8ES040A12LMPS1 XAFB36E 0.99 0.95 0.97 Z8ES040A12LMPS1 XAUB36D 0.99 0.95 0.97 Z8ES040A12SMPS1S XAFB36D 0.99 0.95 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 115 0.98 0.97 Z8ES100B12LMPS1 XAFC42E 1.00 0.98 0.98 Z8ES100B12LMPS1 XAHC36D 0.99 0.97 0.97 Z8ES100B12LMPS1 XAHC42E 1.00 0.98 0.98 Z8ES100B12LMPS1 XAUB36D 0.99 0.97 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 116 0.99 0.96 Z8ES120C16SMPS1S XAHD42E 1.01 1.01 0.97 Z8ES120C16SMPS1S XAUC42E 1.02 1.02 0.97 Z8ES120C20LMPS1 XAFC36D 0.99 0.95 0.95 Z8ES120C20LMPS1 XAFC42E 1.00 0.96 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 117 1.05 0.99 Z8ET120C20LMPS1S XAHC36D 1.01 1.04 0.99 Z8ET120C20LMPS1S XAHC42E 1.02 1.05 0.99 Z8ET120C20LMPS1S XAHD42E 1.02 1.05 0.99 Z8ET120C20LMPS1S XAUC42E 1.02 1.05 0.99 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 118: Performance Data - 3.5 Ton

    30.1 22.9 35.7 35.3 31.8 32.4 24.3 3.91 3.93 3.96 3.93 3.89 3.99 4.00 4.04 4.00 3.97 4.06 4.07 4.12 4.08 4.06 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 119: Cooling Performance Data Notes

    0.93 0.92 JMVT17CC2N1A XAHC42E 1.00 0.93 0.94 JMVT17CC2N1A XAUC42E 1.00 0.93 0.92 JMVT20DC2N1A XAFD48F 1.00 0.93 0.92 JMVT20DC2N1A XAHD48F 1.00 0.93 0.92 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 120: Cool Multiplier Furnace - 3.5 Ton

    1.04 1.01 TM8E080C16MP11 XAFC48F 1.04 1.03 0.99 TM8E080C16MP11 XAFD42E 1.02 1.03 0.98 TM8E080C16MP11 XAFD48F 1.02 1.03 0.98 TM8E080C16MP11 XAHC42E 1.02 1.03 1.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 121 0.94 0.96 TM8E120C20MP11 XAHC42E 1.00 0.94 0.96 TM8E120C20MP11 XAHC48F 1.00 0.94 0.96 TM8E120C20MP11 XAHD42E 1.00 0.95 0.96 TM8E120C20MP11 XAHD48F 1.00 0.94 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 122 0.94 0.96 TM8Y080C16MP11 XAFD48F 1.00 0.94 0.96 TM8Y080C16MP11 XAHC42E 1.02 1.01 0.98 TM8Y080C16MP11 XAHD42E 1.00 0.94 0.96 TM8Y080C16MP11 XAHD48F 1.00 0.94 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 123 0.94 0.94 TM9E080C20MP12 XAHC42E 1.02 1.06 0.96 TM9E080C20MP12 XAHC48F 1.00 0.94 0.94 TM9E080C20MP12 XAHD42E 1.00 0.94 0.96 TM9E080C20MP12 XAHD48F 1.00 0.94 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 124 0.97 0.95 TM9V100C20MP12C XAFD42E 1.01 0.97 0.93 TM9V100C20MP12C XAFD48F 1.00 0.94 0.96 TM9V100C20MP12C XAHC42E 1.02 0.98 0.95 TM9V100C20MP12C XAHC48F 1.00 0.94 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 125 0.94 0.96 TMLE080B12MP11 XAUC42E 1.00 0.96 0.96 TMLE080B12MP11 XAUC48F 1.00 0.94 0.96 TMLE080C16MP11 XAFC42E 1.04 1.04 1.01 TMLE080C16MP11 XAFC48F 1.04 1.03 0.99 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 126 0.95 0.96 TMLE120C20MP11 XAFC48F 1.00 0.94 0.96 TMLE120C20MP11 XAFD42E 1.00 0.96 0.96 TMLE120C20MP11 XAFD48F 1.00 0.94 0.96 TMLE120C20MP11 XAHC42E 1.00 0.94 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 127 0.96 0.93 TP9C100C16MP13C XAHC48F 1.00 0.93 0.96 TP9C100C16MP13C XAHD42E 1.01 0.95 0.93 TP9C100C16MP13C XAHD48F 1.00 0.93 0.96 TP9C100C16MP13C XAUC42E 1.00 0.94 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 128 0.94 0.96 TPLC120C20MP12C XAHC42E 0.99 0.94 0.97 TPLC120C20MP12C XAHC48F 1.00 0.94 0.96 TPLC120C20MP12C XAHD42E 1.00 0.95 0.98 TPLC120C20MP12C XAHD48F 1.00 0.94 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 129 0.97 0.99 Z8ES100B12LMPS1 XAFC48F 1.00 0.97 1.00 Z8ES100B12LMPS1 XAHC42E 0.99 0.96 0.99 Z8ES100B12LMPS1 XAHC48F 1.00 0.97 1.00 Z8ES100B12LMPS1 XAUC42E 0.99 0.97 0.99 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 130 0.92 0.95 Z8ES120C16LMPS1 XAFD42E 0.99 0.92 0.95 Z8ES120C16LMPS1 XAFD48F 0.99 0.92 0.95 Z8ES120C16LMPS1 XAHC42E 1.00 0.97 0.98 Z8ES120C16LMPS1 XAHC48F 0.99 0.92 0.95 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 131 0.96 0.94 Z8ET080C16LMPS1S XAHC42E 1.00 0.96 0.96 Z8ET080C16LMPS1S XAHC48F 1.00 0.96 0.94 Z8ET080C16LMPS1S XAHD42E 1.00 0.96 0.96 Z8ET080C16LMPS1S XAHD48F 1.00 0.96 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 132: Performance Data - 4 Ton

    54.6 3.07 51.2 3.45 47.6 3.87 43.8 4.35 70.4 2.24 66.8 2.49 63.2 2.77 59.6 3.10 55.8 3.47 52.0 3.90 47.9 4.37 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 133: Condenser Only Performance Data Notes

    1060 Btu/h per 1000 CFM per degree above the listed temperature and decreases by 1060 Btu/h per 1000 CFM per degree below the listed temperature. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 134: Cool Multiplier Air Handler - 4 Ton

    0.93 0.91 JMVT20DC2N1A XAFD60G 1.01 0.95 0.93 JMVT20DC2N1A XAHD48F 0.99 0.93 0.91 JMVT20DC2N1A XAHD60G 1.01 0.95 0.93 JMVT20DC2N1A XAUD60G 1.01 0.95 0.93 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 135: Cool Multiplier Furnace - 4 Ton

    0.98 0.98 TM8E080C16MP11 XAUC60G 1.01 0.99 0.97 TM8E080C16MP11 XAUD60G 1.01 0.99 0.97 TM8E080C20MP11 XAFC48F 1.00 0.96 0.96 TM8E080C20MP11 XAFC60G 1.02 0.99 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 136 0.95 0.93 TM8E120C20MP11 XAHD60G 1.01 0.96 0.93 TM8E120C20MP11 XAUC48F 0.98 0.93 0.92 TM8E120C20MP11 XAUC60G 1.01 0.96 0.93 TM8E120C20MP11 XAUD60G 1.01 0.96 0.93 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 137 0.99 0.96 TM8Y080C16MP11 XAFC48F 0.99 0.96 0.97 TM8Y080C16MP11 XAFC60G 1.01 0.98 0.97 TM8Y080C16MP11 XAFD48F 0.99 0.96 0.97 TM8Y080C16MP11 XAFD60G 1.01 0.98 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 138 0.96 0.95 TM9E080C20MP12 XAFD48F 0.99 0.95 0.93 TM9E080C20MP12 XAFD60G 1.01 0.96 0.95 TM9E080C20MP12 XAHC48F 0.98 0.94 0.94 TM9E080C20MP12 XAHC60G 1.01 0.96 0.93 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 139 0.95 0.94 TM9V100C16MP12C XAHD48F 0.98 0.93 0.94 TM9V100C16MP12C XAHD60G 1.00 0.95 0.94 TM9V100C16MP12C XAUC48F 0.98 0.93 0.94 TM9V100C16MP12C XAUC60G 1.00 0.96 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 140 0.96 0.96 TMLE080C20MP11 XAHC60G 1.00 0.94 0.92 TMLE080C20MP11 XAHD48F 1.00 0.96 0.96 TMLE080C20MP11 XAHD60G 1.02 0.98 0.96 TMLE080C20MP11 XAUC48F 1.00 0.96 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 141 0.98 0.96 TMLE130D20MP11 XAHD60G 1.02 1.00 0.96 TMLE130D20MP11 XAUD60G 1.02 1.01 0.96 TMLV100C16MP12C XAFC48F 0.99 0.96 0.97 TMLV100C16MP12C XAFC60G 1.00 0.96 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 142 0.94 0.96 TP9C100C20MP13C XAHD60G 1.00 0.96 0.96 TP9C100C20MP13C XAUC48F 0.98 0.93 0.94 TP9C100C20MP13C XAUC60G 1.00 0.96 0.94 TP9C100C20MP13C XAUD60G 1.00 0.96 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 143 0.99 0.96 Z8ES080C16LMPS1 XAFC48F 1.00 0.98 0.96 Z8ES080C16LMPS1 XAFC60G 1.01 1.00 0.95 Z8ES080C16LMPS1 XAFD48F 1.00 0.98 0.96 Z8ES080C16LMPS1 XAFD60G 1.01 1.00 0.95 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 144 1.02 0.98 Z8ES100C16LMPS1 XAUC60G 1.02 1.04 0.98 Z8ES100C16LMPS1 XAUD60G 1.01 1.03 0.97 Z8ES100C16SMPS1S XAFC48F 1.00 1.02 0.98 Z8ES100C16SMPS1S XAFC60G 1.02 1.04 0.98 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 145 1.00 0.96 Z8ES120C16SMPS1S XAHD60G 1.01 1.01 0.97 Z8ES120C16SMPS1S XAUC48F 1.00 0.99 0.96 Z8ES120C16SMPS1S XAUC60G 1.01 1.01 0.97 Z8ES120C16SMPS1S XAUD60G 1.01 1.01 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 146 1.04 0.98 Z8ET100C16LMPS1S XAHD48F 1.00 1.02 0.98 Z8ET100C16LMPS1S XAHD60G 1.02 1.04 0.98 Z8ET100C16LMPS1S XAUC48F 1.00 1.02 0.98 Z8ET100C16LMPS1S XAUC60G 1.02 1.04 0.98 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 147: Performance Data - 5 Ton

    Increase capacity by 1% for each 2°F increase in subcooling. b. Decrease capacity by 1% for each 2°F decrease in subcooling. • Maximum recommended condensing temperature is 140°F. Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 148: Cooling Performance Data - 5 Ton

    1.01 1.00 — XAHD60G 1.00 0.98 1.00 — XAHD60H 1.00 1.00 1.00 — XAUC60G 1.00 1.00 1.00 — XAUD60G 1.00 1.00 1.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...

  • Page 149: Cool Multiplier Furnace - 5 Ton

    1.00 1.00 TM8E100C20MP11 XAFC60H 0.99 0.98 0.97 TM8E100C20MP11 XAFD60G 0.99 0.98 0.97 TM8E100C20MP11 XAFD60H 0.99 0.98 0.97 TM8E100C20MP11 XAHC60G 0.99 0.98 0.99 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 150 1.00 1.00 TM8Y100C20MP11 XAHC60H 1.00 1.01 1.00 TM8Y100C20MP11 XAHD60G 1.00 1.00 1.00 TM8Y100C20MP11 XAUC60G 1.00 1.00 1.00 TM8Y100C20MP11 XAUD60G 1.00 1.00 1.00 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 151 0.98 0.99 TM9V100C20MP12C XAFD60G 0.99 0.98 0.99 TM9V100C20MP12C XAFD60H 0.99 0.98 0.99 TM9V100C20MP12C XAHC60G 0.99 0.98 0.99 TM9V100C20MP12C XAHC60H 0.99 0.98 0.99 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 152 0.98 0.97 TMLE120C20MP11 XAFC60G 1.00 0.98 1.00 TMLE120C20MP11 XAFC60H 1.00 0.99 0.98 TMLE120C20MP11 XAFD60G 1.00 0.99 0.98 TMLE120C20MP11 XAFD60H 1.00 0.99 0.98 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 153 0.99 0.98 TP9C120D20MP13C XAUD60G 1.00 0.99 0.98 TP9C120D20MP13C XAUD60H 1.00 0.99 0.98 TPLC100C20MP13C XAFC60G 0.99 0.95 0.99 TPLC100C20MP13C XAFC60H 0.99 0.96 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 154 0.96 0.97 Z8ES100C16LMPS1 XAHD60H 0.99 0.98 0.97 Z8ES100C16LMPS1 XAUC60G 0.99 0.96 0.97 Z8ES100C16LMPS1 XAUD60G 0.99 0.98 0.97 Z8ES100C16LMPS1 XAUD60H 0.99 0.98 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 155 0.95 0.94 Z8ES120C16SMPS1S XAHC60H 0.98 0.95 0.94 Z8ES120C16SMPS1S XAHD60G 1.00 1.02 0.98 Z8ES120C16SMPS1S XAHD60H 0.98 0.95 0.94 Z8ES120C16SMPS1S XAUC60G 0.98 0.95 0.94 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 156 0.98 0.97 Z8ET100C20LMPS1S XAFD60G 0.99 0.97 0.97 Z8ET100C20LMPS1S XAFD60H 0.99 0.98 0.97 Z8ET100C20LMPS1S XAHC60G 0.99 0.97 0.97 Z8ET100C20LMPS1S XAHC60H 0.99 0.98 0.97 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 157 0.96 Z8ET120C20LMPS1S XAHD60H 0.98 0.96 0.96 Z8ET120C20LMPS1S XAUC60G 0.98 0.96 0.96 Z8ET120C20LMPS1S XAUD60G 0.99 0.97 0.97   Z8ET120C20LMPS1S XAUD60H 0.98 0.96 0.96 Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase Johnson Controls Ducted Systems...
  • Page 158 Subject to change without notice. Published in U.S.A. Copyright © 2023 by Johnson Controls. All rights reserved. Johnson Controls Ducted Systems...

This manual is also suitable for:

Tcd2b18s21sTcd2b24s21sTcd2b30s21sTcd2b36s21sTcd2b42s21sTcd2b48s21s ... Show all

Table of Contents
