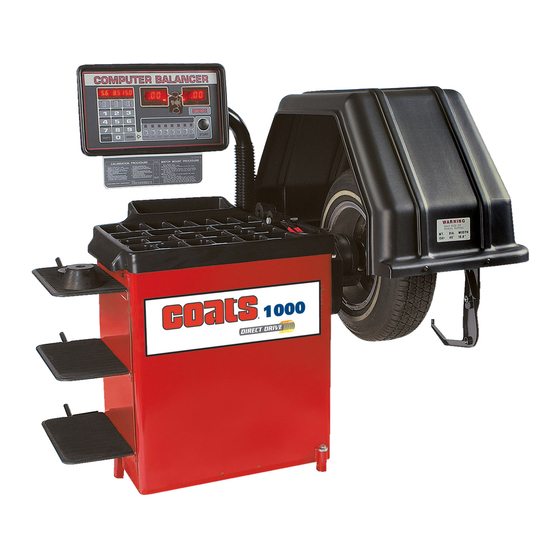

1000/1000D
Solid State
WHEEL BALANCER
1601 J. P . Hennessy Drive, LaVergne, TN USA 37086-3565 615/641-7533 800/688-6359
HENNESSY INDUSTRIES INC. Manufacturer of AMMCO
Installation Instructions
Operating Instructions
Safety Instructions
Maintenance Instructions
READ these instructions before placing unit in
service KEEP these and other materials delivered
with the unit in a binder near the machine for
ease of reference by supervisors and operators.
, COATS
and BADA
Automotive Service Equipment and Tools.
®
®
®
®
Manual Part No.: 8111868 07
Revision:
11/05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HENNESSY INDUSTRIES coats 1000
Summary of Contents for HENNESSY INDUSTRIES coats 1000

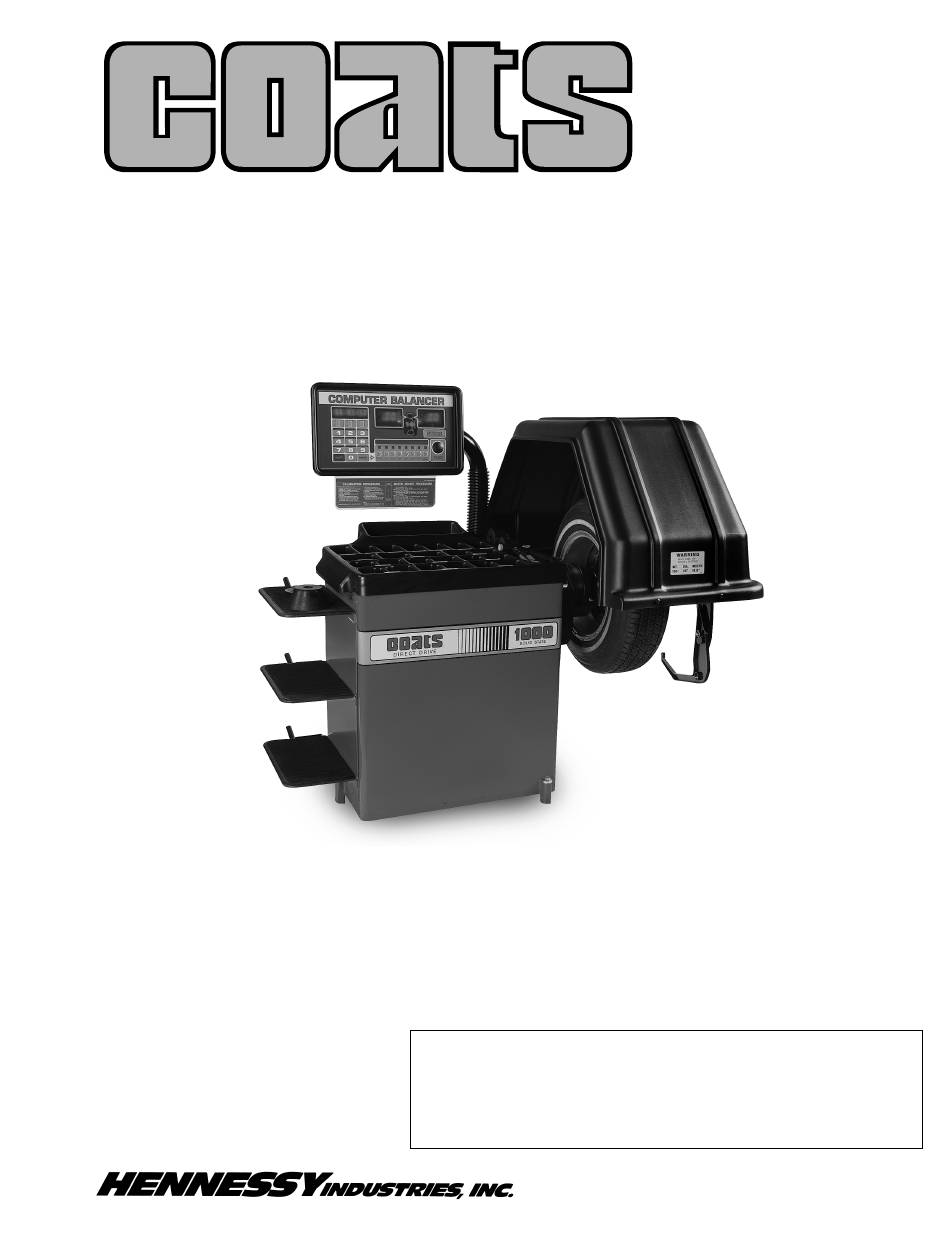

- Page 1 1601 J. P . Hennessy Drive, LaVergne, TN USA 37086-3565 615/641-7533 800/688-6359 Manual Part No.: 8111868 07 HENNESSY INDUSTRIES INC. Manufacturer of AMMCO , COATS and BADA Automotive Service Equipment and Tools.
- Page 2 Direct Drive ii • COATS 1000/1000D Wheel Balancer...
-
Page 3: Table Of Contents
Static ........11 Match Mount ......11 COATS 1000/1000D Wheel Balancer • iii... -
Page 4: Operator Protective Equipment
Hennessy Industries, Inc. 1601 J.P . Hennessy Drive LaVergne, TN 37086-3565 (615) 641-7533 or (800) 688-6359 NOTICE Read entire manual before assembling, installing, operating, or servicing this equipment. iv • COATS 1000/1000D Wheel Balancer... -
Page 5: Owner's Responsibility
• Do not override safety features. Watch for this symbol! It means BE ALERT! Your safety, or the safety of others, is involved! COATS 1000/1000D Wheel Balancer • v... -
Page 6: Important Safety Instructions
23. Use only manufacturer’s recommended attach- not be tripped over or pulled. ments. 9. Keep guards and safety features in place and in working order. SAVE THESE INSTRUCTIONS vi • COATS 1000/1000D Wheel Balancer... -
Page 7: Before You Begin
3-prong grounding plug to fit a Hubbell 2320 or Bryant grounding receptacle (not included). The receptacles should be installed by a qualified electrician in accordance with state and local codes. COATS 1000/1000D Wheel Balancer • 1... -
Page 8: Features
CAUTION Use help to remove the balancer from the pallet. The unit is heavy and the weight is not evenly distrib- uted. Dropping the unit may cause personal injury or equipment damage. 2 • COATS 1000/1000D Wheel Balancer... - Page 9 15. Hook the other end of the spring over the pin in the rear at Center of Slot of the hood stop bracket. Make sure the spring fits into the grove in the pin. Figure 5 - Slot on the Hood Bracket COATS 1000/1000D Wheel Balancer • 3...
- Page 10 Mount up to three side pock- ets or two peg brackets on the side or the rear. Contact your Hennessy Representative to order additional pockets or brack- ets. 4 • COATS 1000/1000D Wheel Balancer...
-
Page 11: Connecting Power
Note: Disregard a short spin cycle with HUB displayed on the control panel during this initial testing. 5. Raise the hood during a spin cycle to verify that the hood interlock system is functioning properly. COATS 1000/1000D Wheel Balancer • 5... -
Page 12: Balancer Operation Overview
The stop-on-top feature of the 1000D is designed to stop the spinning wheel with the outer weight application location near top-dead-center, if no imbalance is detected. 6 • COATS 1000/1000D Wheel Balancer... -
Page 13: Control Panel
Used only with Match- back on. Mount. Round Off - Toggles the balancer between the high accuracy mode (0.01-ounce increments) and the normal mode (0.25-ounce increments). Press and hold the SHIFT key, and press 6. COATS 1000/1000D Wheel Balancer • 7... -
Page 14: Mounting Wheels
Then lift the tire to seat the cone in the center hole. 4. Spin the hub nut (without the pressure cup) onto the arbor. Tighten it securely against the cone. Figure 11 - Front Cone Mounting 8 • COATS 1000/1000D Wheel Balancer... -
Page 15: Alternate Mounting
Secure the adapter/wheel to the faceplate using the thumbnuts. To properly center the wheel, tighten the thumbnuts in an alternating pat- tern while rotating the wheel. COATS 1000/1000D Wheel Balancer • 9... -
Page 16: Wheel Data Entry
Use the keypad to enter the measurement. It is now displayed above the wheel diameter key. The computer calculates the actual weight place- ment diameter. 10 • COATS 1000/1000D Wheel Balancer... -
Page 17: Selecting Balancing Mode
2 ounces on either plane of passenger car tires in the Dynamic mode. COATS 1000/1000D Wheel Balancer • 11... -
Page 18: Selecting Balancing Options
(typical- ly when metric or odd size wheel diameters are displayed). Press and hold the SHIFT key and press 4 to blank the dis- play. Repeat the key sequence to reactivate the display. 12 • COATS 1000/1000D Wheel Balancer... -
Page 19: Balancing A Wheel
Does not apply when switching to and from replace. Match Mount. 9. Imbalanced brake rotor(s) or drum(s). 10. Suspension out of alignment. Align the vehicle and replace any damaged or worn parts. COATS 1000/1000D Wheel Balancer • 13... -
Page 20: Match Mount
12. Lubricate both tire beads and wheel to aid in rotating the tire degrees on the and bead sealing and seating. Always use the tire manufacturer's wheel. approved rubber lubricant. 13. Rotate the tire 180° on the wheel. Figure 18 - Rotate Tire on Wheel 14 • COATS 1000/1000D Wheel Balancer... - Page 21 25. Remount the wheel on the balancer. 26. Use the MODE key to select the desired balance mode and balance the wheel. Figure 22 - Match Mount Completed COATS 1000/1000D Wheel Balancer • 15...
-
Page 22: Maintenance And Calibration
8. Raise the hood and remove the weight. and may damage the balancer. The balancer is now calibrated. If a mistake is made during this procedure, turn the balancer off, then back on, and start the procedure over again. 16 • COATS 1000/1000D Wheel Balancer... -
Page 23: Distance Gauge Calibration
11. Release the distance gauge and let it return to its stored position. The distance gauge is now calibrated. However, the wheel measurements displayed may vary by ±0.3 inches depending upon the condition of the rim. COATS 1000/1000D Wheel Balancer • 17... - Page 24 85009054 00 12/07 © Copyright 2007 Hennessy Industries and COATS All Rights Reserved Printed in USA...
