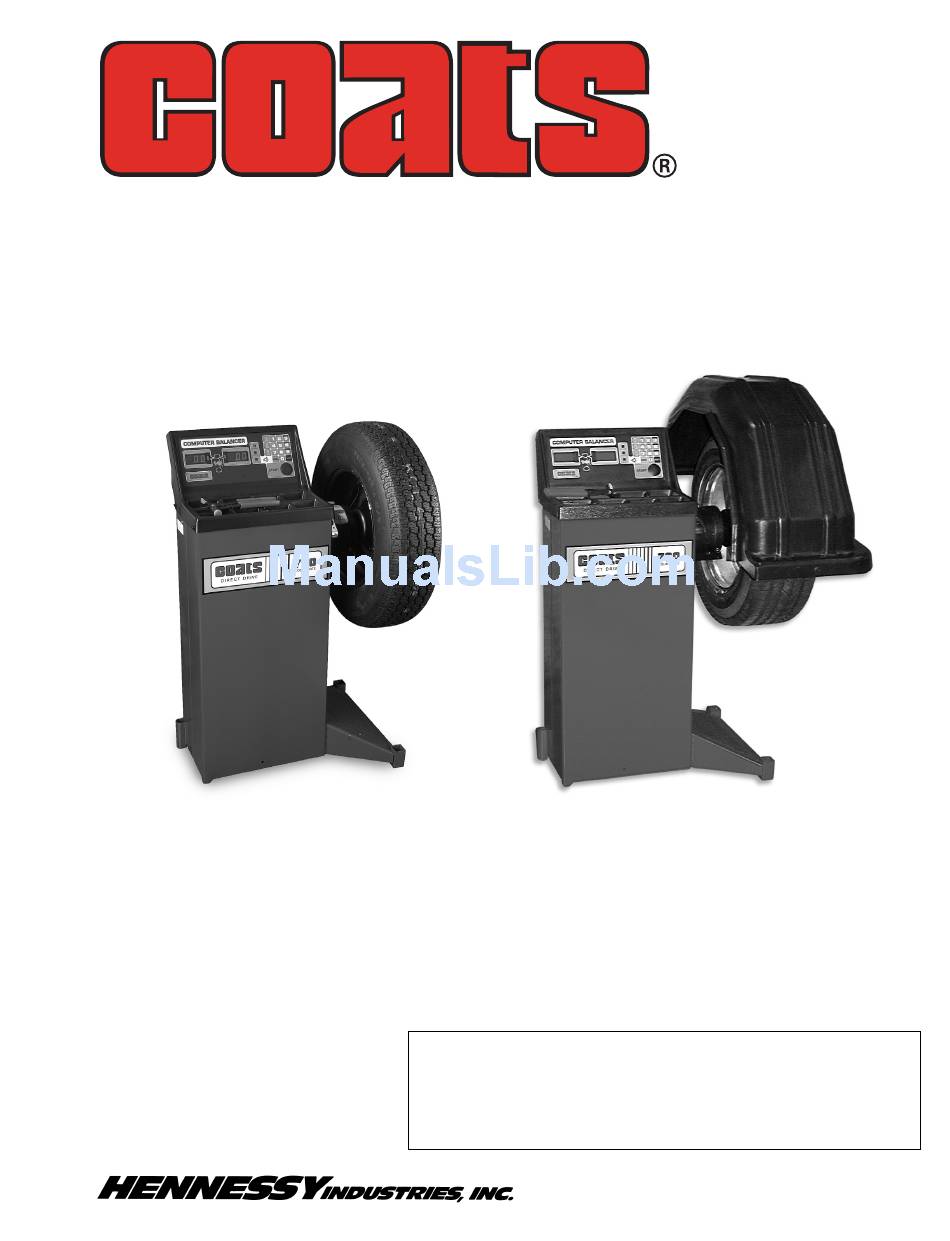

Solid state wheel balancer

Advertisement

700 Solid State
WHEEL BALANCER
1601 J. P. Hennessy Drive, LaVergne, TN USA 37086-3565 615/641-7533 800/688-6359
HENNESSY INDUSTRIES INC. Manufacturer of AMMCO
Installation Instructions
Operating Instructions
Safety Instructions
Maintenance Instructions
READ these instructions before placing unit in
service KEEP these and other materials delivered
with the unit in a binder near the machine for
ease of reference by supervisors and operators.
, COATS
and BADA
Automotive Service Equipment and Tools.
®
®
®
Manual Part No.: 8111807 06
Revision:
03/08
