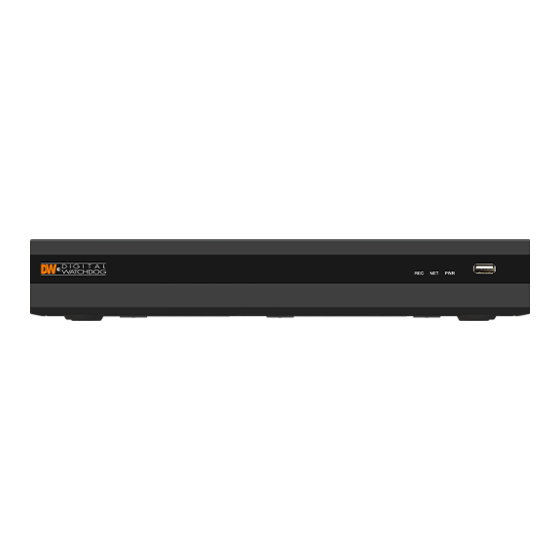

Digital Watchdog VMAX A1 G4 DW-VA1G44 Quick Start Manual

4-Channel 8-Channel
DW-VA1G44 DW-VA1G48
DW-VA1G442T DW-VA1G482T
DW-VA1G444T DW-VA1G484T
DW-VA1G446T DW-VA1G486T
DW-VA1G448T DW-VA1G488T
DW-VA1G4410T DW-VA1G4810T
DW-VA1G4412T DW-VA1G4812T
DW-VA1G4416T DW-VA1G4816T
DW-VA1G4820T
DW-VA1G4832T
When logging into the DVR for the first time, you will be prompted to set up a new password. The new
password must include a minimum 8 characters with at least four combinations of uppercase and lowercase
letters, numbers, and special characters.
WHAT'S IN THE BOX
DC 12V adapter and
power cable
Quick start guide
1 set (*4-channel models do
and download card
not come with power
cable)
USB mouse 1 Rubber mounts – 4pcs
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the 'Search by Product' search bar.
Results will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals and quick start guide (QSGs)
will appear in the results.
Attention: This document is intended to serve as a quick reference for initial setup. It is
recommended that the user read the entire instruction manual for complete and proper installation
and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
Quick Start Guide

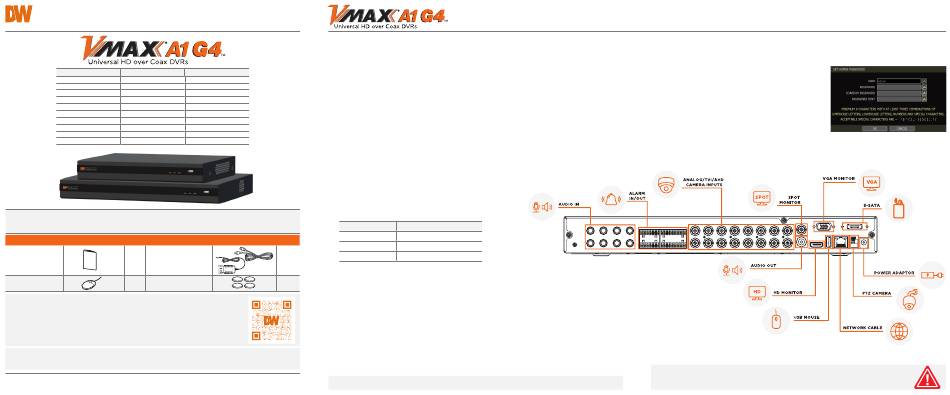

STEP 1 – CONNECTING THE DVR
1. Mount and install all necessary cameras and external devices. Refer to their individual
16-Channel
manuals for additional information.
DW-VA1G416
DW-VA1G4162T 2. The DVR supports the following analog signals:
DW-VA1G4164T
• HD-Analog
DW-VA1G4166T
DW-VA1G4168T
• HD-TVI
DW-VA1G41610T
• Standard analog signal up to 960H
DW-VA1G41612T
DW-VA1G41616T
The DVR supports cameras up to 5MP (4K for 8/16CH models). Refer to the product's data
DW-VA1G41620T
sheet and full manual for recording specifications per product.
DW-VA1G41632T
3. The DVR supports automatic signal detection. This means the DVR will detect the proper
signal automatically.
4. Place the DVR in its final position. See safety tips below.
5. Connect all necessary cables to the DVR.
6. Connect the DVR to an appropriate power supply.
The DVR will boot up automatically.
Model
DW-VA1G44
DW-VA1G48
DW-VA1G416
1 set
SAFETY TIPS
1 set
1. Make sure the cameras and the monitors are properly connected to the DVR.
2. The DVR should be placed in a dust and moisture free environment. It must never
be directly exposed to sunlight. A room temperature is highly recommended to reduce
the chance of overheating, (room temperature is considered as 68~78°F), which may
cause the DVR to become unstable.
3. During the boot up process, the DVR should not be interrupted by pressing any
buttons on the mouse. Do not unplug the power adapter or turn the DVR off during the
boot up process.
4. A UPS (uninterrupted power supply) is highly recommended to prevent damage to the
DVR during a power outage.
digital-watchdog.com
NOTE: HD Monitor output and VGA output cannot be used at the same time for dual monitoring.
Power consumption
DC12V, 24W, 2A
DC12V, 48W, 4A
DC12V, 48W, 4A
STEP 2 – POWERING UP THE DVR
When the DVR boots up, it will be in protective mode
and the password setup screen will appear.
1. Setup a new password. The password must be a
minimum of eight (8) characters with at least four
(4) combinations of uppercase letters, lower-case
letters, numbers, and special characters.
2. When the DVR boots up for the first time, you will be
guided through the startup wizard.
To prevent the DVR from overheating, do not operate it in an area that exceeds the maximum
recommended ambient temperature of 104°F (40°C). To prevent airflow restriction, allow
at least 3 inches (7.6 cm) of clearance around the ventilation openings.
Quick Start Guide
