Cabling the Chassis
For all caster base configurations, route the cables through the shrouds so
that all cables cascade down the side of the stack (Figure 7).
Use tie wraps to bundle the cables. Wrap excess cabling for the bottom
chassis around the shrouds if necessary. This completes the installation.
Your fully assembled unit should resemble the stack in Figure 7 and Figure 8.

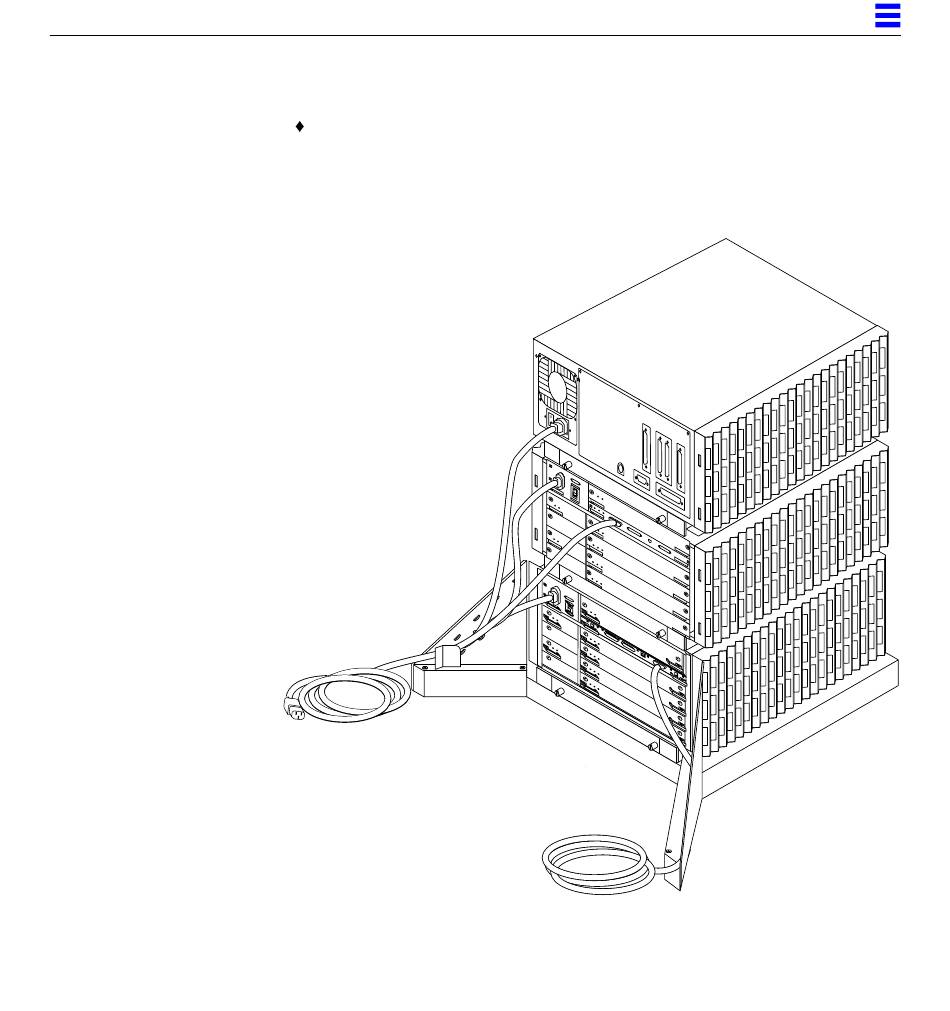

Figure 7
Assembling the Caster Base
Completed Caster Base (Rear View)
11
