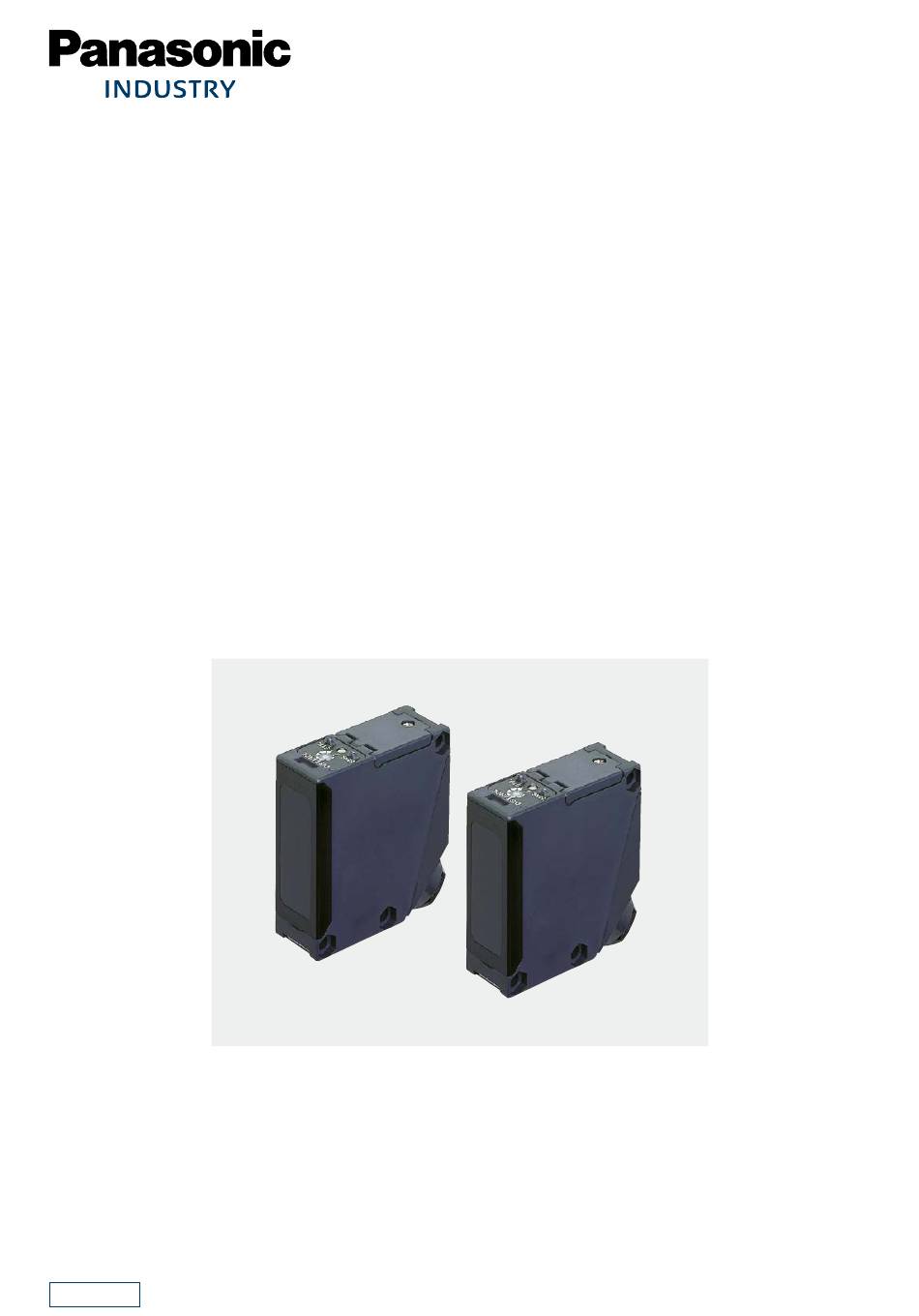

- Page 1 [Amplifier Built-in] [Multi-voltage] Adjustable Range Reflective Photoelectric Sensor EQ-500 SERIES * The contents of this catalog are as of October 2017. 2022.6 For the latest information, please visit our company website.
- Page 2 Adjustable Range Reflective Photoelectric Sensor Amplifier Built-in Multi-voltage EQ-500 SERIES Recognition Certified (Multi-voltege type only) Long range sensing capability to 2.5 m 8.202 ft Stable sensing unaffected by color or material Long sensing range Impervious to variations color or angle An adjustable range to 2.5 m 8.202 ft allows plenty of...
- Page 3 EQ-500 SERIES Adjustable Range Reflective Photoelectric Sensor APPLICATIONS Level check within the hopper Confirmation of the passage of packages on a conveyor belt The distance to the object can be set Can accurately detect packages even to enable residual amount sensing in if they vary in the hopper regardless of color.
-
Page 4: Order Guide
EQ-500 SERIES Adjustable Range Reflective Photoelectric Sensor ENVIRONMENTAL RESISTANCE Little affected by contamination on lens Waterproof Even if the lens surface gets The sensors features somewhat dirty from dust an IP67 rating to allow particles, there is very little their use in process change in the operation field, lines where water is by usage adjustable range... -
Page 5: Specifications
EQ-500 SERIES Adjustable Range Reflective Photoelectric Sensor SPECIFICATIONS Multi-voltage DC-voltage Type With timer With timer With timer With timer Item Model No. EQ-501 EQ-501T EQ-502 EQ-502T EQ-511 EQ-511T EQ-512 EQ-512T CE marking directive compliance Low Voltage Directive, EMC Directive, RoHS Directive EMC Directive, RoHS Directive Adjustable range (Note 2,3) 0.2 to 2.5 m... - Page 6 EQ-500 SERIES Adjustable Range Reflective Photoelectric Sensor I/O CIRCUIT AND WIRING DIAGRAMS EQ-501(T) EQ-502(T) I/O circuit diagram Terminal arrangement diagram Terminal No. Supply voltage 24-240 V AC ±10 % Multi-voltage circuit 12 to 240 V DC ±10 % Output relay Relay contact output (1a) Internal circuit...
-
Page 7: Precautions For Proper Use
EQ-500 SERIES Adjustable Range Reflective Photoelectric Sensor SENSING CHARACTERISTICS (TYPICAL) EQ-502 (T) EQ-512 (T) Correlation between material Sensing fields (200 × 200 mm 7.874 × 7.874 in) and sensing range • Setting distance: 0.5 m 1.640 ft • Setting distance: 1 m 3.281 ft White non- 2.625... -
Page 8: Part Description
EQ-500 SERIES Adjustable Range Reflective Photoelectric Sensor PRECAUTIONS FOR PROPER USE Wiring Part description • Check all wiring before applying power since incorrect Stability indicator (Green) wiring may damage the internal circuit. Also, carefully Distance adjuster (2-turn) OFF-delay timer adjuster (Note 2) tighten the terminal screws so that the wires of adjacent terminals do not touch. -
Page 9: Stability Indicator
Timer function (EQ-5□T only) Stability indicator • EQ-5□T incorporates an OFF-delay timer, which is • Since the EQ-500 series uses a 2-segment photodiode useful when the response of the connected device is as its receiving element, and sensing is done based slow, etc., and an ON-delay timer, which is useful for... - Page 10 Disclaimer The applications described in the catalog are all intended for examples only. The purchase of our products described in the catalog shall not be regarded as granting of a license to use our products in the described applications. We do NOT warrant that we have obtained some intellectual properties, such as patent rights, with respect to such applications, or that the described applications may not infringe any intellectual property rights, such as patent rights, of a third party. Panasonic Industry Co., Ltd. Industrial Device Business Division 7-1-1, Morofuku, Daito-shi, Osaka 574-0044, Japan industrial.panasonic.com/ac/e/ Specifications are subject to change without notice. ⓒ Panasonic Industry Co., Ltd. 2022.6 Printed in Japan...
