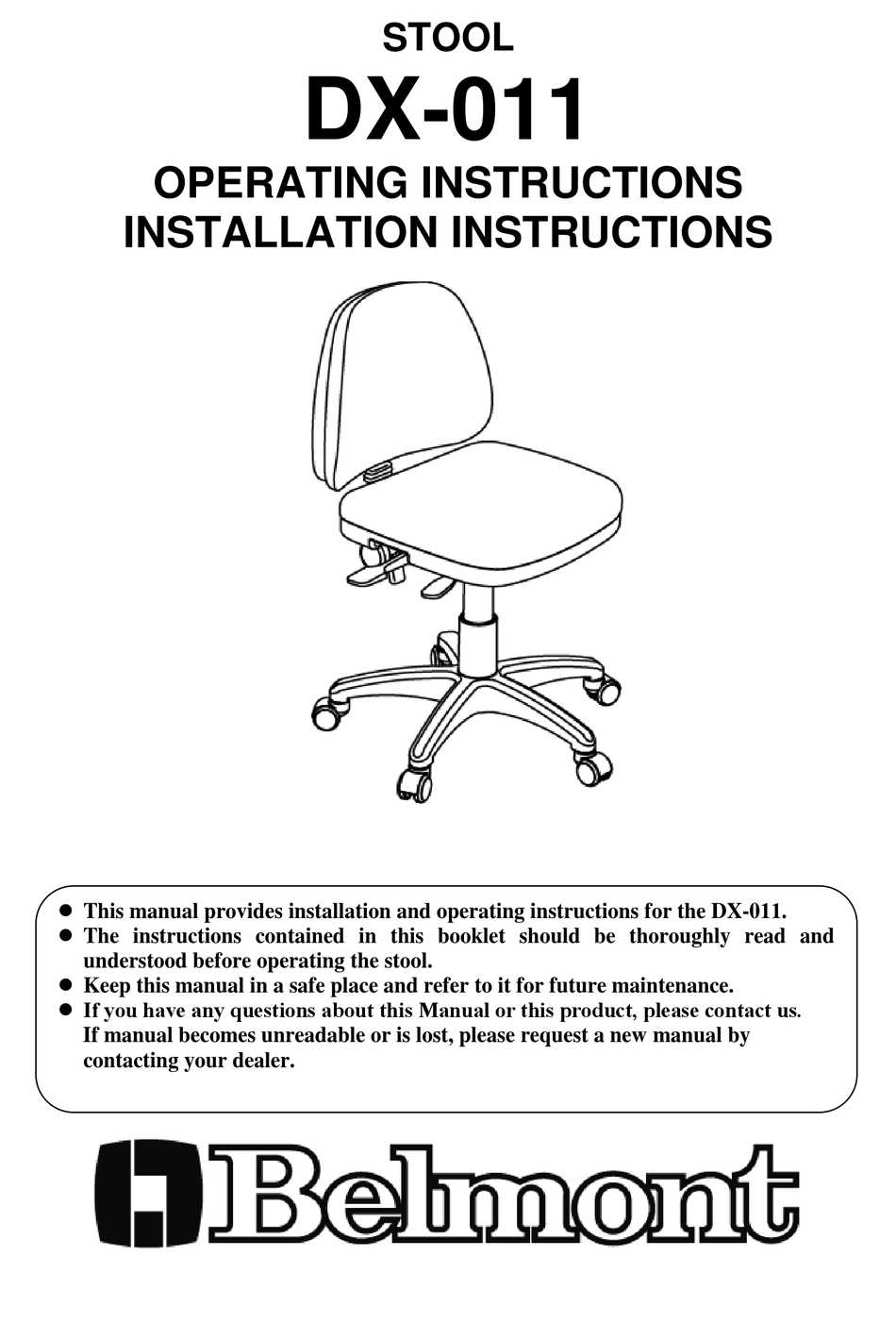

OPERATING INSTRUCTIONS
INSTALLATION INSTRUCTIONS
This manual provides installation and operating instructions for the DX-011.
The instructions contained in this booklet should be thoroughly read and
understood before operating the stool.
Keep this manual in a safe place and refer to it for future maintenance.
If you have any questions about this Manual or this product, please contact us.
If manual becomes unreadable or is lost, please request a new manual by
contacting your dealer.
STOOL
DX-011
IMPORTANT
Advertisement
Table of Contents
Related Manuals for Belmont DX-011
Summary of Contents for Belmont DX-011
- Page 1 OPERATING INSTRUCTIONS INSTALLATION INSTRUCTIONS IMPORTANT This manual provides installation and operating instructions for the DX-011. The instructions contained in this booklet should be thoroughly read and understood before operating the stool. Keep this manual in a safe place and refer to it for future maintenance.
-
Page 3: Table Of Contents
Table of Contents Important Notes Symbols Safety Precautions 1～2 Notice Overall View and Major Components Installation Instructions ■Checking the Packing・・・・・・・・・・・・・・・・・・・・ 4 ■Precautions for Installation・・・・・・・・・・・・・・・・・・ 4 ■Assembling the Stool・・・・・・・・・・・・・・・・・・・ Operating Instructions ■Lifting / Lowering Operation of Seat・・・・・・・・・・・・・・ 6 ■Reclining Operation of Backrest・・・・・・・・・・・・・・・・ 6 ■Adjustment the Height of Backrest・・・・・・・・・・・・・・・... -
Page 4: Important Notes
Attempts at disassembly, repair or modifications may lead to abnormal operation and accidents. Symbols The following symbols are used in labels or operating and installation instructions or installation instructions of DX-011. Please make sure the meaning of each symbol. Showing the... -
Page 5: Safety Precautions
Safety Precautions Before use, read the “Safety precautions” carefully to ensure proper use. The following information is designed to ensure safe use of this product and to prevent injury and damage to you and others. The precautions contained here are classified depending on the severity and degree of imminence of possible injury or damage resulting from improper use. - Page 6 Safety Precautions CAUTION 1. Do NOT operate the stool, other than the authorized staff Do not operate this product, other than dentist and a dental staff. 2. Be sure to check the operation before use Make sure that each part operates correctly and safely before use. 3.
-
Page 7: Notice
Notice CAUTION 1. Wipe off dirt and stains with soft cloths immediately Wipe off the adhering dirt and stains with the soft cloths with alcohols or detergent immediately. Do not use any volatile product as thinner, alcohol, gasoline, kerosene, or abrasive wax and abrasive sponges. -
Page 8: Overall View And Major Components
Overall View and Major Components BACKREST SEAT BACKREST BAR (WITH BELLOWS) KNOB GAS CYLINDER RECLINIG LEVER CYLINDER COVER LIFTING LEVER FIVE LEGGED BASE CASTER Installation Instructions ■ Checking the Packing Check the following parts and its quantity after unpacking the stool. 1. -
Page 9: Assembling The Stool
Installation Instructions ■ Assembling the stool Assemble the seat part (lower part of stool) and backrest part according to the following procedure. BACKREST PART SEAT PART (LOWER PART OF STOOL) BACKREST SUPPORT PIPE (WITH BELLWOS) ① Loosen the knob of reclining mechanism in a counterclockwise direction. -
Page 10: Operating Instructions
Operating Instructions Lifting/ Lowering Operation of Seat Lifting Operation Keep pulling up the lifting lever without any load on the seat to lift the seat up to the desired position during acting half rise from seat. LIFTING LIFTING LEVER LOWERING ... -
Page 11: Adjustment The Height Of Backrest
Operating Instructions ■ Adjustment the Height of Backrest ① Loosen the knob with holding BACKREST PART the backrest support pipe (with bellows) in a counterclockwise BACKREST SUPPORT direction. PIPE ② Sliding the backrest support pipe (WITH BELLWOS) up and down. Adjust the backrest to desired SEAT height. -
Page 12: Care And Maintenance
Care and Maintenance (Leather Part) Artificial leather Wipe the surface with soft and dry cloth gently. If the stain is hard to remove, wipe the surface clean using commercial leather cleaner or diluted neutral detergent (10%). Metal Part Wipe the surface with soft and dry cloth gently. -
Page 13: Dimensions And Specifications
Dimensions and Specifications * Values are the standard values. (Unit: mm) Dimensional tolerance: ±10% Forward 4° Backward 20° Specification Lifting & Lowering Mechanism------------------Gas cylinder, Manual operation Operation of Seat/Backrest------------------------Manual operation Seat, Backrest---------------------------------------Artificial leather Initial height-----------------------------------------470mm Seat stroke-------------------------------------------160mm Backrest stroke--------------------------------------95mm Backrest angle---------------------------------------Forward 4°～ Backward 20° Net weight-------------------------------------------10kg... - Page 14 NOTE...
- Page 15 NOTE...
- Page 16 NOTE BELMONT MANUFACTURING CO., LTD. (Manufacturer) Lot I-2, Long Duc Industrial Park, Long Duc Ward, Long Thanh District, Dong Nai Province, Vietnam TEL : ＋84-613-201-100 / FAX : ＋84-613-201-096 BOOK NO. 1E03TNDE Printed in Vietnam, 2017-11...
