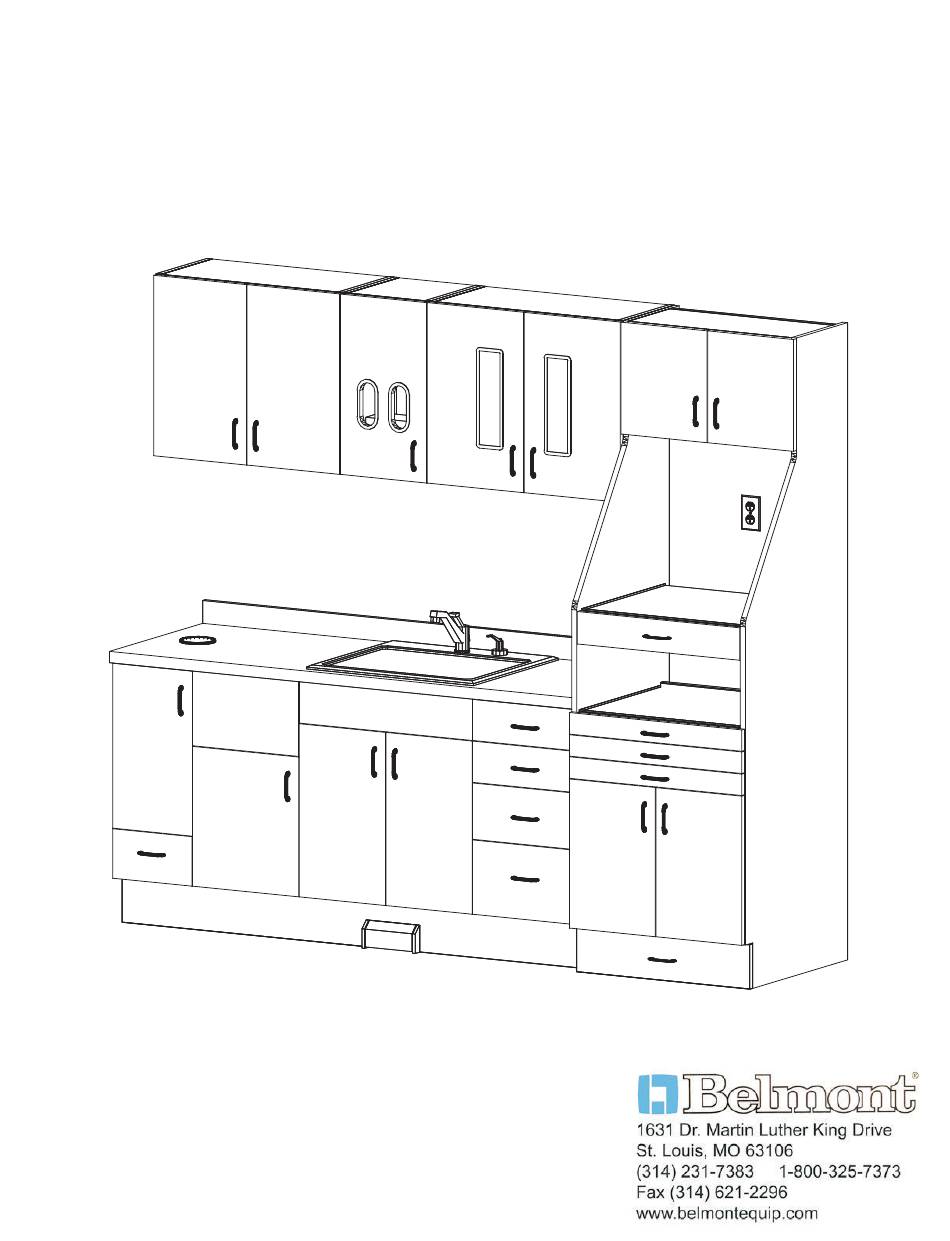

- Page 1 D-Series Dental Cabinetry System Installation Manual Model: D-96 Version: 04012013...
- Page 2 Model: D-96 Details Sterilization Center Configurations May Vary...
- Page 3 Model: D-96 Cabinetry Handling DO NOT Lift cabinet by the Ultrasonic pull-out when moving. See Figure A. Note: Remove any drawers to help reduce weight when moving cabinetry. Lift by gripping front & rear vertical edges of cabinet body. See Figure B. Figure A Figure B Figure C...
- Page 4 Model: D-96 Assembly Instructions Component Identification TB1234-24 USB1734-24 SB2634-24 B4D1634-24 Backsplash Kickplate (front and end) ST2684-26 W2824 WD1324 WT2924...
- Page 5 Model: D-96 Assembly Instructions NOTE: Assembly instructions are based on the standard D-96 Sterilization Center. Each site installation may contain a different combination of cabinetry but in general all installation guidelines are the same. Step 1 Confirm that the appropriate plumbing supply/drain and electrical rough-ins are in place. Step 2 Measure up 82”...
- Page 6 Model: D-96 Assembly Instructions Step 4 Hang remaining Wall Cabinets (K & L) (see Figure 3A). Secure Wall Cabinets together by inserting (4) Connectors through the (4) holes in each Wall Cabinet end panel and tightening with screw drivers (see Figure 3B). Figure 3B Figure 3A Step 5...
- Page 7 Model: D-96 Assembly Instructions Step 7 Mount the Leg Leveler (D3) to the Leg Leveler Base (D4) by inserting into the Leveler Base (D4) (see Figure 6A) IMPORTANT When a finished side toe-kick is used, the Leg Leveler Bases (D4) on that side must be removed and rotated 90°...
- Page 8 Model: D-96 Assembly Instructions Step 9 Place the cabinets (A thru D) into the proper location (using fillers where needed) (see Figure 8) . Using suppled #6 x 1-1/2” wood screws mount each lower cabinet to cabinet base with (4) wood screws each. Figure 8 Step 10 Secure Cabinets (A, B, C &...
- Page 9 Model: D-96 Assembly Instructions Step 11 Place Top (E) onto cabinets with the back edge flush with the wall and the right edge flush with the ST2684-26 Sterilization Cabinet (H) (see Figure 10). Secure the Top (E) to the cabinets by using #8 x 1-1/2”...
- Page 10 Model: D-96 Assembly Instructions Step 13 Install Kickplates (G1 & G2) by snapping clips onto legs. (see Figure 12). F R O C A B I I N E T N E T C A B E N D Figure 12 Step 14 Mount Sink (C1) to counter top per instructions within sink packaging (see Figure 13)
- Page 11 Model: D-96 Assembly Instructions Step 14 Insert Trash Chute (B1) into chute hole in counter top and place Trash Basket (B2) into the slide out basket holder in cabinet (B) (see Figure 16). Install the Soap Dispenser (C6) into the hole in the sink (see Figure 14). Figure 14 Step 16 Insert Shelf Supports (J2) into the holes in the interior end panels in the Wall Cabinet (J) then set each Glass Shelf (J3)
- Page 12 Model: D-96 Assembly Instructions Step 17 Insert Towel Dispenser (K3) and Cup Dispenser (K4) into proper openings in Wall Cabinet (K). Insert the Shelf Supports (K5) into the holes in the interior end panels then set the Shelf (K6) onto the Shelf Supports (see Figure 16). INWARD DIMPLES AT BOTTOM...
- Page 13 Adjustment Instructions for Concealed Hinges and Drawers Hinge Adjustment Adjustment for Drawer For Standard Doors 1 – Height adjustment: Loosen screws B slightly. Adjust screw A (adjustment +/- 2mm). Tighten screws.B 2 - Side adjustment: Loosen screws B slightly. Adjust front to required position (adjustment range +/- 1.5mm).
-
Page 14: Surface Cleaning
Surface Cleaning Ortho-Sys. ECO-Sys, D-Series, & E-Series Belmont Recommends: Countertop Magic® for Laminate and Solid Surface Work Surfaces • Stone Clean and Polish Magic® for Cambria Quartz Work Surfaces • Cabinet and Wood Magic® for Laminate and Melamine Surfaces •...
