Belmont E-7-DS Installation Instructions & Owner's Manual

E-series dental cabinetry
Hide thumbs

Advertisement

Quick Links

Download this manual

Installation Instructions

E-Series Dental Cabinetry
& Owners Manual
Model: E-7-DS / E-7-LS / E-7-RS
E-7-DS
1631 Dr. Martin Luther King Drive
Consumer: Please retain these instructions for future use.
St. Louis, MO 63106
(314) 231-7383
(888) 833-3682
Fax (314) 621-2296
www.belmontequip.com
Version: 04012013

Advertisement

loading
Need help?

Need help?

Do you have a question about the E-7-DS and is the answer not in the manual?

Questions and answers

Related Manuals for Belmont E-7-DS

Summary of Contents for Belmont E-7-DS

  • Page 1: Installation Instructions

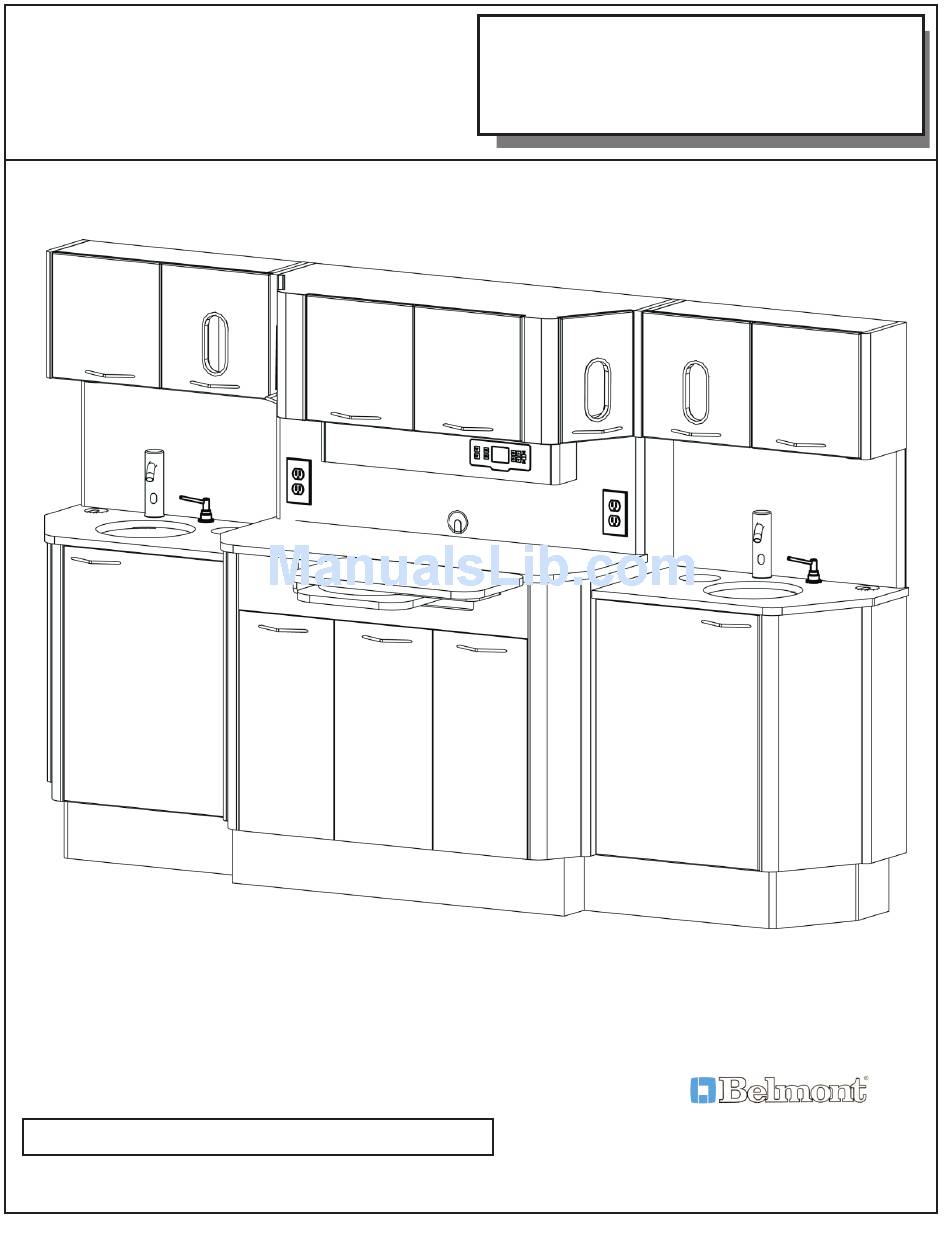

    Installation Instructions E-Series Dental Cabinetry & Owners Manual Model: E-7-DS / E-7-LS / E-7-RS E-7-DS 1631 Dr. Martin Luther King Drive Consumer: Please retain these instructions for future use. St. Louis, MO 63106 (314) 231-7383 (888) 833-3682 Fax (314) 621-2296 www.belmontequip.com...

  • Page 2: Handling Information

    General Cabinet Handling Information Models: E-7-(DS,LS,RS) DO NOT Lift cabinet by the counter top when moving. See Figure A. Note: Remove any drawers to help reduce weight when moving cabinetry. Lift by gripping lower edges of cabinet body just above the kick plate.
  • Page 3 Sliding Top Warning Model: E-7-(DS,LS,RS) Top View Top View When using work surface top, Do NOT use work surface top make sure it is in fully turned in this unsecure position. position and secured to the (Rotate it as shown in either direction) magnetic catch before using.
  • Page 4 Detail Drawings Model: E-7-DS...
  • Page 5 Detail Drawings Model: E-7-LS...
  • Page 6 Detail Drawings Model: E-7-RS...
  • Page 7 Detail Drawings Model: E-7-DS w/ Glass Bowl...
  • Page 8 Detail Drawings Model: E-7-LS w/ Glass Bowl...
  • Page 9 Detail Drawings Model: E-7-RS w/ Glass Bowl...
  • Page 10 Assembly Instructions Model: E-7-(DS,LS,RS) Model: E-7-DS Shown Component Identification Lower Cabinet Lower Cabinet Back Panel Lower Cabinet Upper Storage D Lower Sink Cabinet E Lower Sink Cabinet Splash F Lower Sink Cabinet Upper Storage Note: Back Panel (Item B) attached to...
  • Page 11 Assembly Instructions Model: E-7-(DS,LS,RS) Note: These instructions show only a Right Sink Cabinet being installed. The same steps will apply to attach a Left Sink Cabinet. If you have a DS model you will have Sink Cabinets at each ends. If you have an LS or RS model the Sink Cabinet will be either on the left end (LS) or right end (RS).
  • Page 12 Assembly Instructions Model: E-7-(DS,LS,RS) Step 4 Place Lower Cabinet Upper Storage (C) onto metal brackets located at the top of the Lower Cabinet sides. Line up the holes with in the metal brackets with the holes in the bottom of the Upper Storage (see Figure 3).
  • Page 13 Assembly Instructions Model: E-7-(DS,LS,RS) Step 5 (continued) Figure 4B BDS-2563 Install Arm and Holder System 1 - Locate mounting plate hole pattern under the sliding counter top and fasten the arm assembly to the underside using the 10-32 screws. 2 - Install the self-contained water system and route its umbilical to the utility center. Connect the water system tubing to their appropriate connections.
  • Page 14 Assembly Instructions Model: E-7-(DS,LS,RS) Step 7 The cabinet may now be moved into its final location and mounted to the floor. Mount the (4) Floor Mounting Brackets (A4) to the floor using proper fasteners for the floor being mounted to (see Figure 6). Figure 6 IMPORTANT Adjust the (4) Leveling Feet (A3) to level the cabinet using a...
  • Page 15 Assembly Instructions Model: E-7-(DS,LS,RS) Step 10 IMPORTANT Adjust the (4) Leveling Feet (D3) to level the cabinet using a 5mm allen wrench. Each Leveling Foot has access to the allen head through a hole in the bottom cabinet. (see Figure 9) Mount the Floor Mounting Bracket (D4) to the floor using proper fasteners for the floor being mounted to (see Figure 9).
  • Page 16 Assembly Instructions Model: E-7-(DS,LS,RS) Allen Wrench Step 13 Place Upper Storage (F) into position and secure to the Upper Storage (C) using (2) male/female 1/4-20 Connecting Bolts. From inside the Upper Storage (C) insert (2) Female Connectors (F1) and from inside the Upper Storage (F) insert (2) Male RS Model Connectors (F2) and tighten (see Figure 12).
  • Page 17 Assembly Instructions Model: E-7-(DS,LS,RS) Step 15 RS Model Make electrical connections per the E-7 Electrical Schematic As Shown & Instruction sheets. LS Model Do at Make plumbing connections including installation Left End of the faucet(s) and soap dispenser(s). If the E-7 w/ Glass DS Model Bowl option (see Figure 14) is being installed see separate Repeat at...
  • Page 18 Assembly Instructions Model: E-7-(DS,LS,RS) Step 18 Open the Lower Cabinet (A) doors and reinstall the Bottom Cover (A2) in each door section (see Figure 17). You may need to tilt the bottom covers to remove from door opening. Remount door handles from back side to front side on any doors with handles mounted on the inside face of the doors.
  • Page 19 Glass Bowl Installation Model: E-7 w/ Glass Bowl Option Step 1 Place Mounting Ring (A), Large Rubber Washer (B), Glass Bowl (C) aligned over the hole in the counter top. Insert the Drain Assembly (E) with the Small Rubber Washer (D) through the hole in the Glass Bowl. (see Figure 1).
  • Page 20 Water Bottle Mounting BDS-2561 / BDS-2563 BDS-2561 Model: E-7-(DS,LS,RS) Sliding Top Mount See Figure 1 Water bottle to be mounted to the underside of the sliding top. Align the center of the bottle BDS-2563 with the center of the mounting bracket of the BDS-2561 / BDS-2563.
  • Page 21 Electrical Schematic Model: E-7-DS...
  • Page 22 Electrical Schematic Model: E-7-LS...
  • Page 23 Electrical Schematic Model: E-7-RS...
  • Page 24 Clock / Timer Operation Model: E-7-(DS,LS,RS) Clock / Timer Operation The top display is the Time-of-Day clock. The bottom display is the TIMER. Normal operation: The ON/OFF buttons are used to power the relay output for x-ray viewer and task light. Press the SELECT button to select between TIMER1 and TIMER2.

  • Page 25: Electrical Parts List

    Electrical Parts List Model: E-7-(DS,LS,RS) Electrical Parts List 1.Junction box w/cover, galvanized steel. Overall dimensions, 4” long, 2 1/8” wide, 1 ½” deep, .07” thick and 4”long, 4 ¼” wide, 1 ½” deep .07” thick.. Secured to laminated particle board by screws. U.L. listed or equal. 2.#12-2 stranded aluminum armored cable U.L.

  • Page 26: Electrical Specifications

    Electrical Specifications Model: E-7-(DS,LS,RS) Electrical Specifications IMPORTANT NOTE: Approved electrical components and designs are used in the Quolis cabinet; however, the procedures described herein must be performed by a licensed electrician using approved methods and materials according to the local code governing the installation site. General Electrical Notes Each cabinet should be wired to a SEPARATE 15 Amp circuit.
  • Page 27 Hinge Adjustments Model: E-7-(DS,LS,RS) Hinge Adjustment Hinge Adjustment For Standard Doors For Angled Doors G-Force™ Controlled Closing Device...
  • Page 28 Drawer Assembly/Removal/Adjustments Model: E-7-(DS,LS,RS) Option Only...
  • Page 29 Floor Template Plumbing Details Model: E-7-(DS,RS,LS)
  • Page 30 Wall Templates Model: E-7-DS...
  • Page 31 Wall Templates Model: E-7-(LS,RS)
  • Page 32 Floor Template Model: E-7-DS...
  • Page 33 Floor Template Model: E-7-LS...
  • Page 34 Floor Template Model: E-7-RS...

  • Page 35: Surface Cleaning

    Surface Cleaning Ortho-Sys. ECO-Sys, D-Series, & E-Series Belmont Recommends: Countertop Magic® for Laminate and Solid Surface Work Surfaces • • Stone Clean and Polish Magic® for Cambria Quartz Work Surfaces • Cabinet and Wood Magic® for Laminate and Melamine Surfaces Stainless Steel Magic®...
