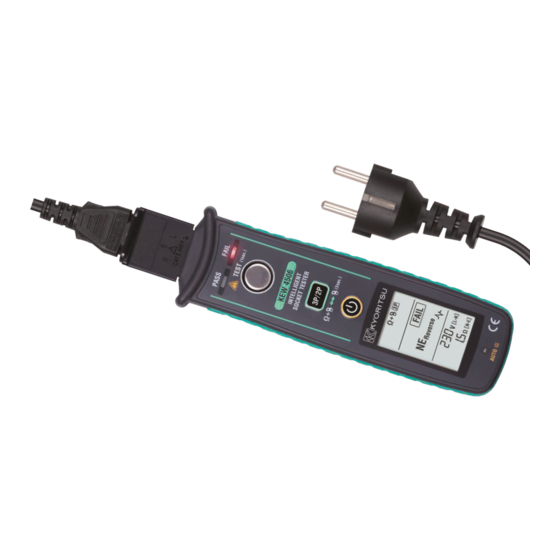

Intelligent socket tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

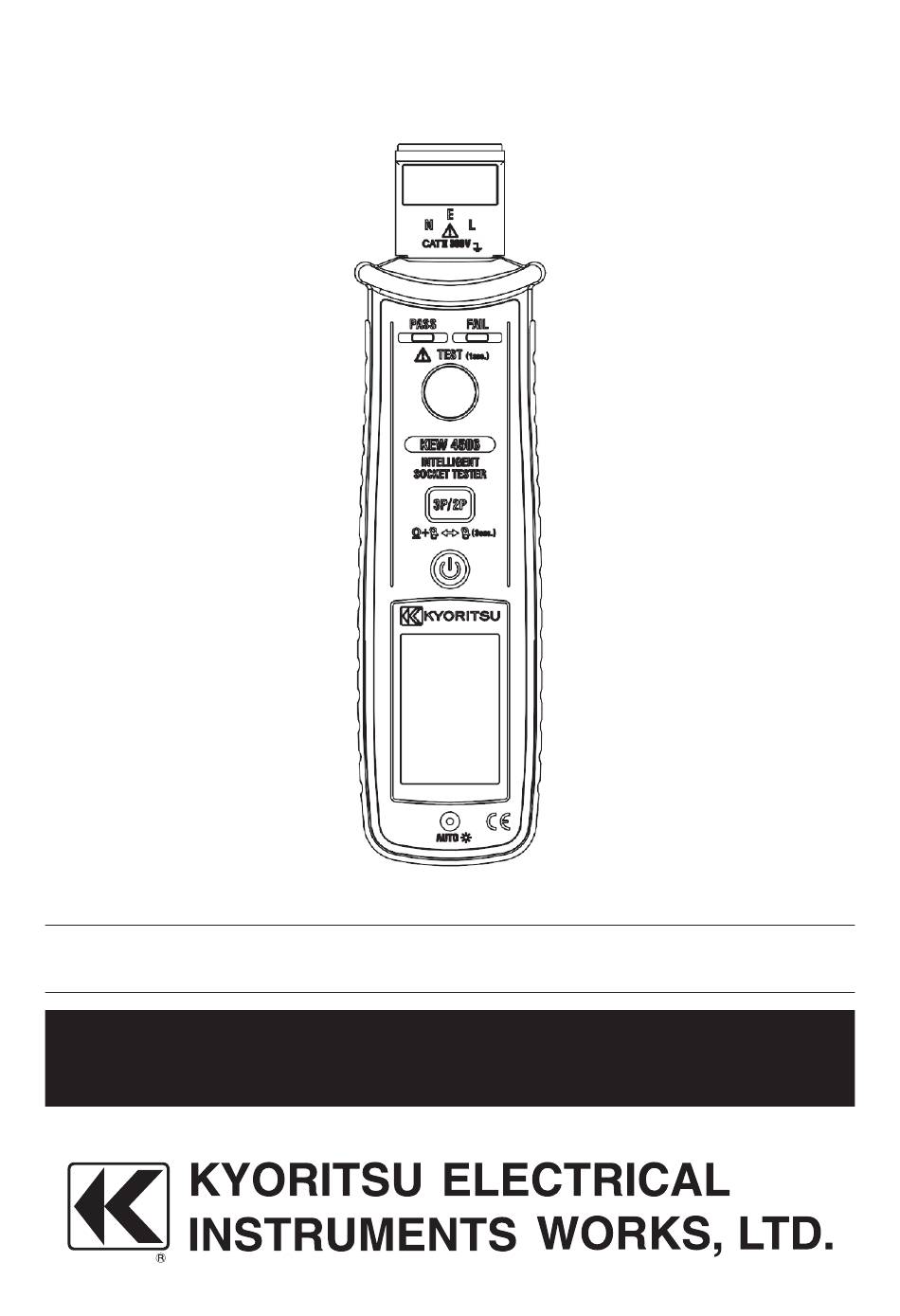

Instruction Manual
INTELLIGENT SOCKET TESTER
KEW 4506

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEW 4506 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kyoritsu Electrical Instruments Works KEW 4506

Summary of Contents for Kyoritsu Electrical Instruments Works KEW 4506

  • Page 1 Instruction Manual INTELLIGENT SOCKET TESTER KEW 4506...

  • Page 2: Table Of Contents

    Contents KEW 4506 1. Safety precautions   ................ 1 2. Features  .................... 5 3. Instrument layout   ................ 6 4. Accessories  .................. 9 5. Getting started   .................. 9 6. Socket test   .................. 10      6-1 Outlet with earth pole [3P]   ............  10        6-1-1 N-E wiring check based on resistances of earth wire (E)                and neutral wire (N)   ............ 11        6-1-2 N-E wiring check based on polarities of voltage signal                from signal source (KEW 8343)   ........ 12        6-1-3 Socket test procedures  ............13        6-1-4 Connection of KEW 8343 ..........15        6-1-5 How to use KEW 4506 ............25      6-2 2P outlet ..................

  • Page 3: Safety Precautions

    ● Understand and follow all the safety instructions contained in the manual. ● When using the optional KEW 8343 (Signal source) together with KEW 4506,read the instruction manual for KEW 8343 as well. It is essential that the above instructions are adhered to.
  • Page 4 # DANGER : is reserved for conditions and actions that are likely to cause serious or fatal injury. # WARNING : is reserved for conditions and actions that can cause serious or fatal injury. # CAUTION : is reserved for conditions and actions that can cause injury or instrument damage.
  • Page 5 - Measurement - ● Be careful not to short-circuit a power line with the metal tips of KEW 4506 during a measurement. It may cause personal injury. ● Do not exceed the maximum allowable input of any measuring range.
  • Page 6 # CAUTION ● Do not apply voltage to the tester while the tester is off. ● Do not attempt to operate the tester in dusty or wet place. ● Use the tester at a distance as far as possible from a strong magnetic field or energized objects.

  • Page 7: Features

    * 2P outlet. For 3P outlet, it is possible to test whether the outlet is correctly wired by using KEW 4506 together with KEW 8343 (signal source). It is applicable to integrated earthing systems with low resistances such as TN, building structure, and common earth systems.

  • Page 8: Instrument Layout

    Selects 3P or 2P. (“3P” is always on when ④ 3P/2P button powering on KEW 4506.) Powers on/ off KEW 4506 by holding down at ⑤ Power button least 1 second. With auto-backlight: turns on/ off automatically ⑥ LCD depending on the ambient brightness.
  • Page 9 (2) LCD 　　　 Fig. 3-2 　　　 Displayed segments and symbols Testable and selectable socket system: * “ ” blinks only when testing for the first time with default setting. Ready to detect test voltage Ready to measure N-E resistance Low battery warning Buzzer is disabled.
  • Page 10 Indicates the measured values are out of display range. L-N voltage > 290V : Measured value is over 290 V. < 80V : Measured value is less than 80 V. N-E resistance > 1999Ω: Measured value is over 1999 Ω. N-E voltage >...

  • Page 11: Accessories

    Before starting to use KEW 4506, check the following points. See “9. Battery replacement” in this manual and insert batteries. (1) Hold down power button 1 sec. to power on KEW 4506. A long press (1 sec. or longer) is required to power on the tester for safety purpose.

  • Page 12: Socket Test

    6. Socket test This tester is designed to perform wiring check for electrical outlet sockets: 2P and 3P. # DANGER ● This tester is rated to CAT II 300 V AC (max. voltage to ground). Do not test the circuits which exceed this rating: circuits in which 300 V or higher voltage to ground exists.

  • Page 13: N-E Wiring Check Based On Resistances Of Earth Wire (E)

    RE (RE1 + RE2) in Fig. 6-1 includes earth resistance; therefore, the resistance value is higher than the RN (resistance of a neutral wire). Compare the measured RE and RN and KEW 4506 judges as follows. RE > RN……[PASS], RE < RN……[NE Reverse]...

  • Page 14: N-E Wiring Check Based On Polarities Of Voltage Signal

    Note ● When testing 3P outlet, do not connect multiple KEW 4506 at the same time. If testing outlets wired from the same transformer simultaneously, correct judgement result may not be obtained. ● On the following wiring systems, resistance value isn’t used for judgment.

  • Page 15: Socket Test Procedures

    When testing wiring systems such as TT system, which has high total earth resistance (resistance between N-E is 2 Ω or higher), you just need KEW 4506 and measure resistances of earth pole (E) and neutral wire (N) to check N and E are wired properly.
  • Page 16 Line voltage test L-N voltage: ●/＊/＊ ＊ ● ＊/● ● L-E voltage: ●/＊/＊ ● ＊ ●/＊ ● N-E voltage: ●/＊/● ＊ ＊ ●/● ＊ Potential differences detected. Touch pad Touch pad test test No potential No potential differences. differences. L-E Reverse L-N Reverse Abnormal Volt.

  • Page 17: Connection Of Kew 8343

    6-1-4 Connection of KEW 8343 ！ To obtain accurate result: Clamp a neutral wire (N) with test voltage injection clamp observing the orientation shown below: arrow mark on the clamp shall be towards the outlet. Ensure that the transformer jaws are firmly engaged and closed.
  • Page 18 (phase difference) of the test voltage signal; therefore, if the orientation of test voltage injection clamp is incorrect, KEW 4506 judges as [NE Reverse] even if the tested socket is correctly wired. [NE Reverse] [correctly wired] Fig.
  • Page 19 KEW8343 Fig. 6-7 ● KEW 8343 and KEW 4506 (Socket tester) cannot perform socket test if they are connected to: * a live phase and in which one voltage phase is different from other phases in Three-phase 4-wire system (wye or delta connection).
  • Page 20 Power supply KEW8343 Fig. 6-9 Power supply KEW8343 Fig. 6-10 ̶  18  ̶...
  • Page 21 Single-phase 2-Wire Clamp the neutral wire (N) with test voltage injection clamp and black voltage detection cable to neutral wire (N) and red voltage detection cable to hot/live wire (L). KEW8343 Fig. 6-11 ̶  19  ̶...
  • Page 22 Single-phase 3-Wire Clamp the neutral wire (N) with test voltage injection clamp and black voltage detection cable to neutral wire (N) and red voltage detection cable to hot/live wire: either L1 or L2 correctly. Then you can test any 3P sockets which are connected to L1 or L2. Power supply Black KEW8343...
  • Page 23 Three-phase 3-Wire 200 V (delta connection, L2(S) grounded) Clamp the grounded L2(S) with the test voltage injection clamp and connect the black voltage detection cable to L2(S) and red voltage detection cable to a hot/live wire: either L1(R) or L3(T) correctly. Then you can test any 3P outlets which are connected to L1(R) or L3(T).
  • Page 24 Three-phase 4-Wire Clamp the neutral wire (N) with test voltage injection clamp and black voltage detection cable to neutral wire (N) and red voltage detection cable to hot/live wire: either L1(R), L2(S), or L3(T) correctly. Then you can test any 3P outlets which are connected to L1(R), L2(S), or L3(T).
  • Page 25 Depending on the orientation of the test voltage injection clamp, as explained with Fig. 6-5 at the previous clause, KEW 4506 may judge as [NE Reverse] even if the outlet is correctly wired as shown in Fig. 6-15 (outlet wired to branch circuit breaker [B]).
  • Page 26 Note ● When the test voltage injection clamp is connected close to the distribution board, KEW 4506 can test the outlet which is wired to branch circuit breaker [B] shown in Fig. 6-15 and judge as “PASS” (correct); however, it is NOT recommended to connect test voltage injection clamp to the position shown in Fig.

  • Page 27: How To Use Kew 4506

    Kyoritsu is by no means liable for any damage resulting from the use of commercially available power cord and test leads. ● KEW 4506 may not judge the wiring condition if test lead with IEC connector KAMP10 or MODEL 7284 is degraded and the internal resistances are extremely changed.
  • Page 28 # DANGER ● If earth wire of conversion adapter is connected to the earth terminal of the outlet, wear a pair of insulated gloves or other protective gears, and do not touch the earth terminal of the outlet to avoid electrical shock accident due to wiring error. # CAUTION ●...
  • Page 29 (3) Measurement Press the test button 0.5 sec. Press the button with bare hand since it works as touch pad. KEW 4506 starts measurement in 0.5 sec. with audible warning. The LCD shows “ ” during measurement. A measurement is done in about 1 sec.
  • Page 30 When KEW 4506 detects miswiring, any of the following indications is displayed on the LCD. See Fig. 6-20. In addition, red LED indicator lights up, as Fig. 6-21 shows, with continuous beep sounds. Fig. 6-20 L-N Reverse L-E Reverse N-E Reverse...
  • Page 31 8 V or higher and the tester cannot detect test voltage applied via signal source. When N-E voltage is 8 V or higher, KEW 4506 cannot measure resistance. ● Possible causes when test voltage from signal source cannot be detected: Check the signal source (KEW 8343) connected within a branch circuit breaker is NOT in the following status.

  • Page 32: Outlet

    ● Voltage warning If voltage of 253 V or higher is applied to any of the three terminals, KEW 4506 gives audible warning with blinking symbol and “V[L-N]” as shown in Fig. 6-22. Even while the tester is giving voltage warning, the tester can perform tests if voltages are 290 V or less.
  • Page 33 (2) Press button to select “2P”. Note ● Settings always restore to the ones for 3P socket whenever powering on the tester. ● If the earth terminal of the outlet to be tested is earthed at 2P test, the settings automatically change to the ones for “3P”. (3) Connection # CAUTION ●...
  • Page 34 Press the test button 0.5 sec. Press the button with bare hand since it works as touch pad. KEW 4506 starts measurement in 0.5 sec. with audible warning. The LCD screen will be like Fig. 6-23 when the wiring is correct.

  • Page 35: Settings

    1 µA. Note ● Use of signal source (KEW 8343) is required to conduct a test when N-E resistance measurement is disabled. ● Settings won’t be cleared by powering off KEW 4506. Holding down 3 sec. switches resistance measurement ON/ OFF.

  • Page 36: Buzzer And Backlight Settings

    7-2 Buzzer and backlight settings Buzzer and backlight function can be turned ON/ OFF respectively. See Fig. 7-2. (1) Power off KEW 4506 if it is on. (2) Press button 1 sec. with holding down button. Now the tester enters setting mode.

  • Page 37: Lcd Backlight

    2) Backlight OFF When “OFF” is selected and set, LCD Pi… backlight doesn’t turn on. The number of beeps when powering Buzzer sounds on the tester indicates the currently when powering on selected settings. the tester. ( No beep sounds when buzzer function Fig.

  • Page 38: Battery Replacement

    9. Battery replacement # DANGER ● Do not try to open the battery compartment cover if the surface of the tester is wet. ● Do not replace batteries during a measurement. ● The battery compartment cover must be closed and screwed before starting a measurement.

  • Page 39: Specifications

    10. Specifications ● Location for use : In-door use, Altitude up to 2000m 3P or 2P outlet with earth pole up to 253 V in Single-phase 2-Wire, Single-phase 3-Wire, Three-phase 3-Wire 200 V (delta connection, L2(S) grounded), Three-phase 4-Wire commercial power line ●...
  • Page 40 Power supply voltage 80 Vrms – 290 Vrms (50 Hz/ 60 Hz) * 290 V or higher voltage: KEW 4506 doesn’t start test even though the test button is pressed. * Voltages less than 80 V: Judged as abnormal voltage.
  • Page 41 Memo ̶  39  ̶...
  • Page 42 Memo ̶  40  ̶...
  • Page 44 DISTRIBUTOR Kyoritsu reserves the rights to change specifications or designs described in this manual without notice and without obligations. 09-22  92-2376...
