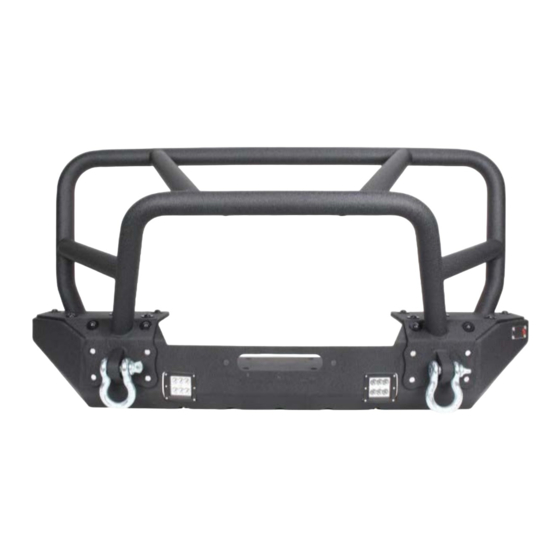

- Page 1 FB22005 Jeep® JK Wrangler Front Winch Bumper w/ Full Grille Guard REQUIRED TOOLS KIT CONTAINS 6mm Allen M10 Hex Bolt 16mm Wrench 16mm Socket M10 Button Head Screw 14mm Wrench M10 Hex Nut M10 Lock Washer M10 Flat Washer D-Rings...
- Page 2 FB22005 Jeep® JK Wrangler Front Winch Bumper w/ Full Grille Guard REMOVE YOUR FACTORY BUMPER INSTALL YOUR BOLT-ON GRILLE GUARD Begin by removing your factory bumper. Ensure you Using one (1) M10 bolt, one (1) M10 lock washer, disconnect your factory fog lights before you pull two (2) M10 flat washers, and one (1) M10 nut per your bumper away.
- Page 3 M10 flat washer, M10 lock washer, and M10 nut. light switch, you can splice these into your OEM fog Repeat this for all eight (8) bolts. light harness. Wire your winch according winch manufacturer’s instructions. ENJOY YOUR NEW FISHBONE OFFROAD BUMPER!
