Fronts
Rears
REQUIRED TOOLS
6mm Allen Key
13mm Socket
*5mm Allen Key
*10mm Socket
* For FB25034 only
1)
INSTALL FRONT GRAB HANDLES (FB25033 &
FB25034)
CAUTION:
These grab handles require using tools very close to
your windshield. Use extreme caution when
installing to ensure you do not damage your
windshield while installing. If needed, a piece of
cardboard can be used to help protect your
windshield from an accidental slip of the wrench.
On the passenger side, begin by removing the A-
pillar bolt and roof bolt shown:
FB25033:
Front Grab Handles Only
FB25034:
Front and Rear Grab Handles
KIT CONTAINS

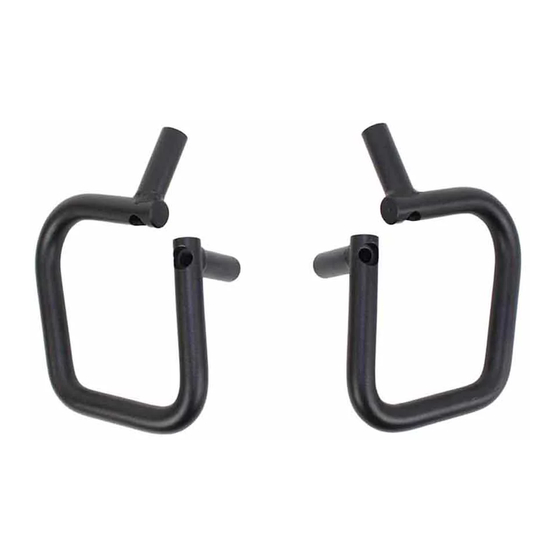

Front Grab Handle
M8 Bolt
*Rear Grab Handle
*M6 Bolt
*M6 Flat Washer
FB25033 & FB25034
Jeep® JK Wrangler
JK Grab Handles
NOTE:
The factory uses a thread sealant on these bolts. It is
best to run the supplied hardware in and out of the
holes a few times to clear the threads and make the
install easier.
QTY
2
4
2
4
4
2503300
Advertisement
Table of Contents
Related Manuals for Fishbone Offroad FB25033
Summary of Contents for Fishbone Offroad FB25033
- Page 1 *Rear Grab Handle *10mm Socket *M6 Bolt *M6 Flat Washer * For FB25034 only INSTALL FRONT GRAB HANDLES (FB25033 & FB25034) CAUTION: These grab handles require using tools very close to your windshield. Use extreme caution when installing to ensure you do not damage your windshield while installing.
- Page 2 Repeat steps on opposite side. ENJOY YOUR NEW FISHBONE OFFROAD GRAB HANDLES! Once both bolts have been loosely installed, tighten each one a few turns at a time until they are fully tightened.
