REQUIRED TOOLS
3/4" Socket
3/4" Wrench
5/8" Wrench

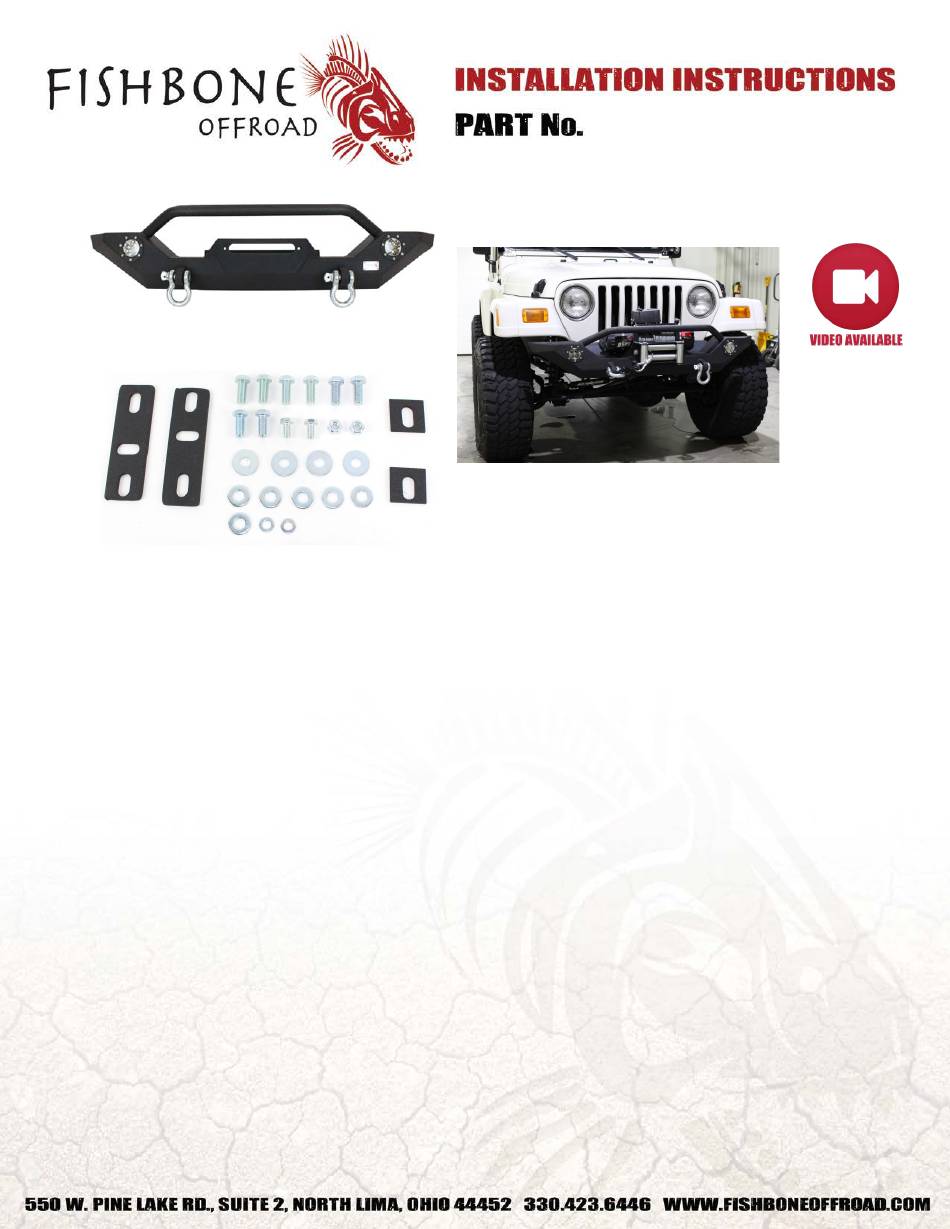

Jeep® YJ-TJ Wrangler 1987-2006
Front Winch Bumper w/ LED's
KIT CONTAINS
M10 Hex Bolt
M12 Hex Bolt
½" Hex Bolt
M12 Hex Nut
½" Flat Washer
M10 Flat Washer
M12 Flat Washer
Washer Plate (YJ only)
Support Plate (YJ only)
FB22016
QTY
2
2
6
2
6
2
4
2
2
2201600
Advertisement
Related Manuals for Fishbone Offroad FB22016
Summary of Contents for Fishbone Offroad FB22016
- Page 1 FB22016 Jeep® YJ-TJ Wrangler 1987-2006 Front Winch Bumper w/ LED’s REQUIRED TOOLS KIT CONTAINS 3/4" Socket M10 Hex Bolt 3/4" Wrench M12 Hex Bolt 5/8” Wrench ½” Hex Bolt M12 Hex Nut ½” Flat Washer M10 Flat Washer M12 Flat Washer...
- Page 2 FB22016 Jeep® YJ-TJ Wrangler 1987-2006 Front Winch Bumper w/ LED’s REMOVE YOUR FACTORY BUMPER Begin by removing your factory bumper. Ensure you Support plate mounting location: Use M12 hardware disconnect your factory fog lights (if equipped) before you pull your bumper away.
- Page 3 MOUNT YOUR D-RINGS RUN YOUR WIRING Wire in your new LED lights. To keep a more stock appearance, you can splice these into your OEM fog light harness. Wire your winch according winch manufacturer’s instructions. ENJOY YOUR NEW FISHBONE OFFROAD BUMPER! 2201600...
