REQUIRED TOOLS
Utility Knife
Rachet
19MM Socket
19MM Wrench
Thread Locker (Trim
dependent)
KIT CONTAINS
Foam Padding-Roll
Foam Padding-"L"
Foam Padding-Center Mounts
Arch Braces
Side Support Braces
Top Support Braces
Bed Channel Mount Brackets
M12 – 1.75 x 30mm Carriage Bolt
M12 – 1.75 x 50mm Carriage Bolt
M12 Washer 24mm OD
M12 – 1.75 Nyloc Nut
M12 – 1.75 x 60mm Hex Bolt
M12 – T Nut
M12 – 1.75 x 25mm Hex Bolt
M12 – Lock Washer
FB22150
Jeep® JT Gladiator
Tackle Rack
QTY
1
4
2
3
2
2
6
18
12
48
34
4
10
10
10
2215000
Advertisement
Table of Contents
Related Manuals for Fishbone Offroad FB22150
Summary of Contents for Fishbone Offroad FB22150

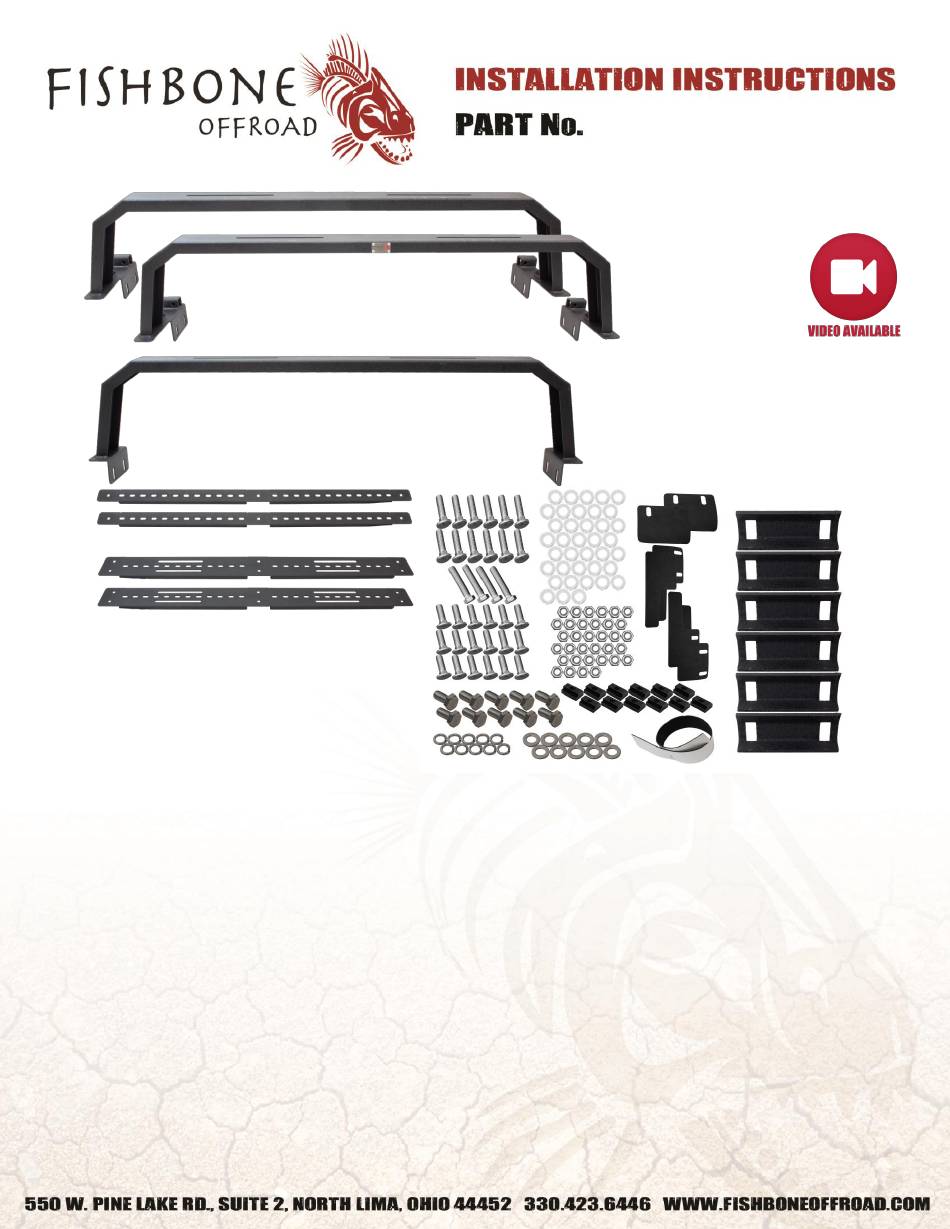

- Page 1 FB22150 Jeep® JT Gladiator Tackle Rack REQUIRED TOOLS KIT CONTAINS Utility Knife Foam Padding-Roll Rachet Foam Padding-“L” 19MM Socket Foam Padding-Center Mounts 19MM Wrench Arch Braces Side Support Braces Thread Locker (Trim Top Support Braces dependent) Bed Channel Mount Brackets M12 –...
- Page 2 FB22150 Jeep® JT Gladiator Tackle Rack PREPARE Prior to installation, apply the adhesive foam padding so that it covers any vehicle contact points, arch and support brace connections, or where you feel it’s needed. INSTALL TOP SUPPORT BRACES Start installing the two thinner support braces. With 6 of the 30mm bolts, washers, and nuts.
- Page 3 Use the included Hex bolts, lock washers, flat clamps onto the bed. Repeat for the remaining 5 washers, and thread locker and secure the Bed brackets. Rack down into the T Nuts. ENJOY YOUR NEW FISHBONE OFFROAD JT BED RACK! 2215000...
