Table of contents

1. Safety .......................................................... 3
2. Construction and function ........................... 3
3. Symbols ...................................................... 4
4. Transport and storage ................................. 4
5. Mounting ..................................................... 4
6. Electrical connection ................................... 7
7. Electrical connection in explosion hazardous
areas ..........................................................11

Safety

1.
Intended use
The sensor measures temperatures of liquids and
solids within the range of -50 ... 400 °C.
The sensor must only be used for media against
which the housing material and sensor tip are
resistant.
Staff qualification
Only use staff who are trained for the activities
described. This applies in particular to assembly,
installation, configuration and troubleshooting.
Make sure that the staff have read and understood
these instructions.
Electrical connection and EMC
All electrical wirings must comply with local
standards and connections must be made
according to the connection diagrams.

Construction and function

2.
2
3
www.baumer.com
Temperature measurement
CombiTemp™ TFRH/N
RTD temperature sensor
8. Configuration ..............................................13
9. Troubleshooting ..........................................14
10. Cleaning, maintenance and repair..............14
11. Disposal .....................................................14
12. Accessories ................................................14
13. Technical data ............................................15
14. Process conditions .................................... 16
15. Configuration overview ...............................17
Technical condition
Only use sensor in perfect technical condition.
Only use Baumer accessories.
Baumer will accept no liability for other
manufacturers' accessories.
Operation
The power supply and environmental conditions
must comply with the specifications of the device.
Before switching the device on and off, possible
effects on other equipment and the process run
must be checked.
Risk of burns from hot media
During operation the sensor housing may warm
up to over 50 ºC. When working with hot media
provide protection against burns.

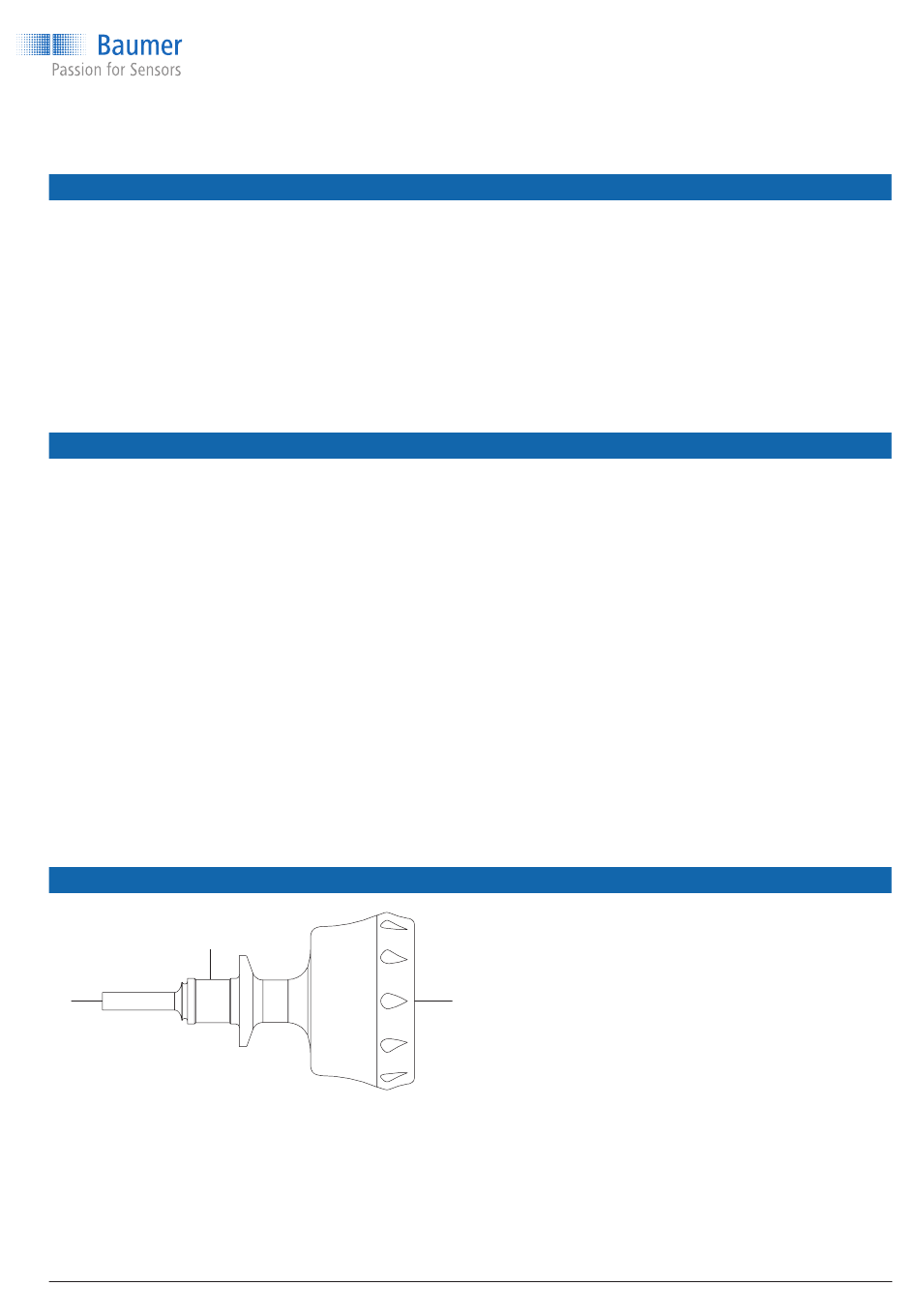

1 DFON display
2 Process connection
3 Sensor tip
1
The TFRH/N is a high-end programmable
temperature sensor based on RTD technology.
The output signal is a Pt100 signal that can be
transformed to a 4 ... 20 mA output signal if a
temperature transmitter is built-in. Depending on
the type of sensor, temperature measurements
from -50 ... 400 °C are possible.
Programming can be done via the touch screen
display or via the FlexProgram.
Operating Instructions 3 / 54
