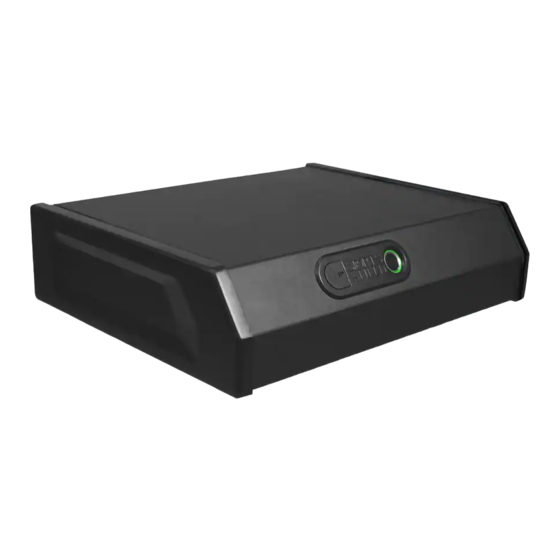

- Page 1 QUICK ACCESS BIOMETRIC SECURITY VAULT INSTRUCTION MANUAL FOR SA-HD6-BIO IMPORTANT: Please read this information and follow all safety rules carefully before operating your security vault. Failure to do so will void your warranty. 080322...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION ....................2 1. REGISTRATION ........................ 3 2. UNDERSTANDING YOUR VAULT ..................4 3. INITIAL ENTRY ........................5 4. BATTERY INSTALLATION....................5 5. PROGRAMMING YOUR FINGERPRINT ................6 6. OPENING VAULT WITH PROGRAMMED FINGERPRINT ............ 7 7. -
Page 3: Important Information
DISCLAIMER - READ BEFORE VAULT SETUP PLEASE READ THIS INFORMATION CAREFULLY BEFORE OPERATING YOUR SPORTS AFIELD VAULT. DO NOT LOCK THIS MANUAL OR THE OVERRIDE ACCESS KEYS IN YOUR VAULT. Thank you for choosing a Sports Afield vault to protect your valuables. We are committed to securing, organizing and protecting your most important documents, valuables and keepsakes. -
Page 4: Registration
1. REGISTRATION Register your vault at www.saproducts.com By registering your Sports Afield vault we will be able to expedite and address any problems or challenges you may have which would otherwise require a notary letter and proof of payment. REGISTRATION INFORMATION The information you record onto this page will be required in the event you cannot access the contents of your Sports Afield vault. -
Page 5: Understanding Your Vault
2. UNDERSTANDING YOUR VAULT Battery Compartment Reset Button Locking (inside) (inside) Latch LED Light (inside) Biometric Scanner Security Cable Port (on back panel) 3.7" 10.60" 12.60" Key Override Entry (Underneath Key Cover) INTERIOR OF FRONT PANEL Battery Compartment LED Light (4) AA Reset Button... -
Page 6: Initial Entry
3. INITIAL ENTRY LOCK UNDER KEY COVER 1. Locate the key cover and remove it by pressing down on the three raised lines. The cover will pop up on one side so that it can be removed. Insert the backup key. Turn and hold the key clockwise, and your vault door will automatically open. -
Page 7: Programming Your Fingerprint
5. PROGRAMMING YOUR FINGERPRINT 1. Inside of the vault, you will find a Battery reset button on the right side of Compartment LED Light the front panel. (4) AA Reset Button 2. Press the reset button to start the programming process. You will hear one beep and the indicator ring will illuminate on the front of the door . -
Page 8: Opening Vault With Programmed Fingerprint
6. OPENING VAULT WITH PROGRAMMED FINGERPRINT With keys in hand, close and lock the door. Place and hold the programmed finger on the scanner, indicator ring will illuminate green and vault door will open automatically. If your fingerprint is not accepted: Indicator ring will flash 1 time and sound 1 time. -
Page 9: Trouble Shooting
7. PROGRAMMING ADDITIONAL FINGERPRINTS (CONTINUED) HOLD FOR BEEP Press the reset button and follow Section 4 instructions again, for each fingerprint zone you would like to program. If you experience any problems LIFT FINGER reading your fingerprint, including inconsistent readings, note the area of your fingerprint that doesn’t work properly, and specifically re-program that area. -
Page 10: Lockout Mode / Tamper Protection
8. TROUBLE SHOOTING (CONTINUED) PROBLEM SOLUTION PROBLEM SOLUTION Make sure to hold down your finger on the scanner instead of tapping, as the scanner needs time to YOUR FINGERPRINT complete the scanning process. IS NOT READING Fingerprints may lack definition due to excessive dryness. We recommend applying moisturizer or slide your finger print against your forehead before scanning process. -
Page 11: Clearing All Programmed Fingerprints
10. CLEARING ALL PROGRAMMED FINGERPRINTS HOLD DOWN THE RESET BUTTON Hold Reset button. Initially, you will hear one beep. Continue Battery holding reset button for 5 Compartment LED Light seconds, the indicator ring will (4) AA flash green two times and beep Reset Button two times. -
Page 12: Proper Placement And Moving Of Vault
12. PROPER PLACEMENT AND MOVING OF VAULT To maximize burglary protection and stability, securing the vault to the floor or table is recommended. SA Consumer Products recommends that you store your vault in a closet, office, basement, bedroom or any other location that is convenient for you but out of direct line of sight from prying eyes. - Page 13 13. SECURING YOUR VAULT (CONTINUED) TOOLS AND HARDWARE NEEDED TO SECURE VAULT TO A WOOD OR CONCRETE SURFACE: • DRILL/HAMMER DRILL • 2 STEEL LAG BOLTS (NOT INCLUDED) - SIZE 1/4" X 1.50" TO 2.0" LONG • 2 STEEL WASHERS (NOT INCLUDED) •...
-
Page 14: Loading Your Vault
14. LOADING YOUR VAULT Store ammunition separately from valuables. Do not put anything in your vault that will put pressure against the door when it is closed. 15. MAINTAINING HINGES AND INTERNAL MECHANISMS The hinges and internal locking mechanism are permanently lubricated, thus needing no maintenance. -
Page 15: Warranty
SA Consumer Products will repair or replace, at their sole discretion, any Sports Afield vault damaged by fire, forced entry, forced attack or natural flood for the lifetime of the original owner. SA Consumer Products will repair or replace, at their sole discretion, any Sports Afield vault with defective parts, paint or lock for three years of the original owner purchase date.
