Summary of Contents for SPORTS AFIELD SA-HD4

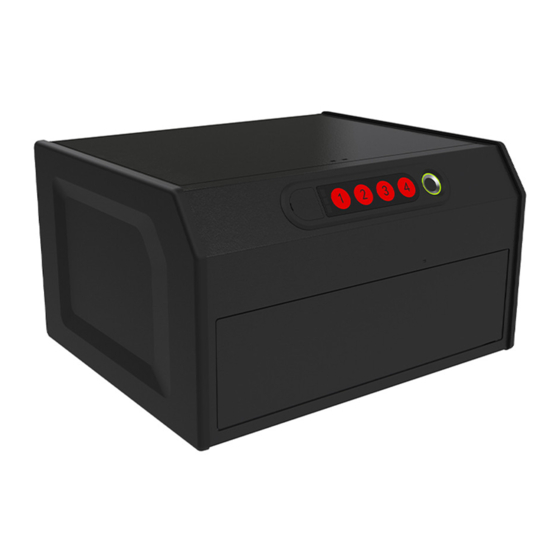

- Page 1 DUAL QUICK ACCESS BIOMETRIC SECURITY VAULT INSTRUCTION MANUAL FOR SA-HD4 DUAL ACCESS IMPORTANT: Please read this information and follow all safety rules carefully before operating your security vault. Failure to do so will void your warranty. 073021...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION ....................2 1. REGISTRATION ........................ 3 2. UNDERSTANDING YOUR VAULT ..................4 3. INITIAL ENTRY ........................5 4. BATTERY INSTALLATION....................5 5. PROGRAMMING YOUR FINGERPRINT ................6 6. OPENING VAULT WITH PROGRAMMED FINGERPRINT ............ 7 7. -
Page 3: Important Information
DISCLAIMER - READ BEFORE VAULT SETUP PLEASE READ THIS INFORMATION CAREFULLY BEFORE OPERATING YOUR SPORTS AFIELD VAULT. DO NOT LOCK THIS MANUAL OR THE OVERRIDE ACCESS KEYS IN YOUR VAULT. Thank you for choosing a Sports Afield vault to protect your valuables. We are committed to securing, organizing and protecting your most important documents, valuables and keepsakes. -
Page 4: Registration
1. REGISTRATION Register your vault at www.saproducts.com By registering your Sports Afield vault we will be able to expedite and address any problems or challenges you may have which would otherwise require a notary letter and proof of payment. REGISTRATION INFORMATION The information you record onto this page will be required in the event you cannot access the contents of your Sports Afield vault. -
Page 5: Understanding Your Vault
2. UNDERSTANDING YOUR VAULT Bottom Drawer Key Entry Reset Button (Underneath Foam) (inside) For Backup Key Set #1 LED Light (inside) Locking Latch Battery Compartment Security Cable Port (inside) (on back panel) Biometric Scanner (opens top of vault) Electronic Touch Pad 7.10"... -
Page 6: Initial Entry
KEY COVER product packaging. Locate the key cover and press down near the right side of the SPORTS AFIELD logo. The cover will pop up on one side so that it can be removed. Match the number on your key to the numbers engraved on the lock. -
Page 7: Programming Your Fingerprint
5. PROGRAMMING YOUR FINGERPRINT- BIO SCANNER THIS SECTION IS TO PROGRAM YOUR FINGERPRINT ON THE BIO SCANNER THAT OPERATES THE TOP PORTION OF YOUR VAULT. Battery 1. Inside of the vault, you will find a Compartment LED Light reset button on the right side of (4) AA the front panel. -
Page 8: Opening Vault With Programmed Fingerprint
6. OPENING VAULT WITH PROGRAMMED FINGERPRINT With keys in hand, close the door. Place and hold the PROGRAMMED finger on the scanner, indicator ring will illuminate green and vault door will open. If your fingerprint is not accepted: Indicator ring will flash 1 time and sound 1 time. -
Page 9: Trouble Shooting
7. PROGRAMMING ADDITIONAL FINGERPRINTS (CONTINUED) HOLD FOR BEEP Press the reset button and follow Section 5 instructions again, for each fingerprint zone you would like to program. LIFT FINGER If you experience any problems reading your fingerprint, including inconsistent readings, note the area of your fingerprint that doesn’t work properly, and specifically re-program that area. -
Page 10: Clearing All Programmed Fingerprints
8. TROUBLE SHOOTING (CONTINUED) PROBLEM SOLUTION Make sure to hold down your finger on the scanner instead of tapping, as the scanner needs time to complete the scanning process. YOUR FINGERPRINT IS NOT Fingerprints may lack definition due to excessive dryness. READING We recommend applying moisturizer or slide your fingerprint against your forehead before scanning... -
Page 11: E-Lock Security Code Setup
10. E-LOCK SECURITY CODE SETUP- BOTTOM DRAWER THIS SECTION IS TO PROGRAM YOUR THE DIGITAL KEYPAD THAT WILL OPERATE THE BOTTOM DRAWER TO YOUR VAULT. Important: It is necessary to re-program your vault with a new security code you have personally selected to provide maximum household security. Be careful, in choosing your new security code, you’ll want to be sure that you can operate the unit quickly without making an error. -
Page 12: Low Battery Warning
11. LOW BATTERY WARNING This E-Lock is equipped to alert you when the batteries are low by illuminating the low battery icon on the keypad . After a successful entry, the LED will flash 10 times signaling vault is in low battery mode, replace batteries immediately to avoild being locked our of your vault. -
Page 13: Proper Placement And Moving Of Vault
14. PROPER PLACEMENT AND MOVING OF VAULT To maximize burglary protection and stability, securing the vault to the floor or wall is recommended. SA Consumer Products recommends that you store your vault in a closet, office, basement, bedroom or any other location that is convenient for you but out of direct line of sight from prying eyes. - Page 14 15. SECURING YOUR VAULT (CONTINUED) TOOLS AND HARDWARE NEEDED TO SECURE VAULT TO A WOOD OR CONCRETE SURFACE: • DRILL/HAMMER DRILL • 2 STEEL LAG BOLTS (NOT INCLUDED) - SIZE 1/4" X 1.50" TO 2.0" LONG • 2 STEEL WASHERS (NOT INCLUDED) •...
-
Page 15: Loading Your Vault
16. LOADING YOUR VAULT Store ammunition separately from valuables. Do not put anything in your vault that will put pressure against the door when it is closed. 17. MAINTAINING HINGES AND INTERNAL MECHANISMS The hinges and internal locking mechanism are permanently lubricated, thus needing no maintenance. -
Page 16: Warranty
SA Consumer Products will repair or replace, at their sole discretion, any Sports Afield vault damaged by fire, forced entry, forced attack or natural flood for the lifetime of the original owner. SA Consumer Products will repair or replace, at their sole discretion, any Sports Afield vault with defective parts, paint or lock for three years of the original owner purchase date.
