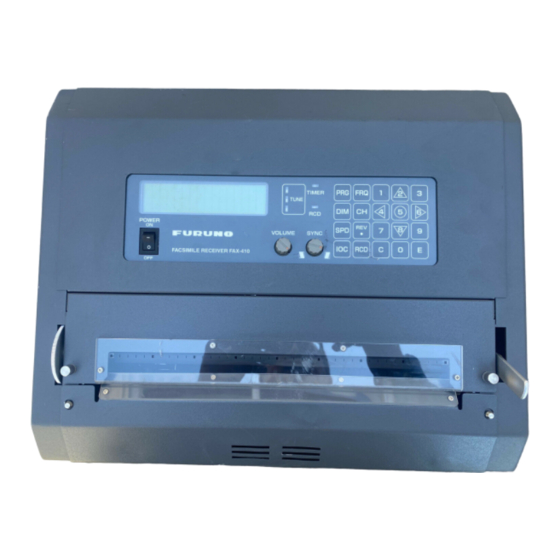

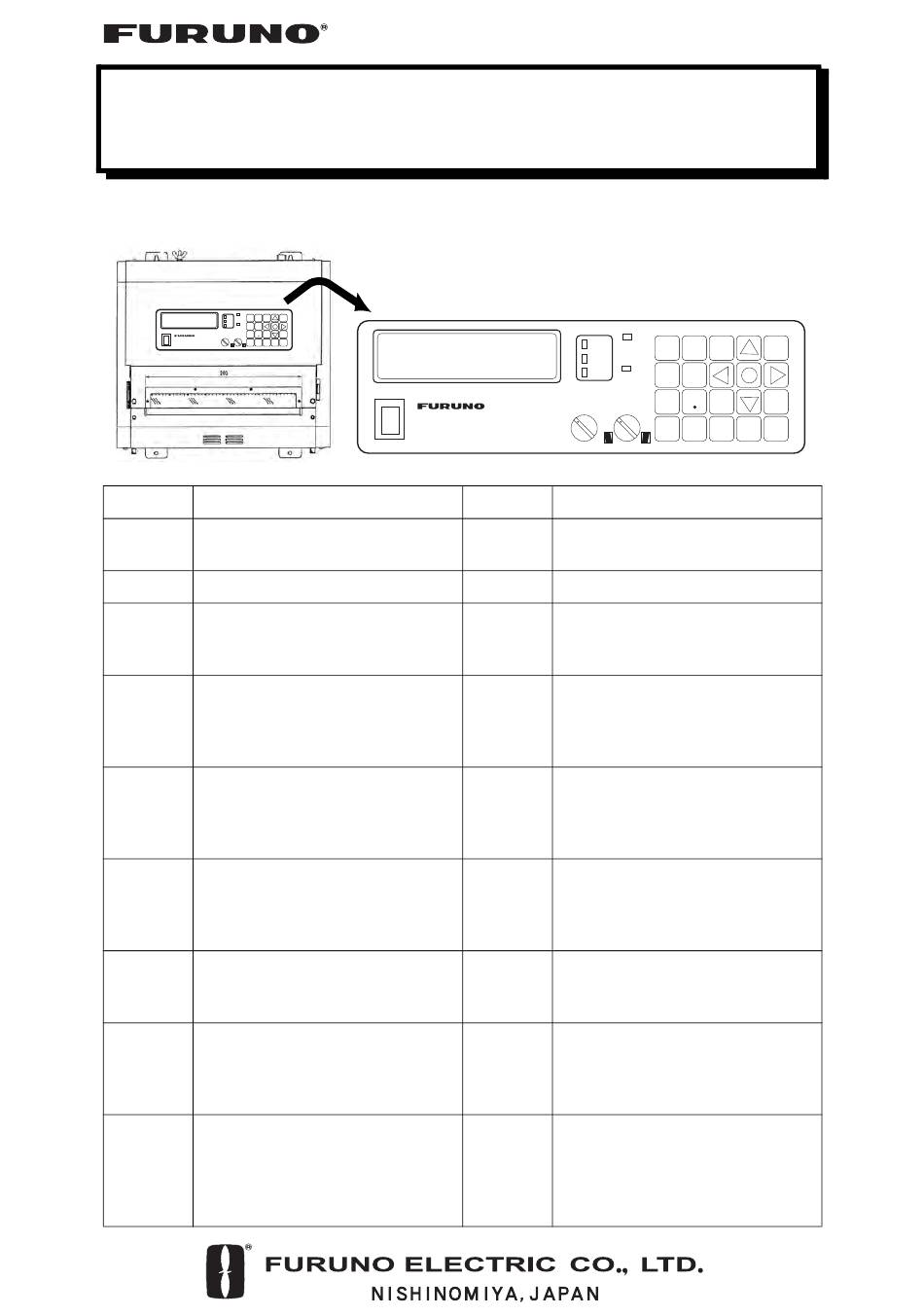

FACSIMILE RECEIVER FAX-410
The purpose of this Operator's Guide is to provide the basic operating procedures for this
equipment. For more detailed information see the Operator's Manual.
TIMER PRG FRQ 1 2
TUNE
DIM CH 4 5
RCD
POWER
ON
SPD REV
7 8
VOLUME SYNC
IOC RCD C 0
FACSIMILE RECEIVER FAX-410
OFF
Control
POWER Turn power on or off.
VOLUME Adjust volume of receive signal.
SYNC Fine tune the phasing signal.
PRG • Enable a setting mode (in com-
bination with numeric key).
• Return to previous screen in a
setting mode.
FRQ • Change from channel mode to
frequency mode.
• Set frequency in frequency
mode.
DIM Adjust backlight of LCD, in four
levels.
CH • Change from frequency mode
to channel mode.
• Set channel in channel mode.
SPD Choose recording speed.
REV • Reverse recording format
(from black on white to white
on black and vice versa).
• Enter decimal point in fre-
quency.
Operator's Guide
3
6
9
E
POWER
ON
FACSIMILE RECEIVER FAX-410
OFF
Description
TIMER
TUNE
RCD
VOLUME SYNC
Control
IOC Choose IOC (Index of Coopera-
tion).
RCD Start and stop recording.
C • Clear data in setting mode.
• Switch from setting mode to
standby mode.
E Confirm setting.
2 Raise channel in channel mode,
or raise frequency in frequency
mode.
4 Manual phasing (leftward) in
recording. Each press shifts the
recording leftward by 2.5% of the
paper width.
5 Display date and time.
6 Manual phasing (rightward) in
recording. Each press shifts the
recording rightward by 2.5% of
the paper width.
8 Lower channel in channel mode,
or lower frequency in frequency
mode.
1
PRG FRQ 1
2 3
DIM CH 4 5 6
SPD REV
7 8 9
IOC RCD C 0 E
Description
