Summary of Contents for Furuno FAX-410

  • Page 1 FACSIMILE RECEIVER FAX-410...

  • Page 2: Important Notice

    The screen you see depends on your system configuration and equipment settings. • FURUNO will assume no responsibility for the damage caused by improper use or modification of the equipment or claims of loss of profit by a third party.

  • Page 3: Safety Instructions

    Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. Do not disassemble or modify the equipment. Fire, electrical shock or serious injury can result.
  • Page 4 Safety Instructions for the Operator (con't) WARNING LABEL A warning label is attached to the main unit. Do not remove the label. If the label is missing or damaged, contact a FURUNO agent or dealer about replacement. WARNING To avoid electrical shock, do not remove cover.

  • Page 5: Table Of Contents

    1. OUTLINE ・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Characteristics List of Standard Components System Components 2. OPERATION Description of key Contrast and brightness Basic operation 2.3.1 Channel setting 2.3.2 Fine-adjustment of frequency, and selection of a desired frequency 2.3.3 Start and stop of recording 2.3.4 Manual phasing 2.3.5 Synchronization 2.3.6 Selection of reception mode...
  • Page 6 Exchange of a recording paper 5. SPECIFICATIONS Receiver ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Recorder ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Automatic Control Power, Dimension ＆ Weight APPENDIX TABLE OF FACSIMILLE STATION Area map of existing stations Facsimile station table PACKING LIST ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Outside view ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Layout diagram ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・...

  • Page 7: Outline

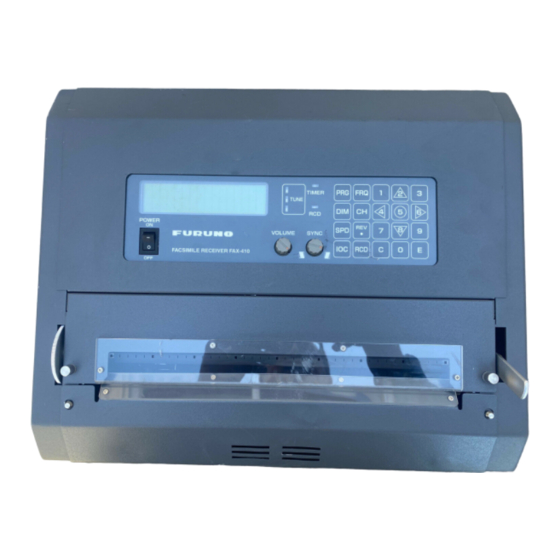

    １．OUT LINE FAX-410 is the high sensitive weather facsimile receiver using electronic scanning thermal head recording system. １．１ Characteristics (1) Electronic scanning with thermal head recording system provides clear image, quiet operation. (2) Pre-programmed all existing weather facsimile stations in the world.

  • Page 8: List Of Standard Components

    Name Fuse Spare parts（DC Power supply） Name Fuse Model nam Q’ty Remarks e/Code No. 1 set AC Power supply or DC Power supply FAX-410 1 set 1 set Model nam Q’ty Remarks e/Code No. 2ｍ 343200G01 With terminal M207-P For Antenna cable Clamp for Main unit M5×25...

  • Page 9: System Components

    １．３ System Components To BK line To Grounding wire To Power supply 2.6m Whip antenna Antenna coupler,fax-5 Coaxial cable Main unit...

  • Page 10: Description Of Key

    ２．OPERATION The unit, with antenna(s) and power supply, receives and records signal automatically by the control of APSS when desired channels have been set. ２.1 Description of key Program key Dimmer key Speed key : For preparation to mode setting. One of following modes can be selected by pressing key and next, a Be sure to follow instruction of the indicator in...
  • Page 11 IOC key : For selection of IOC. Up key : Channel up in the channel mode or frequency up in Left key : For manual phasing in recording (towards left). Right key : For manual phasing in recording (towards right). Down key : Channel down in the channel mode or frequency Reverse key...
  • Page 12 Channel key : For selection of Clear key : For deletion of memorized value in a set mode and Record key : To start and stop recording. In the non-recording ○ key : Time display (clock function) Number key : To enter number or mode. 0～9 Entry key : To acknowledge setting.

  • Page 13: Contrast And Brightness

    ２.2 Contrast and brightness Contrast of LCD display depends on the visual angle and the temperature and hence, be sure to adjust it with the contrast knob (see Fig. 1) for optimum result at the time of installation. The backlight brightness of the LDC can be adjusted in five stages by pressing the key.

  • Page 14: Start And Stop Of Recording

    within 2000.0～24999.9kHz). ２.３.3 Start and stop of recording (1) Start Recording starts automatically (Start/Stop, Phase, Speed, IOC) by receiving the APSS signal. To start halfway of the received picture, press and automatic speed setting and auto-phasing mode are set. Then, recording starts upon phasing is completed.

  • Page 15: Selection Of Reception Mode

    ２.３.６ Selection of reception mode The reception mode refers IOC, speed, and normal/reverse printing and modes. The former two (IOC and speed) are automatically selected by receiving the APSS signal and phase signal. For the latter two modes, desired ones should be selected manually.

  • Page 16: Description Of Setting Mode

    To release this timer or keylock in the timer mode, follow the procedure below. (1) In the timer standby mode (time for the next recording is displayed): Press key then the message on the right is displayed. Then, a press of key releases the timer operation and shifts the mode to the standard operation mode.

  • Page 17: Setting Of Timer Reception

    receiver, 2 is for external receiver. Pressing key after setting a completes the setting. ２.４.２ Setting of timer reception This unit has 16 booking functions and each timer is set as follows. Press key. Then the timer reception setting mode is set and the message is shown on the right.The displayed number correspond to the following entries respectively.

  • Page 18: Sleep Timer Setting

    (4) Entry booking Press key. Select a timer number for booking by pressing key. Then, the unit will ask △ ▽ whether the number is correct or not. Fix the number by pressing the enter a new number if the number is not correct.

  • Page 19: Registration Of New Frequency

    the following operations. 1 : Release 2 : Setting (1) Release Select “1” in the above message, and fix with key. (display on the right) Note: When the system is in the sleep mode, press & the mode to the standard operation mode.

  • Page 20: Time Setting

    SET　SPEED 1-120 2-90 3-60 SET　IOC　576/288 1-576 2-288 ２.４.５ Time setting Clock time can be set by the following procedure. Pressing the setting mode and message shown on the right appears. Set month with △ with key. The message on the right shows entering April.

  • Page 21: Setting Of Isb Frequency

    ２.４.６ Setting of ISB frequency Signals from multiplex-communication station are easily received by setting an ISB (Independent side band) width as shown in the following. Pressing key sets the ISB setting mode and the message on the right is shown. The displayed numbers correspond to the following.

  • Page 22: Ram Clearance Function

    ２.４.８ RAM clearance function The unit has RAM to memorize the frequency data of the FAX transmitting stations in the world and to retrieve such data. Therefore, when a part or all of RAM data is deleted in error so that the initial data in ROM (data at the time of delivery) has to be retrieved, the following procedure is needed to clear the RAM data.

  • Page 23: Operation With External Receiver

    ２.５ Operation with external receiver (1) External receiver When an external receiver is used, it should have a local oscillator with very good frequency stability. monitored with the unit when the signal is supplied through receiver jack of the external receiver. If the signal is supplied from the speaker terminal, it is suggested to use a dummy resistor and supply signal from both ends of the dummy resistor.

  • Page 24: Maintenance

    3. Maintenance ３．１ Back-up battery This device uses a manganese lithium battery as a back-up battery. Please exchange to new one after using for 5 years. Ask to a service shop for replacing the back-up battery. ３．２ Lubrication and Cleaning (1) Lubrication Lubricate a paper sending gear with 1-2 drops of lubricating oil at every 2-3 months.

  • Page 25: Installation

    ４．INSTALLATION ４．１Main unit Install the TF-711 main unit on a plane desk or a solid and plane wall with 4 pcs. of screws and washers. Caution: A print may become blurred if the installation place is uneven. In that case, put some washers or suitable attachment to adjust the flatness as following figure.

  • Page 26: Wiring

    ４．２ Wiring 4.2.1 DC power supply built-in type Connect black wire to “-“ (negative), and red wire to “+” (positive). Fig. 4.2.1 DC power cable 4.2.2 AC power supply built-in type Operation voltage (100/115/200/230 VAC) is pre-set at factory in accordance with customer’s request.

  • Page 27: Terminal Board

    ４．３ Terminal board Use terminal board on the rear panel of the main unit for the connection between BK, external receiver or decoder. Insert a connection wire in a terminal in the following ways. Press a push knob by a screwdriver Peel off vinyl sheath of the wire about 10mm Connection...

  • Page 28: Grounding

    ４．５ Receiving antenna Following antennas are suitable to use as the receiving antenna for the FAX-410. A) Antenna coupler FAX-5 + 2.6 m whip antenna (supplied by us as option) B) Whip antenna (6 m ~ 8 m)

  • Page 29: Exchange Of A Recording Paper

    ４．６ Exchange of a recording paper Fig.1 Fig.2 Fig.3 (1) Remove the front cover, up the paper ① cutting plate, slide the paper feed lever in the direction of rear. (Ref. Fig.1) (2) Set the roll paper to the holder by pressing a paper guide ②...
  • Page 30 Fig.3 ③ Fig.4 Fig.5 Fig.6 - 24 - (4) Pull down ahead the paper feed lever, pulling the end of paper a little ahead. (Ref. Fig.4) (5) Return the paper cutting plate to the original position. (6) Install the front cover. At that time, place the end of paper above the front cover.

  • Page 31: Specifications

    ５．SPECIFICATIONS ５．１ Receiver Reception Frequency range Mode Selectivity Number of channels : 315 channels Sensitivity Channel selection Tuning indicator Display Audio input ５．２ Recorder Recording system Recording speed Gradation Recording paper Line density ５．３ Automatic Control Start/stop Recording rate Phase ５．４...
  • Page 32 TABLE OF FACSIMILE STATION Table of pre-programmed frequencies and area map This unit has a ROM (read only memory) which is pre-programmed 150 of existing frequencies of transmitting stations. Stations and frequencies are shown in the map and table respectively. This table is reference data and is subject to change without previous notice.
  • Page 39 ¢ ¡ ¤ £ ¦ ¥ ¨ § ©      §    "    !
