Utility Roof Mount Frame Base Mounting Kit
Page 2
Packaging Contents
Pages 3-4
Utility Roof Mountings
PRIME DESIGN, A SAFE FLEET BRAND
Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK
Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net
Advertisement
Related Manuals for Safe Fleet Prime Design FBM-1024
Summary of Contents for Safe Fleet Prime Design FBM-1024

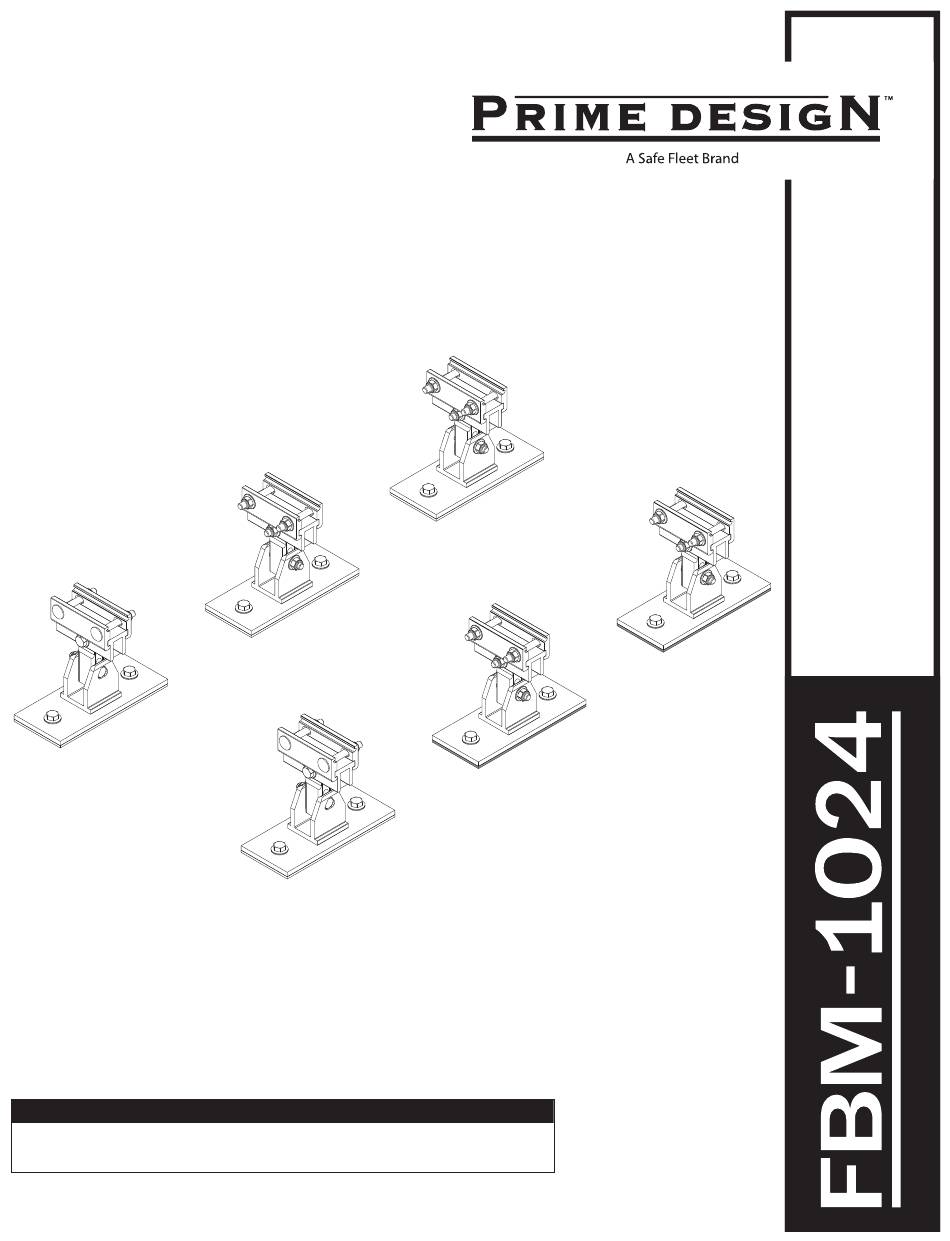

- Page 1 Utility Roof Mount Frame Base Mounting Kit Page 2 Packaging Contents Pages 3-4 Utility Roof Mountings PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
- Page 2 CONTENTS OVERVIEW 1—FBM-1024 ............(Qty 1) Utility Roof Mounts, with HKT-8267 NOTE: The M8 x 35MM and M8 x 45MM Mounting Bolts are available in the HKT-8267 Hardware Kit for varying mounting surfaces and thickness. Mounting Bracket (6X) Foam Pad (6X) M8 x 35MM (12X) M8 x 45MM (12X) Fender Washer (12X)
- Page 3 UTILITY ROOF MOUNTINGS Assemble unto vehicle roof as shown, then torque the Mounting MOUNTING BRACKETS TO ROOF Feet nuts to 130 in-lbs. Drill bolt holes according to the dimensions shown. Set according to vehicle or cap F r o manufacturer’s recommened mounting positions 5.00”...
- Page 4 FBM ASSEMBLY SEQUENCE NOTE: LH/RH Rotation and Crossbar features are shown for illustrative purposes only. These features are not included with this Base Mounting Kit, and must be purchased separately. CROSSBARS CROSSBAR ADJUSTMENT Shown with LH/RH Rotation for illustrative purposes only Front Even Even...
