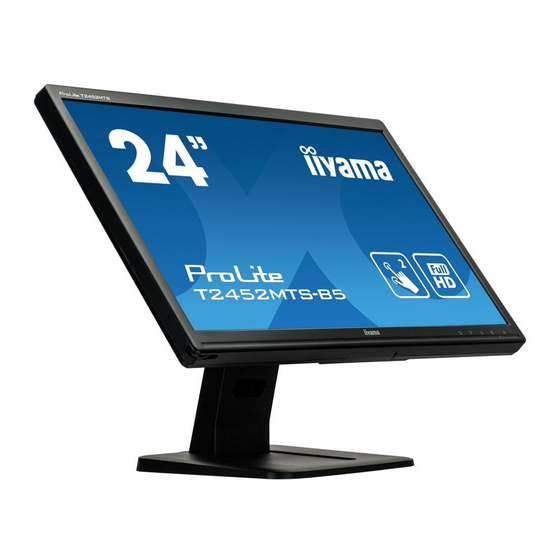

Summary of Contents for Iiyama ProLite T2452MTS-B5

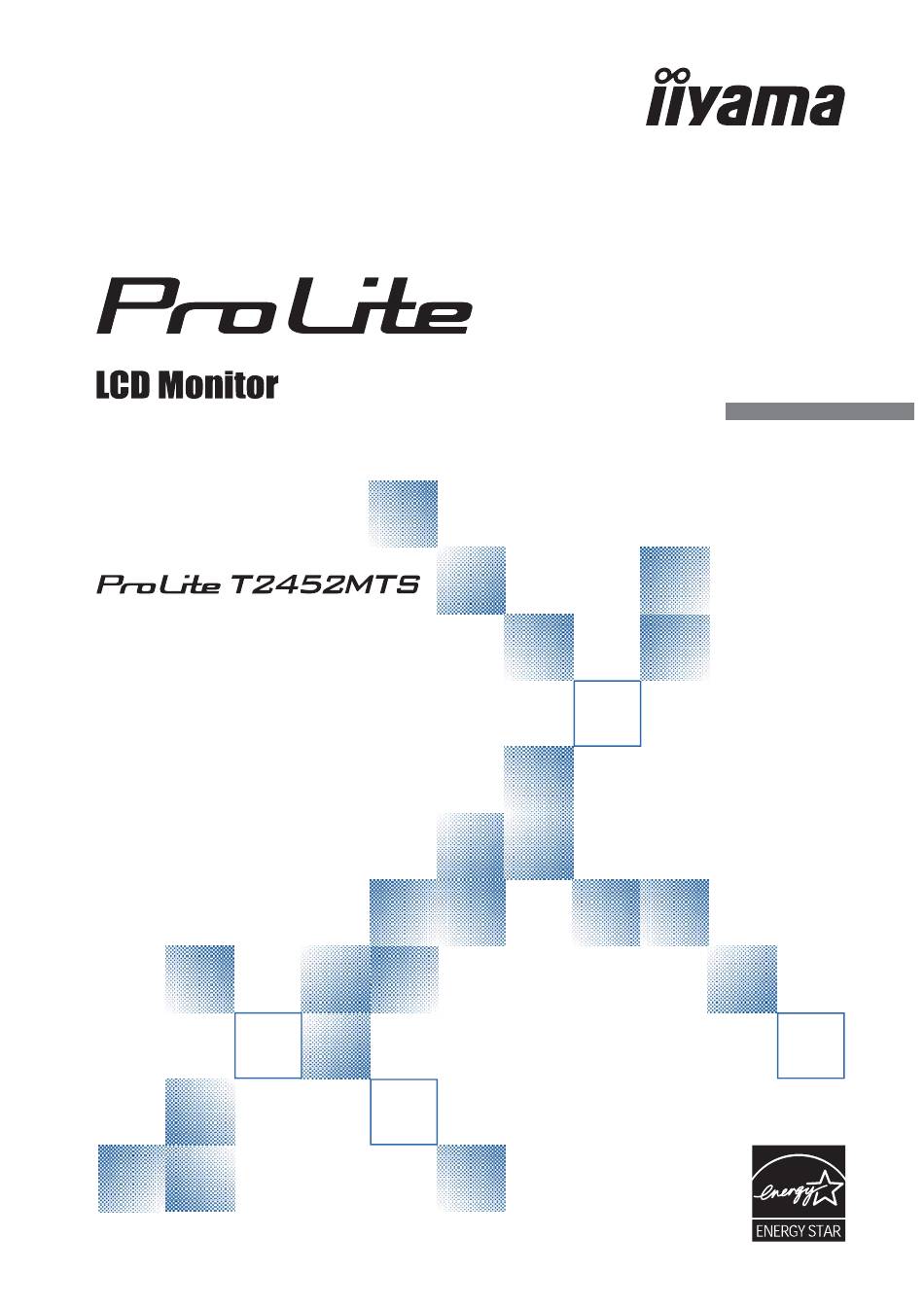

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2452MT We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 CLEANING OF REFLECTOR ............4 BEFORE YOU OPERATE THE MONITOR ..........5 FEATURES..................5 CHECKING THE CONTENTS OF THE PACKAGE ......5 WALL MOUNTING ................6 FITTING AND REMOVAL OF BASE ..........7 CONTROLS AND CONNECTORS..........8 CONNECTING YOUR MONITOR ..........9... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
CUSTOMER SERVICE If you have to return your unit for service and the original packaging has been NOTE discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 8: Cleaning Of Reflector
CLEANING OF REFLECTOR Never use any solvents, cleaners and sprays etc.., these will damage the reflector. NOTE When the refl ector is damaged, the touch function can be lost. The cabinet or glass can be cleaned with a mild detergent solvent but make sure it does not adhere to the refl... -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 11: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( Power Indicator Blue: Normal operation NOTE Orange: Power Management Input select / Select Button ( Scroll up / Audio Adjust Button ( Scroll down / i-Style Color Button ( Menu Button ( Touch Pen Speakers VGA(D-sub) mini 15pin Connector (VGA) -
Page 13: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 14: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 26: COMPLIANT TIMING. TOUCH support operation system Mouse Digitizer Gestures* Windows8/8.1/10 Windows7 Windows Vista Windows XP Mac OS/OS X Linux Android Mouse function Click Right-Click Mouse & Digitizer functions Functions Drag Flick... -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 26. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 19 for SCREEN ADJUSTMENTS. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Image Adjust Auto Image Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Auto Image Adjust * Adjust H. / V. Position, Clock and Phase automatically. Direct * For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 19 for SCREEN ADJUSTMENTS. - Page 17 Picture Adjust Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,3 Brightness * Too bright Off Typical Contrast Ratio 2,3,4 Adv. Contrast * Increased Contrast Ratio Off Normal Brightness of back-light is reduced. ECO Mode * Brightness of back-light is reduced more than 1.
- Page 18 Input Select Direct Input Select Adjustment Item Problem / Option Button to Press Select the VGA input. Select the DVI input. Input Select HDMI Select the HDMI input. Search for an available input source and select Auto automatically. Input source is fi xed, not selected automatically when VGA, DVI and HDMI which are NOTE selected.
- Page 19 Color Adjust * Color Adjust Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Greenish white Reddish white Warm Too weak User Color Green Too strong Blue Return to a state set by color adjustment except Off i-Style Color.
- Page 20 Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press Too left H. Position Too right H./V. Position * Too low V. Position Too high Too narrow Clock * Too wide Phase * To correct fl ickering text or lines 0 1 2 3 You can change the picture quality from 0 to 3 (soft to sharp).
- Page 21 5 / 15 / 30 / 60 seconds Off Retune the background of OSD. OSD Background* The background of OSD is mode transparent. iiyama Logo does not display when the monitor is Off turned on. Opening Logo* iiyama Logo displayed when the monitor is turned on.
- Page 22 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons for about 10 seconds. If you try to access the OSD by pressing any of the buttons , message "OSD Locked" will appear on the screen. 2.
-
Page 23: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 24 Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 25 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 26: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 27: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 28: Recycling Information
A strange noise The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 24 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 29: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Touch Technology Optical Screen Light transmission 88% Communication system Size Category 24" LCD Panel Panel technology TN Size Diagonal: 23.6" (60cm) Pixel pitch 0.272mm H × 0.272mm V Brightness 300cd/m (Typical without touch panel),... -
Page 30: Dimensions
DIMENSIONS 556.0mm/21.9” 56.0mm/2.2” 523.5mm/20.6” 235.5mm/9.3” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 31.500MHz 640 × 480 37.500kHz 75.000Hz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz 49.500MHz 46.875kHz 75.000Hz 65.000MHz 48.363kHz 60.004Hz...
