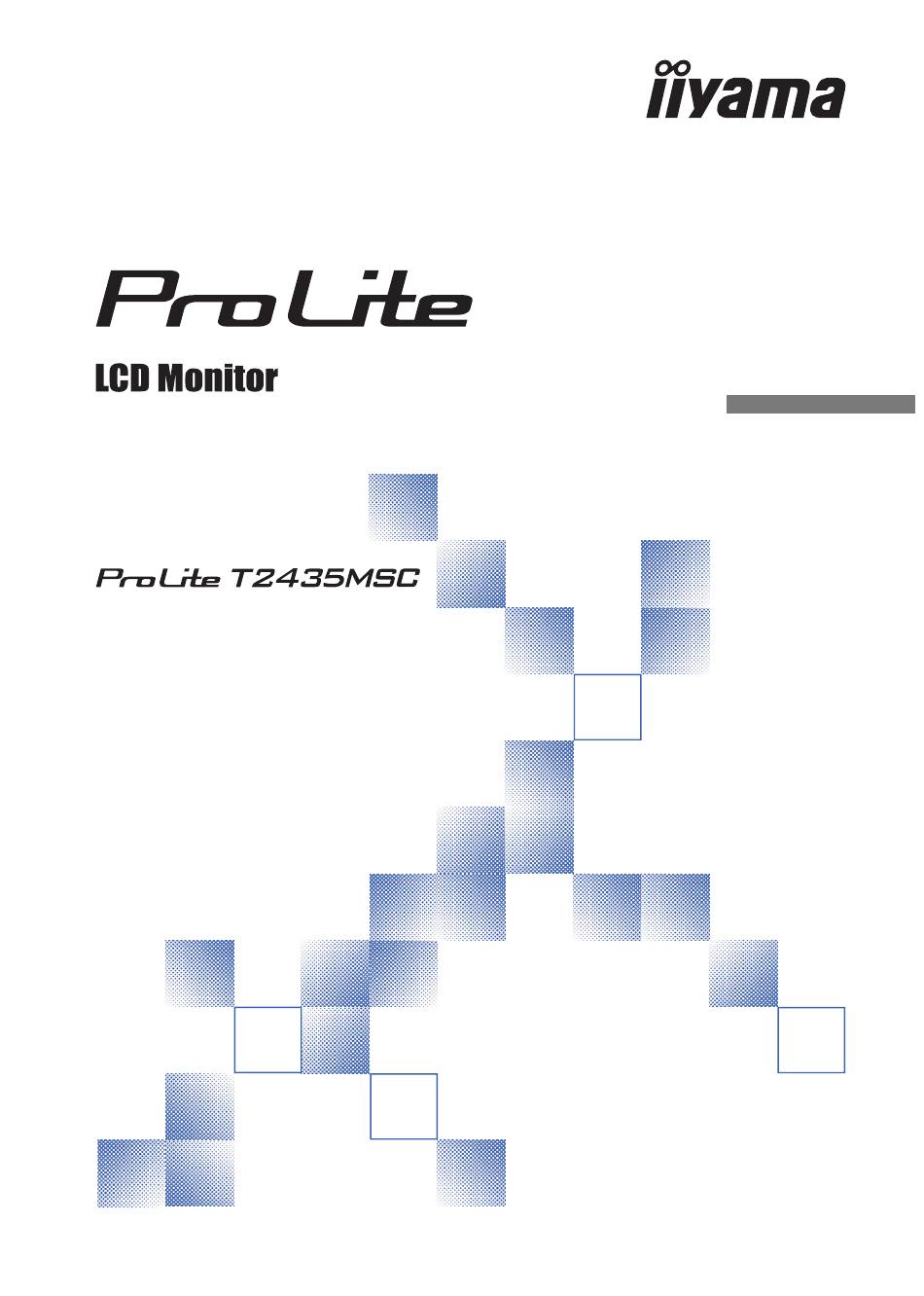

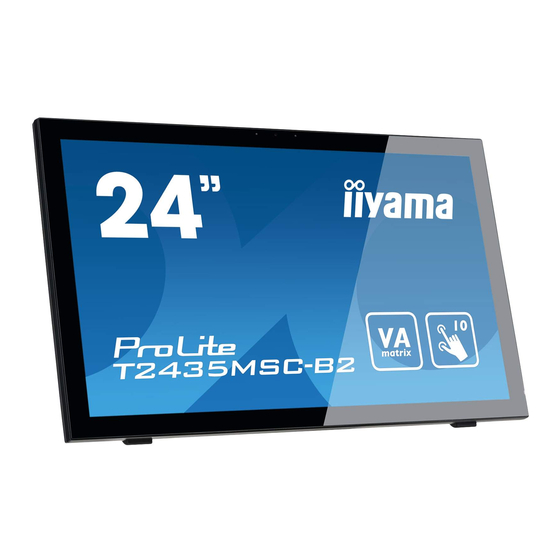

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2435M We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 CONTROLS AND CONNECTORS..........6 CONNECTING YOUR MONITOR ..........7 COMPUTER SETTING ..............8 ADJUSTING THE VIEWING ANGLE ..........10 OPERATING THE MONITOR ............. -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
CUSTOMER SERVICE If you have to return your unit for service and the original packaging has been NOTE discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Installation
INSTALLATION WARNING Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the display and the mount. < WALL MOUNTING > WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) with washer which “L”... -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Microphone Web Camera Web Camera Indicator Light indicating webcam is on. NOTE Menu Button ( Scroll up / Audio Adjust Button ( Scroll down / i-Style Color Button ( Select / Input select Button ( Power Switch ( Power Indicator Blue:... -
Page 11: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 12: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 22: COMPLIANT TIMING. TOUCH support operation system Mouse Digitizer Gestures* Windows8/8.1/10 Windows7 Windows Vista Windows XP Mac OS/OS X Linux Android Mouse function Click Right-Click Mouse & Digitizer functions Functions Drag Flick... - Page 13 Touch Input Settings in Dual Screen Mode Connect the primary monitor to the computer fi rst. Set Control Panel > Hardware and Sound > Tablet PC Settings > Display > Setup. The following message will appear on the screen. Please follow the instructions. After setting , connect a second monitor and perform the setup as in NOTE...
-
Page 14: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at 15° the full face of the monitor. You are able to adjust the monitor’s angle up to 15 - 70 degrees upward. P ut a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 22. You are also able to adjust the picture by following the button operation shown below. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,3 Brightness * Too bright Off Typical Contrast Ratio 2,3,4 Adv. Contrast * Increased Contrast Ratio Off Normal Brightness of back-light is reduced. - Page 17 Input Select Direct Input Select Adjustment Item Problem / Option Button to Press Select the DVI input. HDMI Select the HDMI input. Input Select DisplayPort Select the DisplayPort input. Search for an available input source and select Auto automatically. NOTE Input source is fi...
- Page 18 Color Adjust * Color Adjust Adjustment Item Problem / Option Button to Press Cool Bluish white Greenish white Normal Reddish white Warm Too weak User Color Green Too strong Blue Return to a state set by color adjustment except Off i-Style Color.
- Page 19 Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press 1 / 2 / 3 / 4 / 5 You can change the picture quality from 1 to 5 (soft to sharp). Sharpness Press the Button to change the picture quality in numerical order.
- Page 20 5 / 15 / 30 / 60 seconds Off Retune the background of OSD. OSD Background* The background of OSD is made transparent. iiyama Logo does not display when the monitor is Off turned on. Opening Logo* iiyama Logo displayed when the monitor is turned on.
- Page 21 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons for about 5 seconds. If you try to access the OSD by pressing any of the buttons , message "OSD Locked" will appear on the screen. 2.
-
Page 22: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 23: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 24: Recycling Information
Touch screen driver software is installed. The touch position The calibration function set up correctly. does not deviate. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 20 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 25: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Technology Projected capacitive Touch Light transmission Screen Communication system Size Category 24" Panel technology Size Diagonal: 23.6" (59.8cm) Pixel pitch 0.272mm H × 0.272mm V 250cd/m (Typical: without Touch panel), Brightness Panel 215cd/m... -
Page 26: Dimensions
DIMENSIONS * When the stand is closed. 571.0mm/22.5” 44.5mm/1.7” 523.5mm/20.6” 100.0mm/3.9” 357.0mm/14.1” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz...
