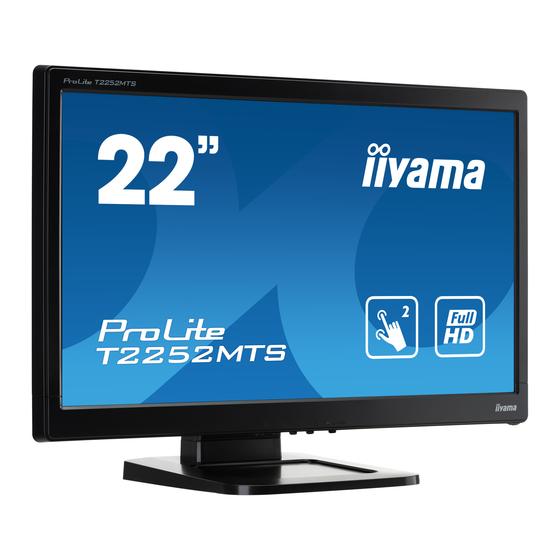

USER MANUAL

ENGLISH
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through
this brief but comprehensive manual
before installing and switching on the
monitor. Please keep this manual in a
safe place for your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite T2252MTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iiyama ProLite T2252MTS

Summary of Contents for Iiyama ProLite T2252MTS

  • Page 1: User Manual

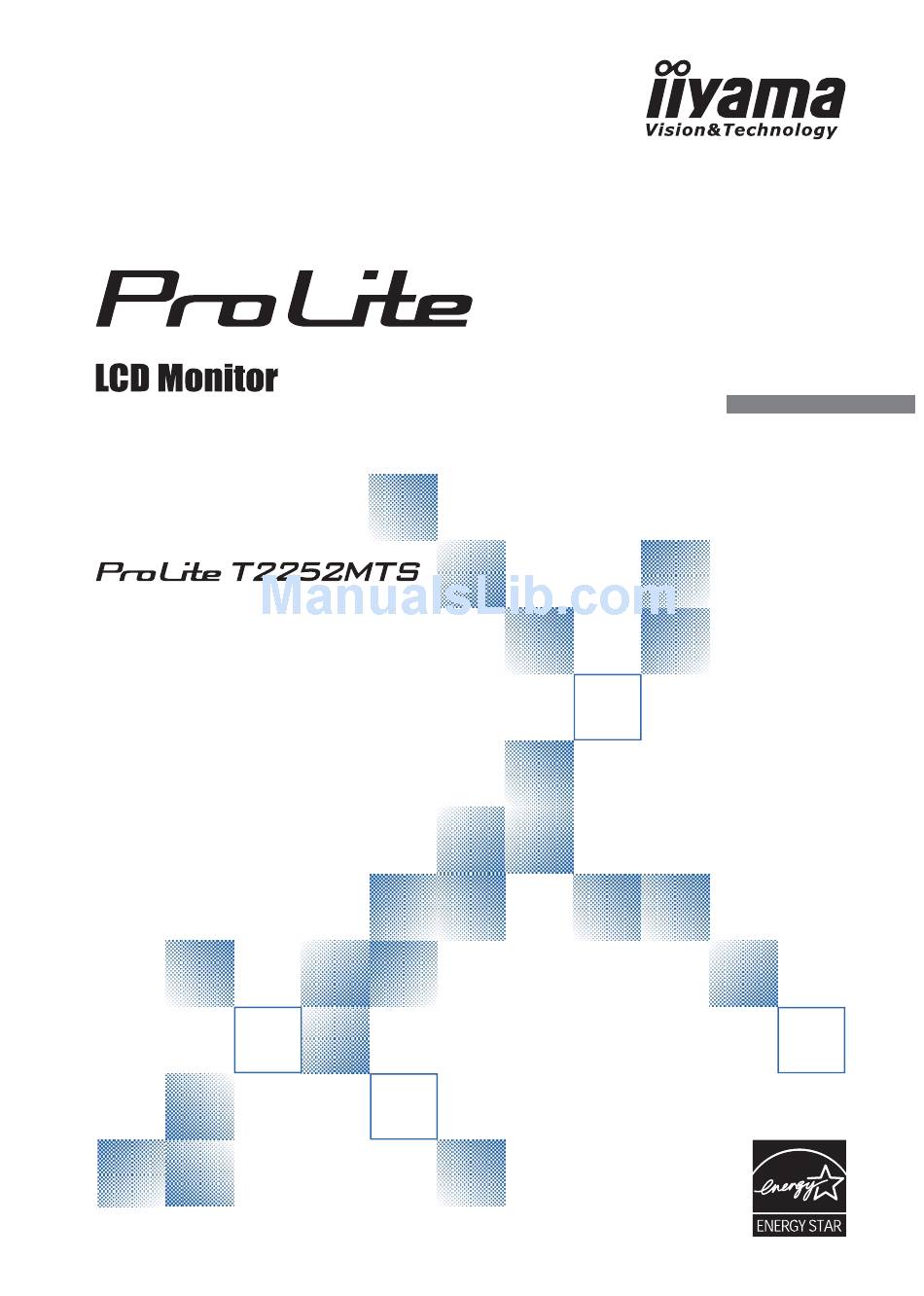

    USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...

  • Page 3: Ce Marking Declaration Of Conformity

    IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 CONTROLS AND CONNECTORS..........5 CONNECTING YOUR MONITOR ..........6 COMPUTER SETTING ..............7 ADJUSTING THE VIEWING ANGLE ..........7 OPERATING THE MONITOR ...............8...

  • Page 5: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 7: Special Notes On Lcd Monitors

    Power Switch for some hours.  Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.

  • Page 8: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 9: Controls And Connectors

    CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( Power Indicator Blue: Normal operation NOTE Orange: Power Management Select / Input select Button ( Scroll up / Audio Adjust Button ( Scroll down / i-Style Color Button ( Menu Button ( Touch Pen Speakers D-SUB mini 15pin Connector (VGA)

  • Page 10: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 11: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 23: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE  For optimal viewing it is recommended to look at the full face 5° of the monitor. 37°  When changing the monitors angle, ensure the cabinet is secure when moving the stand thus avoiding any accidents.

  • Page 12: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 23. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS.

  • Page 13: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Auto Image Adjust Auto Image Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Clock and Phase automatically. Auto Image Adjust * Direct * For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 16 for SCREEN ADJUSTMENTS.

  • Page 14: Picture Adjust

    Picture Adjust Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,3 Brightness * Too bright Typical Contrast Ratio Adv. Contrast * Increased Contrast Ratio Normal Brightness of back-light is reduced. ECO Mode * Brightness of back-light is reduced more than 1.
  • Page 15 Input Select Direct Input Select Adjustment Item Problem / Option Button to Press Select the VGA input. Select the DVI input. Input Select HDMI Select the HDMI input. Search for an available input source and select Auto automatically. Input source is fi xed, not selected automatically when VGA, DVI and HDMI which are NOTE selected.

  • Page 16: Color Adjust

    Color Adjust Color Adjust Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Reddish white Warm Greenish white Too weak User Color Green Too strong Blue Return to a state set by color adjustment except i-Style Color. For general windows environment and monitor Standard default setting.

  • Page 17: Manual Image Adjust

    Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press Too narrow Clock * Too wide Too left H. Position Too right H./V. Position * Too low V. Position Too high Phase * To correct fl ickering text or lines 1 2 3 4 5 You can change the picture quality from 1 to 5 (soft to sharp).
  • Page 18 5 / 15 / 30 / 60 seconds The background of OSD is mode transparent. OSD Background Retune the background of OSD. iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on.
  • Page 19 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons for about 10 seconds. If you try to access the OSD by pressing any of the buttons , message "OSD Locked" will appear on the screen. 2.

  • Page 20: Screen Adjustments

    If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com).
  • Page 21 C Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
  • Page 22 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE  In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.

  • Page 23: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.

  • Page 24: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 25: Recycling Information

    A strange noise  The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 21...

  • Page 26: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Touch Technology Optical Screen Light transmission 88% Communication USB serial transfer system Size Category 21.5" LCD Panel Panel technology TN Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 220cd/m (Typical)

  • Page 27: Dimensions

    DIMENSIONS * When the stand is closed. 516.5mm/20.3” 480.5mm/18.9” 71.5mm/2.8” 302.5mm/11.9” 131.5mm/5.2” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 31.500MHz 640 × 480 37.500kHz 75.000Hz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz SVGA 800 × 600 40.000MHz 37.879kHz 60.317Hz...
