Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per

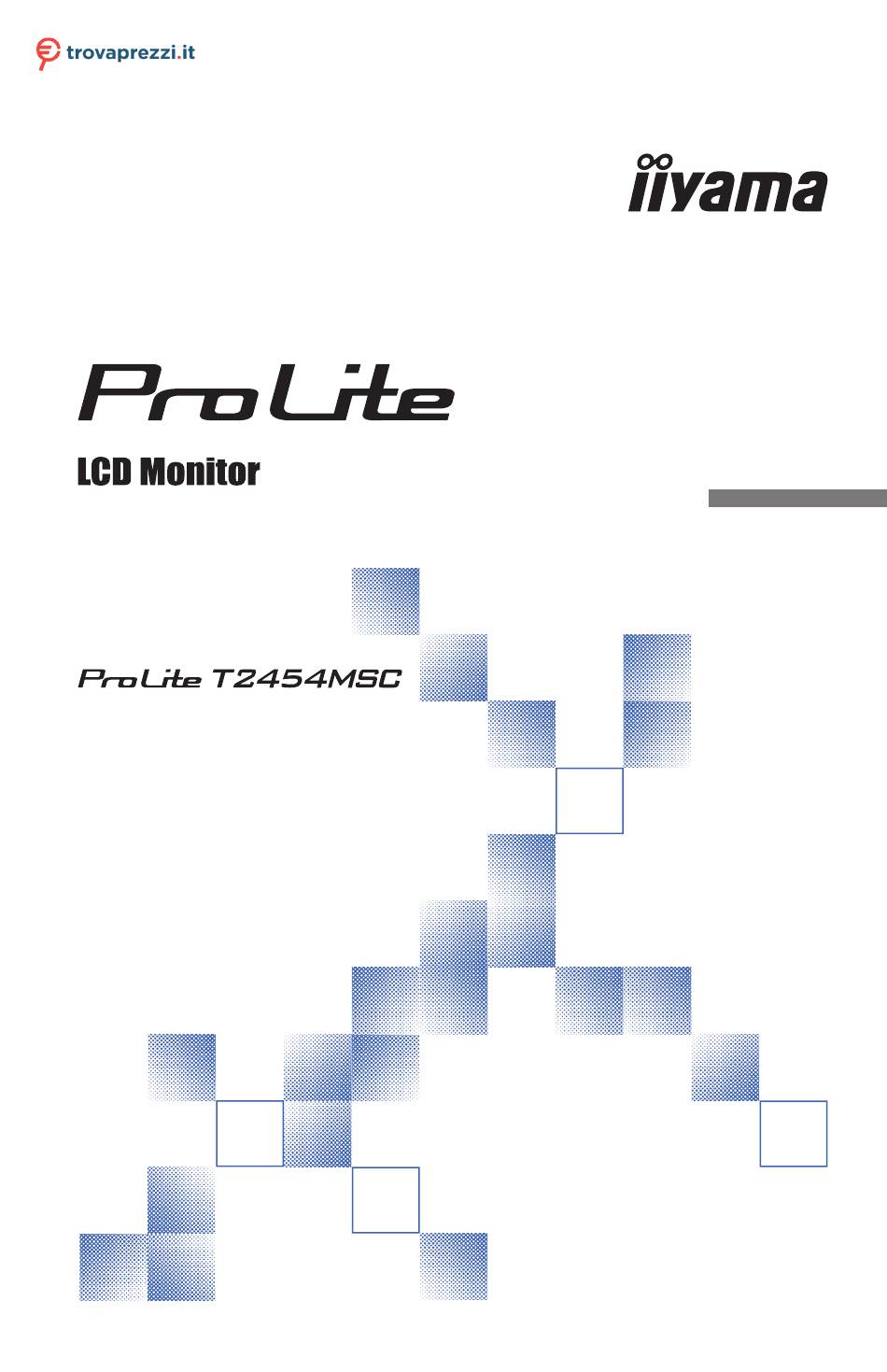

T2454MSC-B1AG
USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.
o cerca il tuo prodotto tra le
migliori offerte di Monitor
iiyama ProLite
ENGLISH
Advertisement
Table of Contents
Related Manuals for Iiyama ProLite T2454MSC-B1AG
Summary of Contents for Iiyama ProLite T2454MSC-B1AG
- Page 1 Monitor USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor.
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLT2454M We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 CONTROLS AND CONNECTORS..........6 CONNECTING YOUR MONITOR ...........7 COMPUTER SETTING ..............8 ADJUSTING THE VIEWING ANGLE ..........9... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
CUSTOMER SERVICE If you have to return your unit for service and the original packaging has been NOTE discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Auto Button (AUTO) + Button ( + ) - Button ( - ) Menu Button (MENU) Power Switch ( ) Speakers USB Downstream Connector ( Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed NOTE without your permission. -
Page 11: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 12: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 24: COMPLIANT TIMING. TOUCH support operation system Mouse Digitizer Gestures* Windows8/8.1/10 Windows7 Windows Vista Windows XP Mac OS/OS X Linux Android Mouse function Click Right-Click Mouse &... -
Page 13: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE NOTE Do not touch the Touch screen when you change the angle. It may cause damage or break the Touch screen and LCD screen. Careful attention is required not to catch your fingers or hands when you change the angle. For optimal viewing it is recommended to look at the full face of the monitor. ... -
Page 14: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS. -
Page 15: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust ProLite T2454MSC PICTURE ADJUST BRIGHTNESS GEOMETRY COLOR SETTINGS CONTRAST MODE1 EXTRA I-STYLE COLOR STANDARD ADV. CONTRAST Adjustment Item Problem / Option Button to Press Too dark Brightness * Too bright Too dull Contrast Too intense Normal Mode1 Brightness of back-light is reduced. - Page 16 Geometry ProLite T2454MSC PICTURE ADJUST GEOMETRY GEOMETRY PIXEL CLOCK COLOR SETTINGS PHASE HORIZONTAL POSITION EXTRA VERTICAL POSITION ASPECT FULL Adjustment Item Problem / Option Button to Press Too narrow Pixel Clock* Too wide Phase* To correct flickering text or lines Too left Horizontal Position* Too right Too low Vertical Position* Too high...
- Page 17 Color Settings* ProLite T2454MSC PICTURE ADJUST COLOR SETTINGS GEOMETRY MODE1 GAMMA COLOR SETTINGS COLOR TEMP USER USER PRESET EXTRA GREEN BLUE Adjustment Item Problem / Option Button to Press Mode1 Normal Gamma Mode2 High contrast Mode3 Dark Too weak Green User Too strong Blue...
- Page 18 ProLite T2454MSC PICTURE ADJUST ON SCREEN DISPLAY SETTINGS GEOMETRY OSD HORIZONTAL POSITION COLOR SETTINGS OSD VERTICAL POSITION OSD TIME EXTRA LANGUAGE ENGLISH Auto Power Off Touch Wake Up Adjustment Item Problem / Option Button to Press OSD is too left OSD Horizontal Position OSD is too right OSD is too low...
- Page 19 It is only possible when you set a specific source. HDMI Select the HDMI input. Audio Input* LINE IN Select the LINE IN input. iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on. The Power Indicator is turned Off. The Power Indicator is turned On.
- Page 20 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Volume: Press the + Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Auto Adjust: Press and hold the Auto Button for 3-4 seconds when the Menu is not displayed.
-
Page 21: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). Adjust the image by following the procedure below to get the desired picture. - Page 22 Press and hold the Auto Button for 3-4 seconds when the Menu is not displayed. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 23 Adjust the FINE to correct horizontal wavy noise, flicker or blur in the zebra pattern. In case the strong flicker or blurs remain on a part of the screen, repeat steps NOTE because the H-SIZE may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 24: Power Management Feature
POWER MANAGEMENT FEATURE When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. -
Page 25: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 26: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 22 Recycling information... -
Page 27: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS Technology Projected capacitive Touch Screen Communication system Size Category 24" Panel technology Size Diagonal: 23.8" (60.47cm) Pixel pitch 0.2745mm H × 0.2745mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical: with Touch Panel) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 4ms (Gray to Gray) Display Colors Approx.16.7M Analog: Horizontal: 30.0-80.0kHz, Vertical: 56-75Hz Sync Frequency Digital: Horizontal: 30.0-80.0kHz, Vertical: 56-75Hz... -
Page 28: Dimensions
DIMENSIONS 540.5mm/21.3” 46.5mm/1.8” 534.5mm/21.0” 230.0mm/9.1” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
