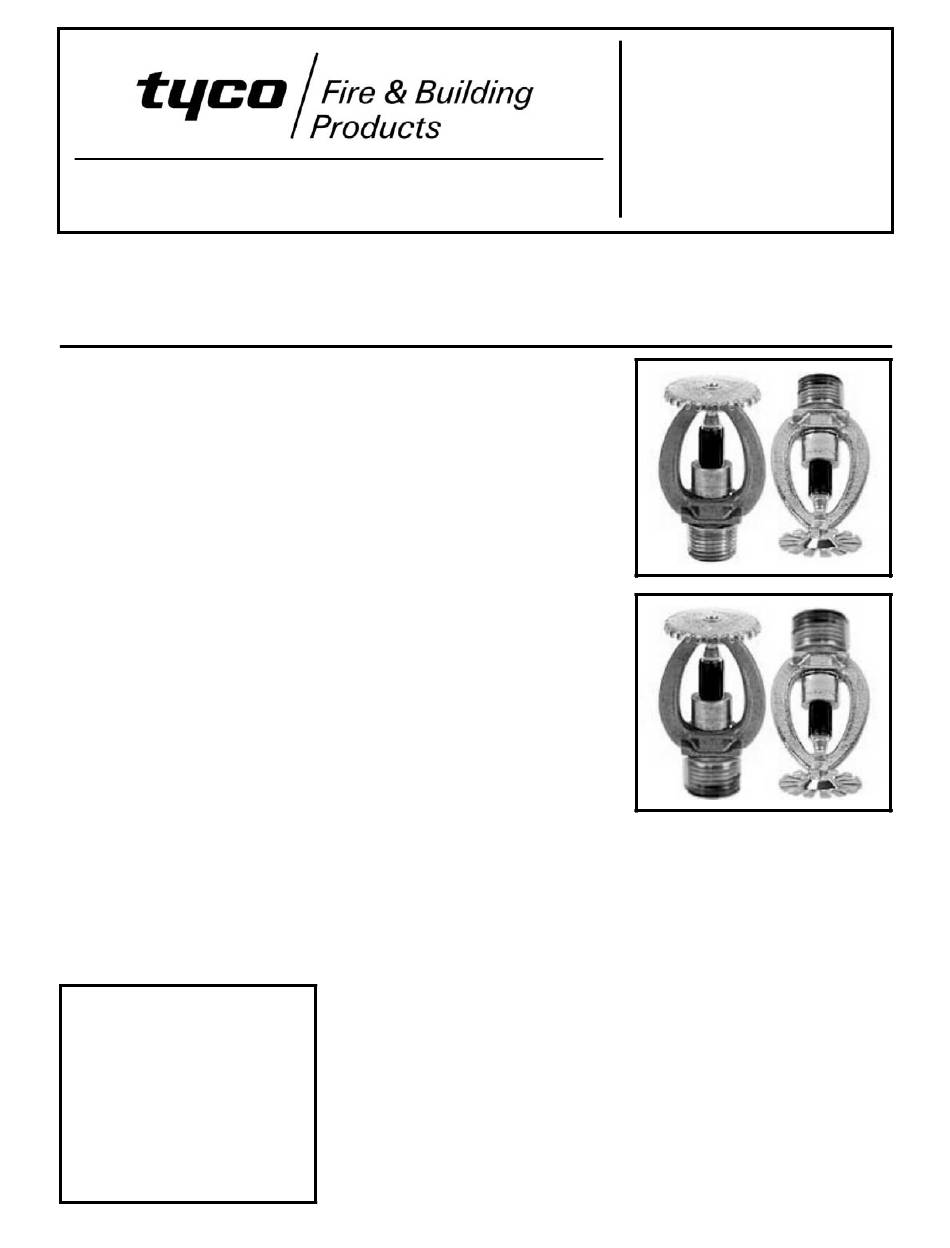

Issue D Quartzoid
High Temperature, Upright and Pendent Sprinklers
Standard Response, Standard Coverage
General
Description

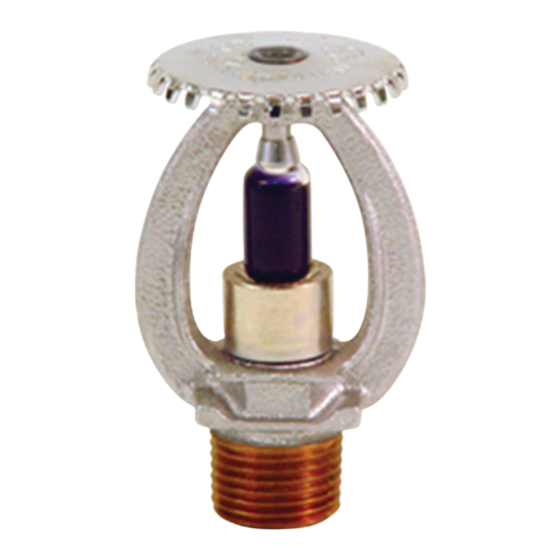

The Issue D, 5.6 and 8.0 K-factor,
Upright and Pendent Sprinklers de-
scribed in this data sheet are standard
response - standard coverage, 11 mm
glass bulb type spray sprinklers de-
signed for use in light, ordinary, or
extra hazard, commercial occupan-
cies where high ambient temperatures
may be encountered.
Corrosion resistant coatings, where
applicable, are utilized to extend the
life of copper alloy sprinklers beyond
that which would otherwise be ob-
tained when exposed to corrosive at-
mospheres. Although corrosion resis-
tant coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently, it
is recommended that the end user be
consulted with respect to the suitability
of these coatings for any given corro-
sive environment. The effects of ambi-
ent temperature, concentration of
chemicals, and gas/chemical velocity,
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
WARNINGS
The Issue D Sprinklers described
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
® — 5.6 and 8.0 K-factor
herein must be installed and main-
tained in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association, in addition to the
standards of any other authorities hav-
ing jurisdiction. Failure to do so may
impair the performance of these de-
vices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Model/Sprinkler
Identification
Numbers
TY3191 - Upright 5.6K, 1/2"NPT
TY3296 - Pendent 5.6K, 1/2"NPT
TY4191 - Upright 8.0K, 3/4"NPT
TY4292 - Pendent 8.0K, 3/4"NPT
TY3191 is a redesignation for G1036.
TY3296 is a redesignation for G1040.
TY4191 is a redesignation for G1136.
TY4292 is a redesignation for G1140.
Technical
Data
Approvals
UL and C-UL Listed.
FM Approved.
(Refer to Table A for complete ap-
proval information including corrosion
resistant status.)
Maximum Working Pressure
175 psi (12,1 bar).
Discharge Coefficient
1/2
K = 5.6 GPM/psi (80,6 LPM/bar
1/2
K = 8.0 GPM/psi (115,2 LPM/bar
Temperature Ratings
Refer to Table A.
DECEMBER, 2007
Finishes
Refer to Table A
Physical Characteristics
Frame . . . . . . . . . . . . Bronze
Deflector . . . . . . . . . . . Bronze
Bulb (11mm dia.) . . . . . . . Glass
Bulb Seats . . . . . . . . . . Bronze
Spacer . . . . . . . . . . . . Bronze
Pin . . . . . . . . . . . . . . Bronze
Button . . . . . . . . . . . . Bronze
Spring Plates . . . . . . . . Inconel
Gaskets . . . . . . . . . . . Copper
1/2
)
1/2
)
