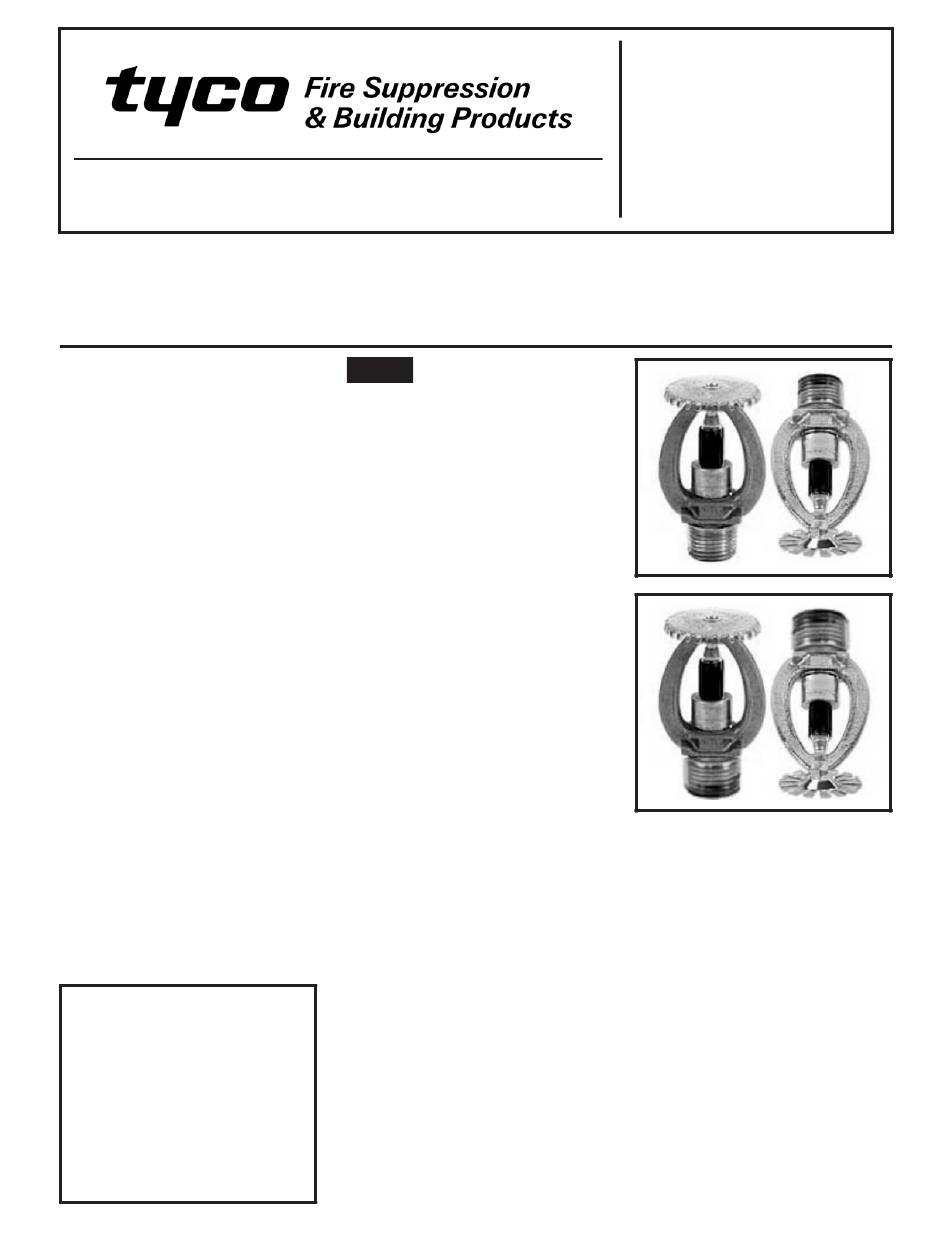

Issue D Quartzoid
High Temperature, Upright and Pendent Sprinklers
Standard Response, Standard Coverage
General
Description
®
The Tyco Issue D, 5.6 and 8.0 K-fac-
tor, Upright and Pendent Sprinklers
described in this data sheet are stand-
ard response - standard coverage, 11
mm glass bulb type spray sprinklers
designed for use in light, ordinary, or
extra hazard, commercial occupan-
cies where high ambient temperatures
may be encountered.
Corrosion-resistant coatings, where
applicable, are utilized to extend the
life of copper alloy sprinklers beyond
that which would otherwise be ob-
tained when exposed to corrosive at-
mospheres. Although corrosion-resis-
tant coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently, it
is recommended that the end user be
consulted with respect to the suitability
of these coatings for any given corro-
sive environment. The effects of ambi-
ent temperature, concentration of
chemicals, and gas/chemical velocity
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
— 5.6 and 8.0 K-factor
®
NOTICE
The Issue D Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association, in addition to the
standards of any authorities having ju-
risdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Model/Sprinkler
Identification
Numbers
TY3191 - Upright 5.6K, 1/2" NPT
TY3296 - Pendent 5.6K, 1/2" NPT
TY4191 - Upright 8.0K, 3/4" NPT
TY4292 - Pendent 8.0K, 3/4" NPT
TY3191 is a redesignation for G1036.
TY3296 is a redesignation for G1040.
TY4191 is a redesignation for G1136.
TY4292 is a redesignation for G1140.
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
(Refer to Table A for complete ap-
proval information including corrosion
resistant status.)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
1/2
K = 5.6 GPM/psi (80,6 LPM/bar
1/2
K = 8.0 GPM/psi (115,2 LPM/bar
Temperature Ratings
Refer to Table A.
SEPTEMBER 2009
Finishes
Refer to Table A.
Physical Characteristics
Frame . . . . . . . . . . . . Bronze
Deflector . . . . . . . . . . . Bronze
Bulb (11mm dia.) . . . . . . . Glass
Bulb Seats . . . . . . . . . . Bronze
Spacer . . . . . . . . . . . . Bronze
Pin . . . . . . . . . . . . . . Bronze
Button . . . . . . . . . . . . Bronze
Spring Plates . . . . . . . . Inconel
Gaskets . . . . . . . . . . . Copper
1/2
)
1/2
)
TFP690
