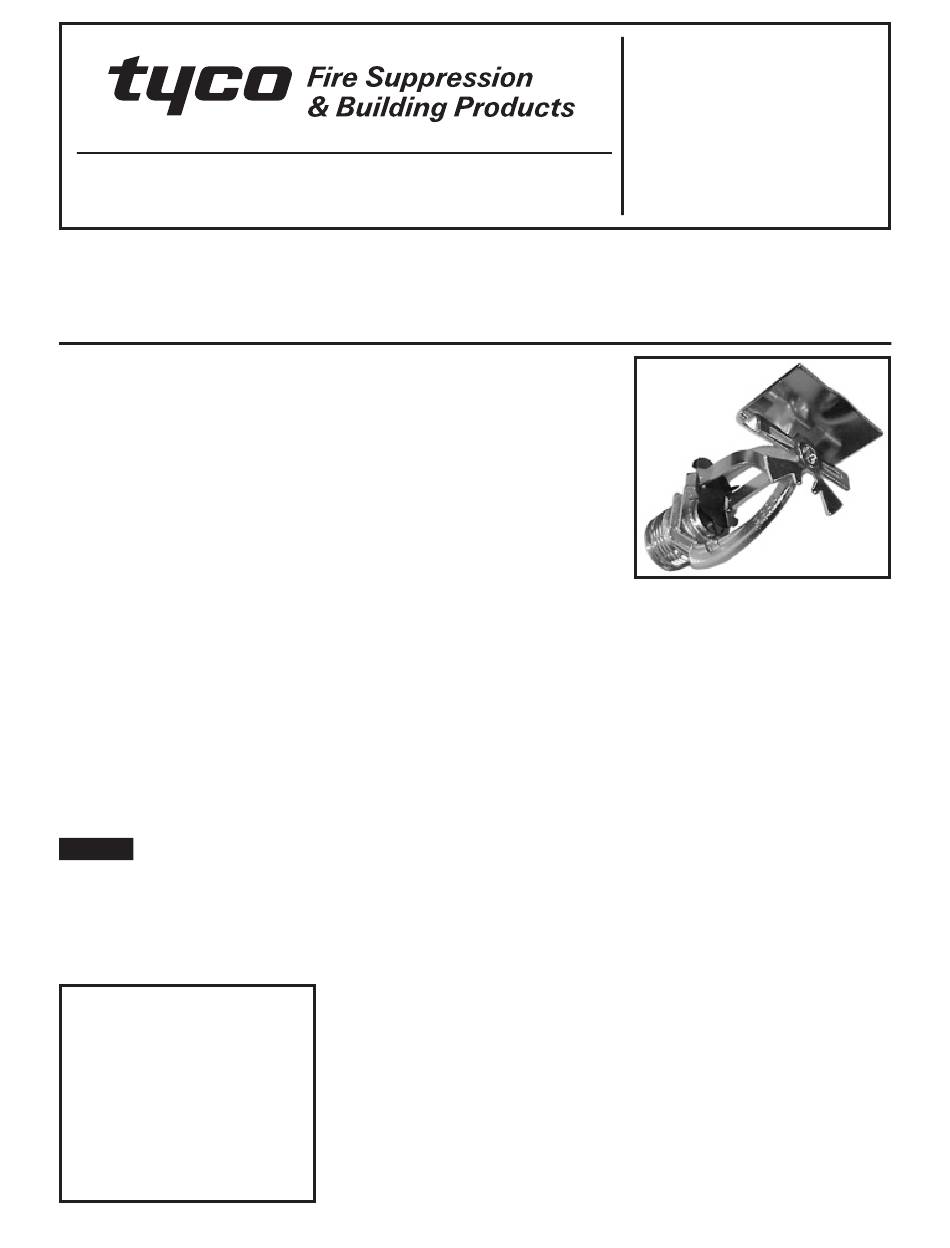

Series TY-FRL — 5.6 and 8.0 K-factor
Extended Coverage Horizontal Sidewall Sprinklers
Quick & Standard Response (Light Hazard)
General
Description
The Series TY-FRL, 5.6, and 8.0
K-factor, Extended Coverage Horizon-
tal Sidewall Sprinklers are solder type
spray sprinklers designed for use in
hydraulically calculated sprinkler sys-
tems in light hazard, commercial oc-
cupancies such as churches, restau-
rant seating areas, hotels, educational
facilities, offices, etc. With their cover-
age up to 16 feet (4,9 m) wide by 24
feet (7,3 m) long, they are designed for
installation along a wall or the side of a
beam and just beneath a smooth, flat,
horizontal ceiling. Horizontal sidewall
sprinklers are commonly used instead
of pendent or upright sprinklers due
to aesthetics or building construction
considerations where piping across
the ceiling is not desirable.
The fast response thermal sensitiv-
ity rating of the Series TY-FRL pro-
vides for a quick response extended
cover age (QREC) rating for many of
the coverage areas detailed in Tables
B and C.
notice
The Series TY-FRL Sprinklers de-
scribed herein must be installed and
maintained in compliance with this
document, as well as with the appli-
cable standards of the National Fire
Pro tection Association, in addition to
iMPoRtAnt
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
the standards of any other authorities
having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions
Sprinkler
Identification
Number
TY3322 — EC HSW, 5.6K, 1/2"NPT
TY4322 — EC HSW, 8.0K, 3/4"NPT
TY3322 is a redesignation for S1888
and G8970.
TY4322 is a redesignation for S1868
and G8170.
Technical
Data
Approvals
UL and C-UL Listed.
FM and NYC Approved.
(Refer to Table A for complete approv-
al information, as well as the Design
Criteria Section pertaining to special
design considerations.)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
K = 5.6 GPM/psi 1/2 (80,6 LPM/bar
1/2
K = 8.0 GPM/psi (115,2 LPM/bar
Temperature Ratings
Refer to Table A
Finishes
Sprinkler: Refer to Table A
MARCH, 2009
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . Bronze
Strut . . . . . . . . . . . . . . . . . . . . . .Monel
Deflector . . . . . . . . . . . . . . . . . Bronze
Hook . . . . . . . . . . . . . . . . . . . . .Monel
Link Assembly . . . . . . . . . . . . . .Nickel
Ejection Spring . . . . . . . . . . . . Inconel
Button . . . . . . . . . . . . . . . . . . . Bronze
Seal . . . . . . . . . . . . . . . . . . . . . Teflon†
† DuPont Registered Trademark
Operation
The fusible link (heat collector) assem-
bly is comprised of two halves that
are joined together by a thin layer of
solder. When the rated temperature
is reached, the solder melts and the
two link halves separate, allowing the
sprinkler to operate.
Design
Criteria
The Series TY-FRL Extended Cov-
1/2 )
erage Horizontal Sidewall Sprinklers
1/2
)
must be installed and utilized in Light
Hazard Occupancies, under smooth,
flat, horizontal ceilings as outlined in
the applicable installation standard
recognized by the Approval Agency
(e.g., UL recognizes NFPA 13, and FM
recognizes the FM Loss Prevention
Data Sheets). Installation of the Series
TY-FRL Horizontal Sidewall Sprinklers
in recessed escutcheons will void all
TFP280
