Tyco EC-5 Series Quick Start Manual

Series EC-5 — 5.6 K-factor
Extended Coverage (Light Hazard)

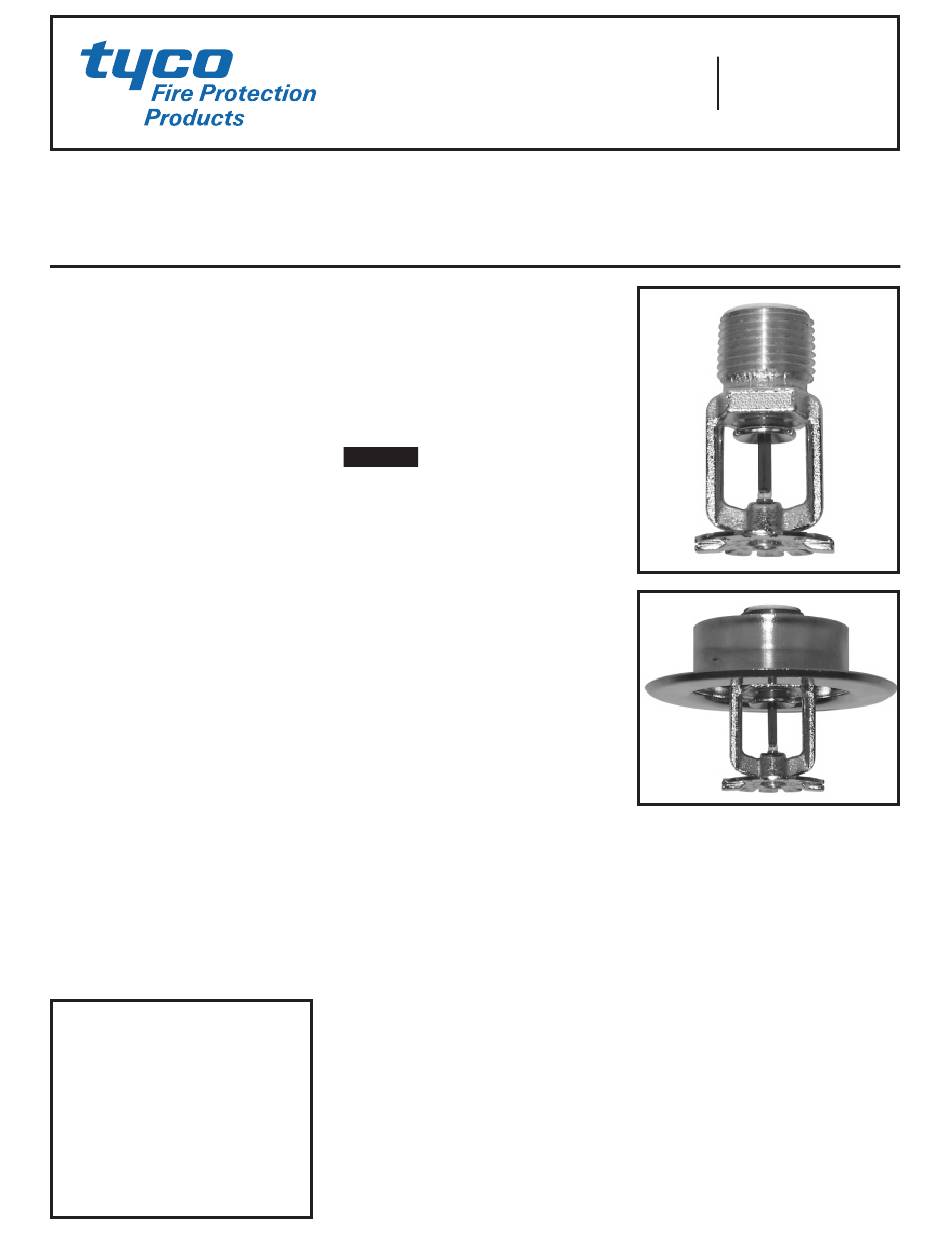

Pendent and Recessed Pendent Sprinklers
General
Description
The Series EC-5 Extended Cover-
age Pendent Sprinklers are decora-
tive glass bulb sprinklers designed
for use in light hazard occupancies.
They are intended for use in automatic
sprinkler systems designed in accor-
dance with standard installation rules
(e.g., NFPA 13) for a maximum cover-
age area of 400 ft 2 (37,2 m
pared to the maximum coverage area
of 225 ft 2 (20,6 m 2 ) for standard cov-
erage sprinklers used in light hazard
occupancies.
The recessed version of the EC-5, in-
tended for use in areas with a finished
ceiling, uses the two-piece Style 50
Recessed Escutcheon. The Style 50
Recessed Escutcheon provides up to
3/8 inch (9,5 mm) of total adjustment
from the flush pendent position. The
adjustment provided by the Recessed
Escutcheon reduces the accuracy
to which the fixed pipe drops to the
sprinklers must be cut.
Corrosion resistant coatings, where
applicable, are utilized to extend the
life of copper alloy sprinklers beyond
that which would otherwise be ob-
tained when exposed to corrosive at-
mospheres. Although corrosion resis-
tant coated sprinklers have passed
the standard corrosion tests of the ap-
plicable approval agencies, the test-
ing is not representative of all possible
corrosive atmospheres. Consequent-
ly, it is recommended that the end
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cau-
tions with respect to handling
and installation of sprinkler sys-
tems and components. Improp-
er handling and installation can
permanently damage
kler system or its components
and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
user be consulted with respect to the
suitability of these corrosion resistant
coatings for any given corrosive envi-
ronment. The effects of ambient tem-
perature, concentration of chemicals,
and gas/chemical velocity, should be
considered, as a minimum, along with
the corrosive nature of the chemical to
which the sprinklers will be exposed.
NOTICE
The Series EC-5 Extended Coverage
2 ), as com-
Pendent Sprinklers described here-
in must be installed and maintained
in compliance with this document, as
well as with the applicable standards
of the National Fire Protection Asso-
ciation, in addition to the standards of
any other authorities having jurisdic-
tion. Failure to do so may impair the
performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Sprinkler
Identification
Number
TY3232 - Pendent, 5.6K
TY3232 is a re-designation for C3232
Technical
Data

Approvals

UL and C-UL Listed. FM and NYC Ap-
proved. (Refer to Table A for complete
approval information including corro-
sion resistant status. The approvals
apply to the service conditions indi-
cated in the Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
a sprin-
1/2 inch NPT
MARCH 2014
Worldwide
www.tyco-fire.com
Contacts
Discharge Coefficients
1/2
K = 5.6 GPM/psi
1/2
(K = 80,6 LPM/bar )
Temperature Ratings
135°F (57°C) and 155°F (68°C)
Finish
Sprinkler: Refer to Table A
Recessed Escutcheon: Brass Plated,
Signal White, or Chrome Plated
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Sealing Assembly . . . . . . . . . . . . . . . . Beryllium
Nickel w/TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . .Glass (3 mm dia.)
Compression Screw . . . . . . . . . . . . . . . . Bronze
Deflector. . . . . . . . . . . . . . . . . . . . . . . . . . . Brass
TFP228
