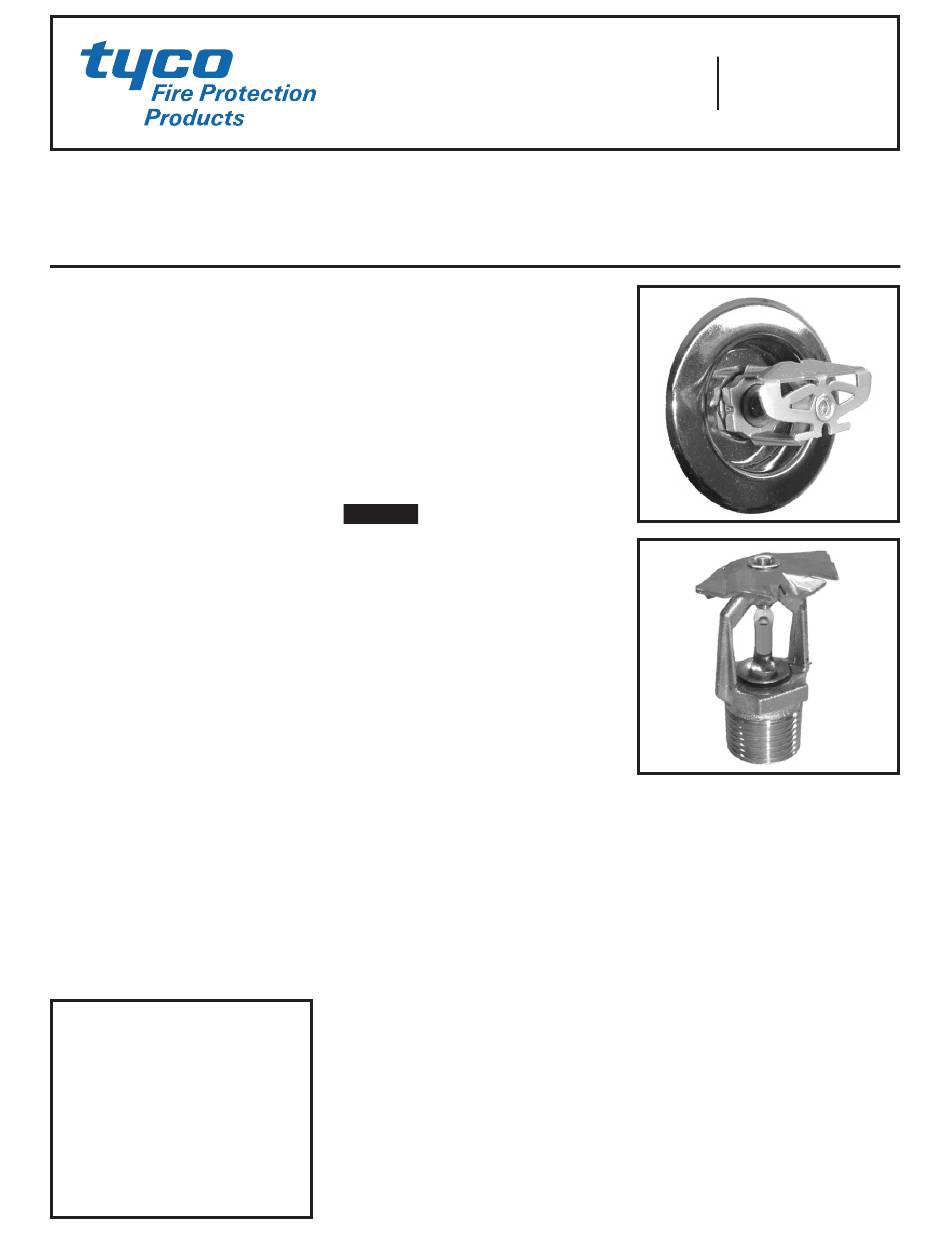

Series TY-B – 5.6 K-factor
Horizontal and Vertical Sidewall Sprinklers
Standard Response, Standard Coverage
General
Description
The TYCO Series TY-B, 5.6 K-factor,
Horizontal and Vertical Sidewall Sprin-
klers described in this technical data
sheet are standard response, standard
coverage decorative 5 mm glass bulb
type spray sprinklers designed for use
in light and ordinary hazard, commercial
occupancies such as banks, hotels, and
shopping malls.
They are designed for installation along
a wall or the side of a beam and just
beneath a smooth ceiling. Sidewall
sprinklers are commonly used instead
of pendent or upright sprinklers due to
aesthetics or building construction con-
siderations, where piping across the
ceiling is not desirable.
The recessed version of the Series TY-B
Horizontal Sidewall Sprinkler is intend-
ed for use in areas with a finished wall.
It uses a two-piece Style 10 Recessed
Escutcheon. The Recessed Escutcheon
provides 1/2 inch (12,7 mm) of recessed
adjustment or up to 3/4 inch (19,1 mm)
of total adjustment from the flush side-
wall position. The adjustment provided
by the Recessed Escutcheon reduces
the accuracy to which the fixed pipe
nipples to the sprinklers must be cut.
Corrosion-resistant coatings, where
applicable, are utilized to extend
the life of copper alloy sprinklers
beyond that which would otherwise be
obtained when exposed to corrosive
atmospheres. Although corrosion re-
sistant coated sprinklers have passed
the standard corrosion tests of the ap-
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
plicable approval agencies, the test-
ing is not representative of all possible
corrosive atmospheres. Consequently,
it is recommended that the end user
be consulted with respect to the suit-
ability of these coatings for any given
corrosive environment. The effects of
ambient temperature, concentration of
chemicals, and gas/chemical velocity,
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
NOTICE
The Series TY-B Sprinklers described
herein must be installed and maintained
in compliance with this document, as
well as with the applicable standards of
the National Fire Protection Association,
in addition to the standards of any oth-
er authorities having jurisdiction. Failure
to do so may impair the performance of
these devices.
The owner is responsible for maintaining
their fire protection system and devices
in proper operating condition. Contact
the installing contractor or product man-
ufacturer with any questions.
Sprinkler
Identification
Numbers
TY3351 – Horizontal Sidewall
TY3451 – Vertical Sidewall
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
LPCB Approved
VdS Approved
NYC Approved
(Refer to Table A for complete approval
information, including corrosion-resis-
tant status.)
Maximum Working Pressure
Refer to Table B.
NOVEMBER 2014
Worldwide
www.tyco-fire.com
Contacts
Discharge Coefficient
K=5.6 gpm/psi
1/2
(80,6 lpm/bar
Temperature Ratings
Refer to Table A.
Finishes
Sprinkler: Refer to Table C.
Recessed Escutcheon: Signal or Pure
White, Jet Black, Chrome Plated, or
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . Bronze
Button. . . . . . . . . . . . . . Brass/Copper
Sealing Assembly. . . Beryllium Nickel
Bulb . . . . . . . . . . . . . . . . . . . . . .Glass
Compression Screw. . . . . . . . Bronze
HSW Deflector . . . . . . . . . . . . Bronze
VSW Deflector . . . . . . . . . . . . Copper
1/2
)
w/TEFLON
TFP161

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TY-B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tyco TY-B Series

  • Page 1 Consequently, it is recommended that the end user be consulted with respect to the suit- The TYCO Series TY-B, 5.6 K-factor, ability of these coatings for any given Horizontal and Vertical Sidewall Sprin- corrosive environment. The effects of...
  • Page 2: Operation

    1/2" Criteria 9/16" FLATS (14,3 mm) The TYCO Series TY-B, 5.6 K-factor, Horizontal and Vertical Sidewall Sprin- klers are intended for fire protection systems designed in accordance with the standard installation rules recog- nized by the applicable Listing or Ap- proval agency (for example, UL Listing 1-13/16"...
  • Page 3 TFP161 Page 3 of 6 Temperature Pipe thread Frame Bulb Ejection rating is connections Spring Button Compression indicated on per ISO 7-1 can Screw Sealing De ector. be provided on 6 - De ector WRENCH RECESS Assembly (END "A" USED FOR special request.
  • Page 4: Temperature Rating

    Horizontal Sidewall Sprinklers Step C. Tighten the sprinkler into the sprinkler fitting using only the W-Type 7 The TYCO Series TY-B Recessed Hori- Recessed Sprinkler Wrench (Ref. Figure zontal Sidewall Sprinklers must be in- 5). With reference to Figure 1, apply the...
  • Page 5: Care And Maintenance

    Sprinklers damaged by dropping, striking, wrench twist/ slippage, or the like, must be replaced. The TYCO Series TY-B, 5.6 K-factor, Also, replace any sprinkler that has a Horizontal and Vertical Sidewall Sprin- cracked bulb or that has lost liquid from klers must be maintained and serviced its bulb.
  • Page 6: Limited Warranty

    Specify: W-Type 6 Sprinkler Wrench, P/N 56-000-6-387 Specify: W-Type 7 Sprinkler Wrench, P/N 56-850-4-001 GLOBAL HEADQUARTERS | 1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone +1-215-362-0700 Copyright © 2014 Tyco Fire Products, LP. All rights reserved. TEFLON is trademark of the DuPont Corporation.
