Bornack VISION User Manual

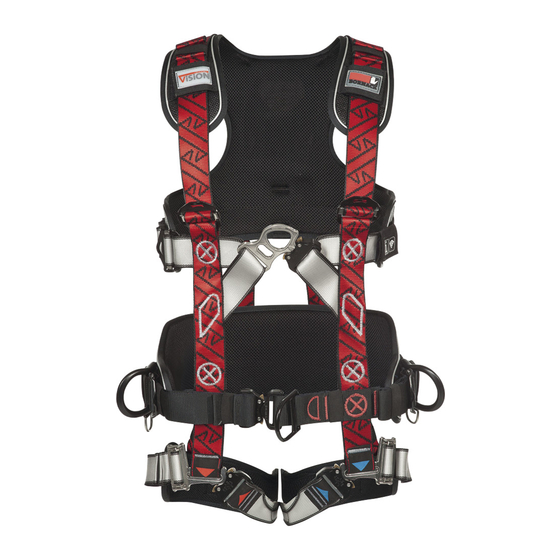

Full body harness
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
VISION
User Manual
0158 EN 358:2018, EN 361:2002, EN 813:2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISION and is the answer not in the manual?

Questions and answers

Related Manuals for Bornack VISION

Summary of Contents for Bornack VISION

  • Page 1 VISION User Manual 0158 EN 358:2018, EN 361:2002, EN 813:2008...

  • Page 2: Brief Description

    Subject to technical changes BRIEF DESCRIPTION INTENDED USE EQUIPMENT The full body harness VISION is part of personal • Rear D-ring made of steel protective equipment (PPE) of category III to • Front D-ring made of steel prevent falls from heights. The full body •...
  • Page 3 BRIEF DESCRIPTION • Arresting • Lowering • Climbing with a guided type fall arrester with a flexible or rigid anchorage line • Positioning • Retention • Rescue...
  • Page 4 4 | 5 FULL BODY HARNESS VISION Shoulder strap AIR COMFORT shoulder pads EASY GLIDE Front D-ring buckle EN 361 CLICK PRO All-round Fastener chest strap Identification / label / RFID AIR COMFORT hip padding D-rings on the side EN 358...
  • Page 5 FULL BODY HARNESS VISION REAR SIDE Rear D-ring EN 361 Rear material loops Material loop Vertical leg straps...

  • Page 6: Information Before Use

    • Faulty PPE may only be tested or repaired by a • Are there any obvious signs of damage to the workshop authorised by BORNACK. fittings, D-rings, buckles, karabiners? • The user must have completely read and • The last inspection by an expert was carried understood the User Manual before use.
  • Page 7 VISION IN USE PREPARATION A Lift the harness of the rear arresting D-ring. All CLICK PRO/LIGHT/T fasteners must be open. Straps must hang freely and may not be twisted B Put on the arrester harness like a jacket: Arms through the shoulder straps.
  • Page 8 8 | 9 VISION IN USE ATTENTION: Straps must offer enough freedom of move- ment and may not cut off circulation in the veins. CAUTION: RISK TO LIFE! If the harness straps, fasteners and D-rings/ loops of the harness are not put on or set correctly, there is a risk of falling.
  • Page 9 VISION IN USE EASY GLIDE BUCKLE G This buckle is only for adjusting the length of the harness strap. • Tilt the buckle. • Pull the open strap to tighten until the re- quired position is reached. To release/loos- en the buckle, tilt and then pull it. When...

  • Page 10: Application Variants

    10 | 11 VISION IN USE APPLICATION VARIANTS I Attachment points must be adequately strong, according to EN 795, and should be positioned above the user. ATTENTION: Do not select an anchor point to the side of the secured person! Otherwise, the person could bang laterally into parts or a wall.
  • Page 11 VISION IN USE Restraint: K When setting, ensure that the side D-rings are at waist height. Set the vertical leg straps loosely for more comfort. To do this, tilt the EASY GLIDE buckles at the back and bend for- ward.
  • Page 12 12 | 13 VISION IN USE COMBINATION When combining this product with other parts, there is a risk of mutual impairment with respect to the function and safety. Compatibili- ty must be assessed during the risk analysis. Only combine with personal protective equip- ment that bears a CE symbol.
  • Page 13 (situation-dependent) + braking path Social Accident Insurance) principle 312-906, energy absorber (max. 1.75 m) + height of by BORNACK or by a workshop authorised in D-ring (1.5 m) + safety reserve 1.0 m. writing by BORNACK. This must be document- •...

  • Page 14: Safety Regulations

    14 | 15 SAFETY REGULATIONS • The local safety guidelines (e.g. in Germany, the DGUV Regulations 112-198 and 112-199 issued by the professional associations) and the accident prevention guidelines for the specific industry (UVV) must be observed. • Application temperature: -20 °C to +80 °C. •...

  • Page 15: Maintenance

    SERVICE Complies with the Regulation (EU) 2016/425 for If you have any further questions about safe PPE. use of this PPE or other BORNACK services, such EU type testing (Module B) and production monitoring (Module C2) by: • Risk analysis DEKRA Testing and Certification GmbH •...
  • Page 16 For more details, please visit www.bornack.de. • If necessary, use compressed air to blow on the unit.
  • Page 17 OTHER TRANSPORT • Protected transport in the device case or device bag.

  • Page 18: Product Identification

    18 | 19 OTHER PRODUCT IDENTIFICATION The following identification is on the product: Product name Logo Product category Type Size Item number Handling buckles CE symbol and Observe/read the number of the User Manual. test office Charge Serial number EN norms Production date Data matrix Max.

  • Page 19: Eu Declaration Of Conformity

    EU DECLARATION OF CONFORMITY...
  • Page 20 Serial no.: __________________________ from his decision about the overall condi- tion. Purchase date: ______________________ Manufacturer: Date of first Use: ____________________ BORNACK GmbH & Co.KG info@bornack.de Maximum life span until: ______________ www.bornack.de Application field: ____________________ Next Date Signature...
  • Page 21 TEST CARD FOR ANNUAL MONITORING Please complete: deficient Year Year Year Year Year Year Year Year Year Year Strap undamaged? Seam patterns undamaged? Strap ends secured/sewn down? Fittings are in place and undamaged? No deformation of metal parts? Plastic parts are in place and undamaged? EASY-GLIDE buckle not deformed and smooth running?
  • Page 22 22 | 23 Notes:...
  • Page 23 Notes:...
  • Page 24 Tel + 49 (0) 70 62 / 26 90 0-0 Fax + 49 (0) 70 62 / 26 90 0-550 info@bornack.de www.bornack.de © BORNACK – Subject to technical changes Reprinting or duplication, even of excerpts, is only permitted with written con- sent Status: 07/2020 GAL Art.-No. 8000105_EN ebo...
