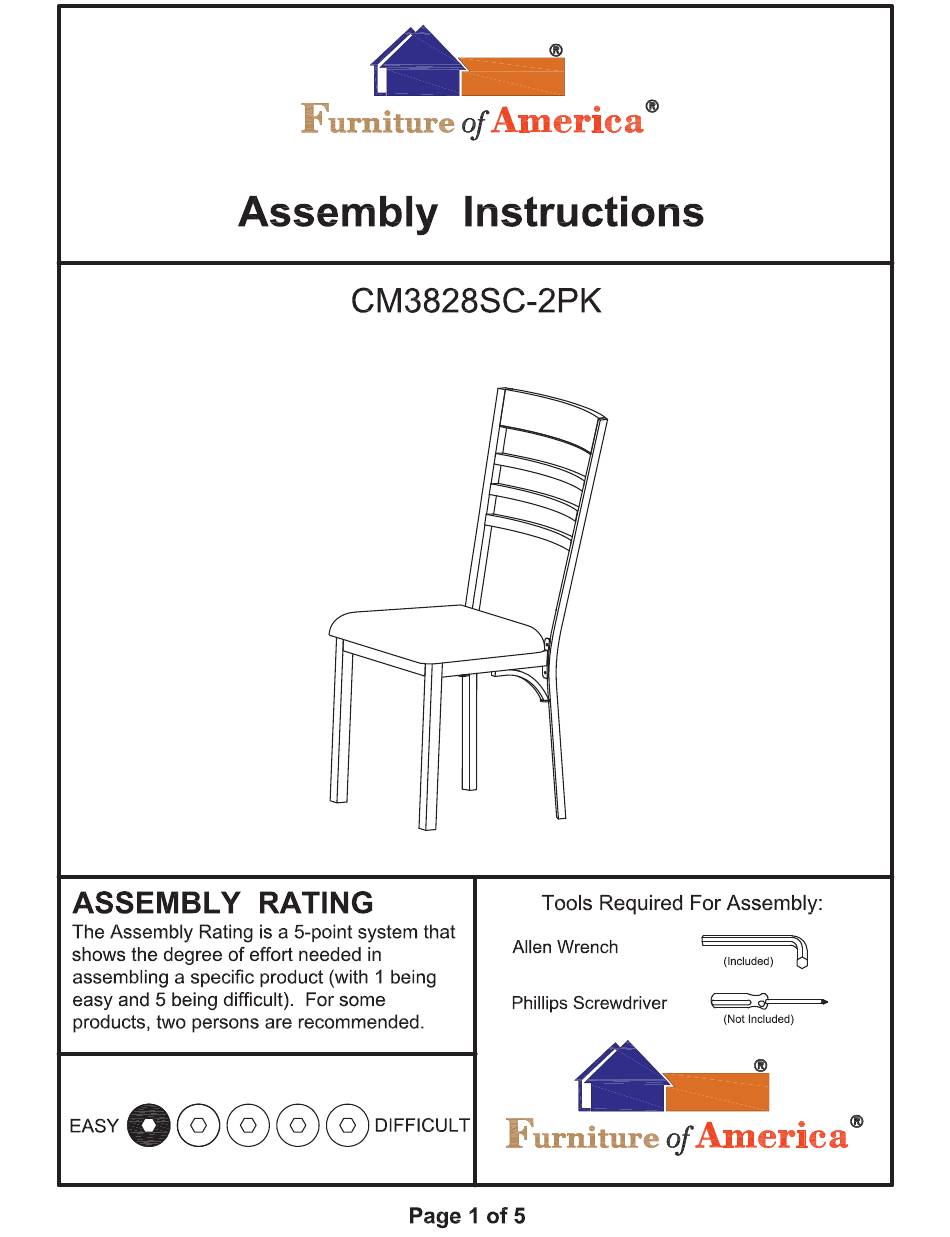

- Page 1 Rev: 15-09-01...
- Page 3 Screw...
- Page 4 1. Align the stretcher bar (#4) from below to the holes along the sides of the leg stands (#3R/L). 2. Insert 2 bolts (#A) into each side and secure using the Allen wrench. Note: Right and left is determined by facing the back of the chair in its upright position.
- Page 5 1. Align the right stretcher support (#5R) to the bottom of the right leg stand (#3R) and backrest w/legs (#1). 2. Insert a bolt (#A) to the top end and secure using the Allen wrench. 4. Repeat the process 3. Insert a bolt (#B) into the for the left stretcher bottom end and secure support (#5L).
