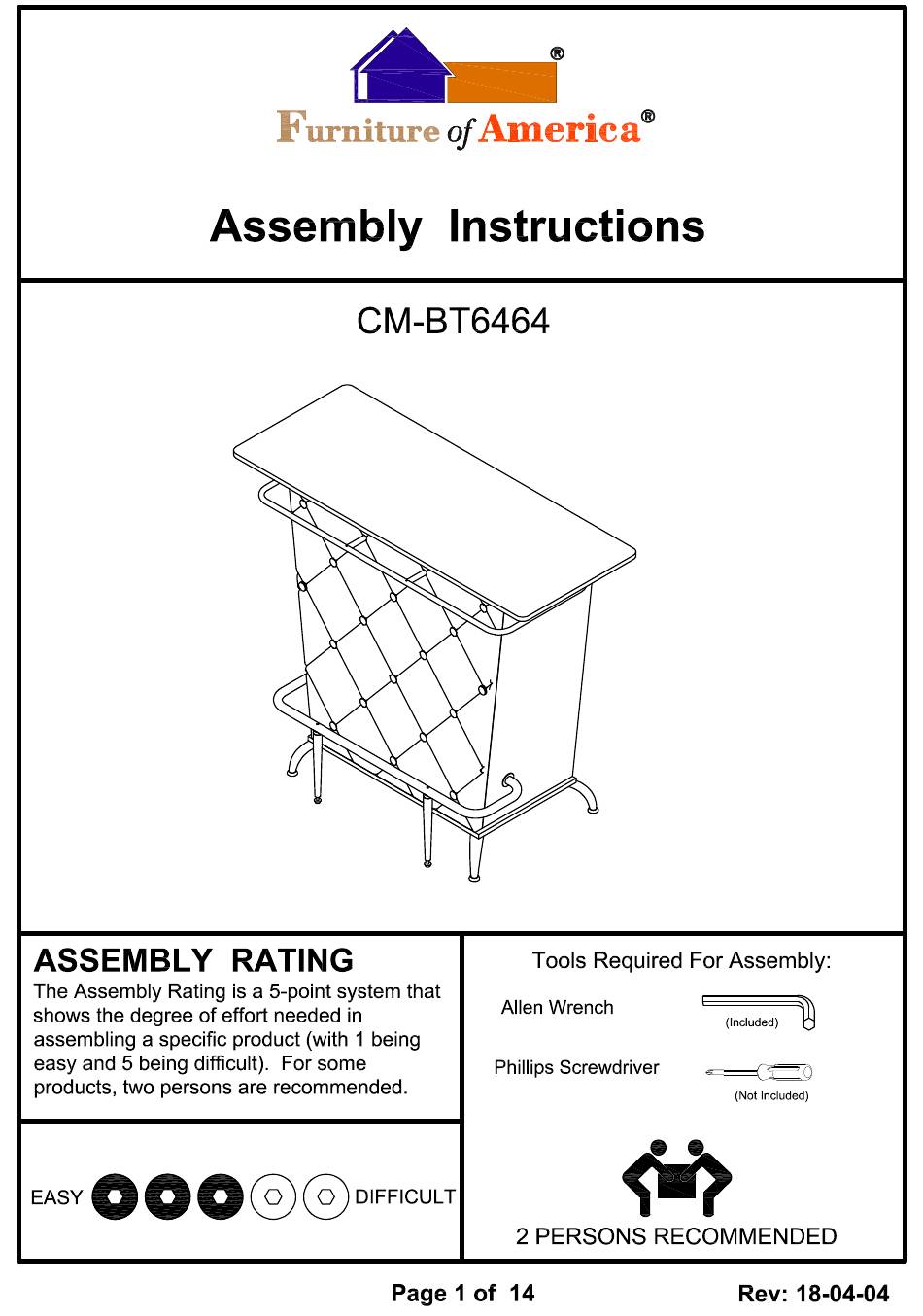

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 7 1) Attach cam bolts (#H) onto panels (#2,3,4). 2) Attach cam locks (#I) into the holes of the panels above. When attaching panels together, make sure to reference back to page 5 on how to properly fit cam bolts (#H) to cam locks (#I).
- Page 8 Align legs (#14) to the base panel (#5), then secure by using screws (#F).
- Page 9 Make sure to check if all arrows of the cam locks (#I) on panels (#2,3,4) are facing towards the cam bolts (#H).
- Page 10 Make sure to check if all arrows of the cam locks (#I) on panels (#2,3,4) are facing towards the cam bolts (#H).
- Page 11 Make sure to check if all arrows of the cam locks (#I) on panels (#2,3,4) are facing towards the cam bolts (#H).
- Page 12 Align top metal tube (#10) to the back holes of the unit, then secure by using bolts (#C) with washers (#D). Secure metal tube (#10) to the side panels (#2,4) by using bolts (#B) with washers (#D).
- Page 13 Attach bolts (#G) to the holes of the bottom metal tube (#11), then insert middle washers (#J) to the bolts (#G). Secure legs (#12) to the bolts (#G). Align bottom metal tube (#11) to the side panels holes (#2,4), then secure by using bolts (#B) with washers (#D).
- Page 14 1) Align top metal rack (#15) to the holes of the top panel (#1), then secure by using bolts (#A) with washers (#D). 2) Align bottom metal racks (#13) to the holes of the unit, then secure by using bolts (#A) with washers (#D).
