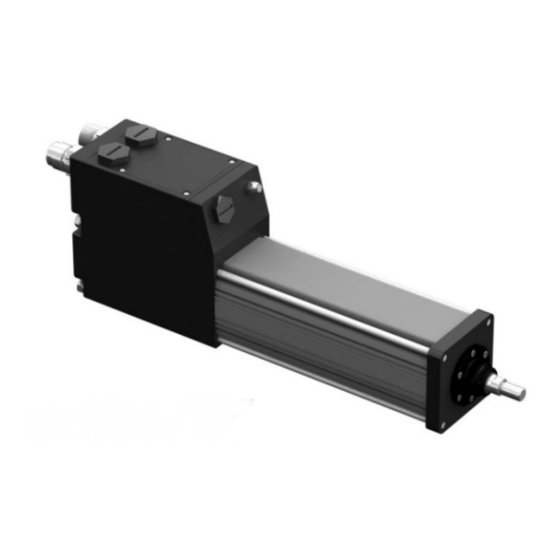

Tritex II
®
75 mm Actuator
INSTALLATION AND SERVICE MANUAL
Series Actuators
Curtiss-Wright
18400 West 77
Chanhassen, MN 55317
Phone: 855-620-6200 (US & Canada)
Phone: 952-500-6200
Fax: 952-368-4877
Website:
th
Street
www.cw-actuation.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Curtiss-Wright Tritex II Series and is the answer not in the manual?

Questions and answers

Related Manuals for Exlar Curtiss-Wright Tritex II Series

Summary of Contents for Exlar Curtiss-Wright Tritex II Series

  • Page 1 Tritex II ® Series Actuators 75 mm Actuator INSTALLATION AND SERVICE MANUAL Curtiss-Wright 18400 West 77 Street Chanhassen, MN 55317 Phone: 855-620-6200 (US & Canada) Phone: 952-500-6200 Fax: 952-368-4877 Website: www.cw-actuation.com...
  • Page 2 Information furnished by Exlar Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Exlar Corporation for its use. Exlar reserves the right to change the design and operation of the equipment described herein and any associated motion products that may appear in this document.
  • Page 3 WARRANTY AND LIMITATION OF LIABILITY Please see our warranty on our website here: Division Policies | About | Actuation Division | Curtiss-Wright Actuation Group (cw- actuation.com) for details. Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Safety Considerations ................5 Warnings and Cautions ................. 5 Underwriters Laboratories UL Recognized ........... 8 UL Certificate of Compliance ..............9 CE Declaration of Conformity .............. 11 UK Declaration of Conformity .............. 11 EU Declaration of Conformity .............. 11 CSA Certified Product .................
  • Page 5 Logic and IO Power Supply ..............44 Tritex Input and Output Wiring ............46 Input/Output Connections .............. 47 Digital Inputs .................. 49 Digital Outputs ................50 Actuator Brake Option ..............51 Analog Input .................. 53 Analog Output................54 Communications ................54 PC Communications ..............

  • Page 6: Safety Considerations

    SAFETY CONSIDERATIONS Warnings and Cautions As with any electro-mechanical device, safety must be considered during the installation and operation of your Tritex Series actuator. Throughout this manual you will see paragraphs marked with CAUTION and WARNING signs as shown below: WARNING “WARNING”...
  • Page 7 of equipment malfunction. System design, installation, commissioning and maintenance must be carried out by personnel who have the necessary training and experience. They must read this safety information and this manual carefully. None of the functions or features of the Tritex actuator may be used to ensure safety of personnel, i.e.
  • Page 8 WARNING If connected by plug and socket A special hazard may exist where the actuator is incorporated into a system connected to the AC supply by a plug and socket. The pins of the plug are not generally isolated from the charge stored in the bus capacitor, so must be considered electrically “hot”...

  • Page 9: Underwriters Laboratories Ul Recognized

    Underwriters Laboratories UL Recognized UL Recognized UL File E353255 Tritex II 75 mm Linear and Rotary Actuators are marked “UL Recognized” after passing a rigorous set of design and testing criteria developed by Underwriters Laboratories UL 508C, UL 1004-1, UL 1004-3 and UL 1004 -7. This UL logo indicates that UL certifies this product to be safe when installed according to the installation instructions and used in accordance with the product specifications and the following conditions of acceptability:...

  • Page 10: Ul Certificate Of Compliance

    UL Certificate of Compliance Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...
  • Page 11 Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 12: Ce Declaration Of Conformity

    CE Declaration of Conformity The Tritex II 75 mm Linear and Rotary Actuators are marked with the “Conformité Européenne Mark” (CE Mark) after passing a rigorous set of design and testing criteria. This label indicates the product meets applicable electrical safety, and electromagnetic immunity and emissions (EMC) standards when installed according to the installation instructions.
  • Page 13 Make ground connections as short as possible for low impedance. • Keep cable runs as short as possible. Power and signal cables must • be separated and far as possible and only crossing them at right angles as described in the Cable routing section of this manual. IP 66 rating: •...
  • Page 14 Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...
  • Page 15 Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...
  • Page 16 Per EU directives implemented on April 20th, 2016 the following requirement for requirement must be followed by Importers and Distributors. The requirements for importers include: Importers shall indicate their name, registered trade name or registered trade mark and the postal address at which they can be contacted on the apparatus (unless that is not possible, in which case it should be included on the packaging or in an accompanying document).

  • Page 17: Csa Certified Product

    • Cable with connector assemblies, or • Cables with cable glands are permitted. For additional information on cable installations or part numbers contact Exlar Corporation. Branch circuit protection must be provided. Reference the • manual’s electrical installation section for fuse and circuit breaker options.
  • Page 18 Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...
  • Page 19 Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 20: General Specifications

    General Specifications Tritex II Overview Tritex II is Exlar’s advanced family of integrated drives. This manual applies to 75 mm frame size only with 240VAC input power. All of the required power components and motion processor are contained in the actuator housing.

  • Page 21: Drive Specification For All Tritex 240 Volt Models

    Environmental Ambient Temperature, charts below show ratings for 40° C Maximum Operating temperature range -20° to 65° C See de-rating chart for temperatures above 40° C. For operation below -20°C contact Exlar Applications Engineering. Storage Temperature -40°C to 85°C. Operational Altitude is 2000 meters.

  • Page 22: Actuator Selections

    Actuator Selections This manual applies to 75mm frame size only. Tritex actuators are available in linear, rotary, and rotary with integrated planetary. All include embedded drive and motion controller. Linear Frame Std. High Rotary Rotary Size Capacity Capacity Motor Gearmotor 75 mm T2M-075 T2X-075...

  • Page 23: Linear Actuator Ordering Guide

    TCN = SIO plus Modbus TCP w/o M12 connector N = NPT Threaded Port via Adapter with Internal Terminals, 1/2” NPT MM = Mechanical Options I = Intercontec Style - Exlar std, M16/M23 Style AR = External Anti-rotate Connector L1/2/3 = External Limit Switches J = Embedded leads with “I”...
  • Page 24 For extended temperature operation, consult factory N = NPT Threaded Port with Internal Terminals, for model number. 1/2” NPT I = Intercontec style - Exlar Standard, M16/M23 Style Connector J = Embedded leads with “I” plug 3’ standard E = Coating Options...

  • Page 25: Mechanical Installation

    Note: If the actuator with which you are working has a preloaded follower (PF option), do not remove the nut or screw. Contact Exlar Corporation and arrange to have maintenance and/or re-lubrication performed on the actuator by an authorized Exlar repair facility.

  • Page 26: General Operation

    For applications in which the load is free to rotate, Exlar offers the anti-rotation systems shown in drawings following the mounting dimension drawings. The drawings show the rod and bushing on only one side of the actuator.

  • Page 27: Outdoor And Wash Down Installations

    Caution, over tightening can strip the threads in the enclosure. If a screw is missing replace it with Exlar PN 01185. (4-40 x ¼ Button Head Cap Screw, Stainless Steel) Curtiss-Wright | TRITEX II AC 75 Rev.

  • Page 28: Manual Drive Operating Instructions

    If manually driving with a brake engaged or high force is • necessary, please consult Exlar Application Engineering. If a power tool is used to operate the manual side drive the speed • should be limited to 600 RPM •...
  • Page 29 Side Drive Instructions 1) Isolate all sources of energy from the drive 2) Press down on the hex until you feel you have bottomed out the manual drive. Constant downward force is required to maintain engagement during operation. 3) Give the hex a slight turn while observing if you are moving the rod or not.

  • Page 30: Electrical Installation

    Electrical Installation Introduction All of the required power components, motion processor, and I/O and communications ports are contained in the actuator or motor housing. The following diagram shows the electrical connections schematically: Output 1 BUS + AC Power 100 VAC to 240 VAC Output 2 BUS - For Braking...

  • Page 31: Cable Entry

    Cable Entry Several cable entry / connector options are available. All standard models include four M20x1.5 threaded holes machined into the electronics housing for cable entry, two in the top and two in the rear. The two holes in the top will be plugged with removable hole plugs. The user is free to use these holes as needed as long as any unused holes are re-sealed to prevent water or dust intrusion (see note).
  • Page 32 G Option N Option I Option A PG 9 hole is also machined in front of the electronic enclosure. This hole is used for the Ethernet or CAN communication connector. If these options are not selected this PG9 hole is available for customer use. PG 9 Port, shown plugged w/o Ethernet or CAN option PG9 Cable Entry Port/ Communication Connector...

  • Page 33: Grounding

    WARNING Grounding Fixed Protective Earth (PE) connections are required for human safety as well as proper operation. PE connections must not be fused or interrupted. Failure to follow proper PE wiring can cause death or serious injury. This equipment has high earth leakage current and requires a redundant PE connection to comply with EU Low Voltage Directive.

  • Page 34: Shielding

    EMC type cable glands. Tape or heat shrink applied to cable end When the “I” connector option and Exlar cables are used this function is included in the cable/ connector construction at the actuator end. Curtiss-Wright | TRITEX II AC 75 Rev.

  • Page 35: Ac Input Power

    CAUTION Avoid Loose Conductive Material Always apply tape or heat shrink to the end of the shield to prevent strands of the braided shield from breaking off and shorting internal electronics or compromising spacing. AC Input Power Tritex II actuators require 100 VAC to 240 VAC (nominal) single phase 50/60 Hz to operate.
  • Page 36 Grounded WYE Power Connection, 120/208Y 3Ф Grounded WYE Power Connection, 220/380Y 3Ф Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...
  • Page 37 Three Phase Grounded Delta Power Connection, 240 VAC Three Phase Delta with Mid-Phase GND Power Connection, 240 VAC Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 38: Ac Supplies Requiring Transformers

    AC Supplies Requiring Transformers If the power distribution connection is configured as shown in the figures below, an isolation transformer must be installed between the power distribution and the actuator. The isolation transformers secondary must be grounded for safety reasons. Do not use buck-boost type transformers.

  • Page 39: Single Phase Isolation Transformer Connections

    Ungrounded Delta Power Distribution Single Phase Isolation Transformer Connections Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 40: Wire Size, Branch Circuit Protection And Overcurrent Protection

    Wire Size, Branch Circuit Protection and Overcurrent Protection Drives must be protected by non-semiconductor fuses or inverse-time circuit breakers only. The table below lists approved fuses or circuit breaker and the manufacture: Fuse or Circuit Breaker Required Wire Sizes for L1, L2 and PE Fuse Class / Circuit Mersen...
  • Page 41 CAUTION Use Correct Wires and Terminations for Power Wiring in UL Installations. L1, L2,PE, R1 and R2 connections should be 14 AWG / 2.5 mm, 300V,105⁰C minimum. If ferrules are used with 14 AWG wire a precise crimp is required. The crimped ferrule must measure less than 2.1 mm on each side of the ferrule or it will not fit into the terminal opening.

  • Page 42: Power Connector Wiring

    Power Connector Wiring Refer to the following table for standard pre-wired power connector, part of Option “I”. WARNING Dangerous Voltages Present On Connector Pins #4 and #5 Pins #4 and #5 connect to terminals R1 and R2 for use with a braking resistor and have dangerous voltages present under normal operation and for up to 6 minutes after main power is disconnected.

  • Page 43: Brake / Shunt Resistor Considerations

    The user may override this protection to allow the actuator to move to a safe position before disabling or take similar immediate controlled action. Contact Exlar Application Engineering to enable this functionality. CAUTION Do not continue normal operation after reaching temperature or current limits.
  • Page 44 resistor assembly is best. Fuses are difficult to size properly; the intension on the fuse is not to protect the Tritex, but to protect the wiring and resistor from overheating. The resistor used must be rated for dynamic braking applications for 240 VAC drives, meaning it is capable of peak working voltage of at least 400V and can absorb high energy within a short period.

  • Page 45: Logic And Io Power Supply

    Logic and IO Power Supply The 75 mm Tritex contains a built in 24 Volt power supply, this supply can be used to power the optional internal brake as well as provide some power for the IO. The maximum current the internal 24 V can provide is 600 mA.
  • Page 46 Block Diagram of 24V IO and Logic Supply Connections Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 47: Tritex Input And Output Wiring

    Tritex Input and Output Wiring Input / Output Connections with M23 connectors 19 Pin I/O Connector for I Connector Option Pin for “I” Connector Wire Color Code TTIOC Cable FUNCTION Option and “B” Connector Option White/Yellow INPUT1 White/Red INPUT2 White/Green INPUT3 White/Black INPUT4...

  • Page 48: Input/Output Connections

    Front View “I” Connector Option Input / Output Connections Terminal board connections Terminal # Function Terminal # Function Terminal # Function INPUT 1 +24V Source *Analog IN+ INPUT 2 +24V Source *Analog IN- INPUT 3 I/O Common *Analog OUT INPUT 4 Brake + *Analog REF RS485+...
  • Page 49 SIO and Ethernet Option IA4 Option Abs Pos Battery Input 1 Output 1 Output 2 Input 2 Input 3 Output 3 Input 4 Unused 1 2 3 4 5 6 7 8 CAN L I/O +V CAN L I/O +V CAN H Brake +V I/O Common...

  • Page 50: Digital Inputs

    Digital Inputs Tritex digital inputs are optically isolated from drive main power, but have a common negative side. SIO and Ethernet options have 8 inputs, the IA4 and CAN options have 4 inputs. They require a positive voltage to turn on, so are compatible with sourcing outputs only. The voltage for the input can be sourced from and external 24 V supply or from the internal 24V supply.

  • Page 51: Digital Outputs

    Digital Outputs The Tritex digital outputs are optically isolated from drive main power, but have a common positive side. SIO and Ethernet options have four outputs, the IA4 option has three outputs.. These outputs are sourcing only, they provide a positive voltage when on. The power for the outputs can come from and external 24 V supply or from the Tritex internal 24 V supply.

  • Page 52: Actuator Brake Option

    Digital Output Specifications Description Specification Operating voltage range 0 to 30 V dc On state maximum continuous current 100 mA On state voltage drop (@ 50mA) .5 V typical Short circuit protection (auto reset) .5 A Update rate 1 ms Actuator Brake Option The actuators may be ordered with a brake option.
  • Page 53 WARNING If the brake is released using the brake override function and if AC power is off or the drive is not enabled the load will be free, this may be dangerous in some applications. IO +V J2-5,6 Customer interlocks (Optional) Brk +V External...

  • Page 54: Analog Input

    Analog Input An analog input is provided for use as a position, velocity or current command. Differential input range is -10 V to +10 V. Input range on Analog IN+ is -15 V to +15 V with respect to IO Common. Input range of Analog IN- is -15 V to +12 V with respect to IO Common.

  • Page 55: Analog Output

    Analog Output A 0-10 V analog output is provided. The function of this output is programmable. It can be used for position, velocity or current monitoring. The intent of this output is to provide a “monitor” type value not a “control”...
  • Page 56 8mm communications connector Front view Wire color for Function number TTCOM Terminal # 485+ Brown 485- Blue 485 COM Black Shield Drain Optional RS 485 Field Wiring Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 57: Pc Communications

    PC communication ports and the RS485. This can be either a USB to 485 converter, such as the Exlar CBL-T2USB485-M8 or any other standard 485 converter. See Accessories section. +3.3V...

  • Page 58: Ia4 Option Board Connections

    RS485 is a “multi-drop” network as opposed to a “star”, therefore • keep the drop (stub) to each actuator as short as possible. When using the 8 mm connector use a T connector, such as the Exlar PN TT458SP. A termination resistor is not usually required.
  • Page 59 4-20 mA input connection External Controller or Transmitter 4-20 mA Output Tritex Option Power Supply + 4-20 mA Converter To CPU - 4-20 mA Input 24V Com Connection to High Side Controller Connection to Low Side Controller 4-20 mA Input Specifications Description Specification 2 mA to 22 mA...
  • Page 60 4-20 mA Output The 4-20 mA output is a two wire circuit; it requires an external loop supply of 12 to 30V DC to generate the isolated supply voltages needed. The Tritex circuit requires 8V to operate; therefore the max impedance the output can drive is dependent on the loop supply voltage.

  • Page 61: Af Option, Absolute Feedback

    The replacement battery kit is Exlar P/N 54108. The T2BAT1 kit (Exlar P/N 42712) for Tritex AC actuators will work, but outer sleeve on battery must be removed to fit well in clip.

  • Page 62: Ethernet Options, Eip,Tcp Or Profinet Io

    Important Note for units built before 2016: If the battery is removed with both Motor and Logic power also removed, do not reconnect the battery and leave all power off for 4 minutes. Once all power is removed from the battery backed logic it must be allowed enough time to completely bleed down before restarting.
  • Page 63 M12 D Coded Straight Through Cord Set 8-Way Modular M12 Signal Pair Pair Conversion from M12 D Coded to 8 Way Modular Straight Through Cord Set Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 64: Canopen

    For Options EIN, PIN or TCN in the model mask the M12 connector is not included; the Ethernet CAT 5 cable must be routed through the M20 IO port. The installer must then crimp on an RJ45 8 way Modular connector for installation to Ethernet port inside the wiring access area.
  • Page 65 120Ω CON Option Signal Color CAN H White CAN L Blue Shield Gray COP Option Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 66: Maintenance Procedures For Re-Greasing

    If your actuator has a preloaded roller screw, do not remove it from the cylinder. Preloaded screws require special tooling and procedures for proper disassembly and reassembly. Contact Exlar Corporation to arrange for maintenance of a preloaded screw actuator. Disassembly Refer to the exploded view on the following page.

  • Page 67: Lubrication Maintenance

    Lubrication Maintenance Grease lubricated units will require periodic inspection and renewal of the roller screw grease. The table below shows the recommended grease renewal period. Recommended Grease Renewal Period (hours) RMS rotational CASE TEMP 65°C CASE TEMP 80°C speed (RPM) (149°F) (176°F) 10,000...

  • Page 68: Grease Renewal

    Grease Renewal The angular contact thrust bearings located in the front of the actuator, the roller screw cylinder, and the roller screw assembly are the components that require grease. They require a coating of grease. They do not need to be packed with grease. Excess grease requires more torque from the motor when returned to operation, and does not improve the lubrication of the unit.

  • Page 69: Maintenance Procedures For Complete Re-Greasing

    Tritex 75 mm: 10 in-lbs (0.83 lbf-ft, 1.13 N-m) If your actuator has an external anti-rotate mechanism, slide the rod or rods of the anti-rotate mechanism through the front flange and into the guide bushing or bushings mounted to the rear of the flange.

  • Page 70: Lubrication Maintenance

    Lubrication Maintenance Grease lubricated units will require periodic inspection and renewal of the bearing and roller screw grease. The table below shows the recommended grease renewal period. Recommended Grease Renewal Period (hours) RMS rotational speed (RPM) CASE TEMP 65°C (149°F) CASE TEMP 80°C (176°F) 10,000 5,000 8,500...

  • Page 71: Reassembly

    2. Use a brush to work grease in to the roller screw assembly. Be sure to cover all the threaded surfaces of the screw assembly. This can be accomplished by applying grease to a few places on the roller screw assembly and rotating the components repeatedly in both directions to work the grease into the assembly.
  • Page 72 3. Carefully slide the face plate and bushing/seal assembly over the actuator rod end, while guiding the tie rods through the holes in the rear end cap of the actuator. The seal is a tight fit on the rod end. Take care not to damage the seal on the threads of the extending rod.

  • Page 73: Accessories

    ACCESSORIES Cables TTIOC-xxx I/O Cable Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...
  • Page 74 T2IPC-xxx Power Cable Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 75: Ttico-Xxx Communications Cable

    TTICO-xxx Communications Cable Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 76: Communication Converter

    When connecting the Tritex RS485 port to PC, a communication converter will typically be required. Exlar offers a USB to RS485 converter with an M8 connector ready to connect to the Tritex port. Model # CBL-T2USB485-M8-xxx. This converter is not isolated and is not recommended for permanent installation.

  • Page 77: Braking Resistor T2Br1

    Braking Resistor T2BR1 Curtiss-Wright | TRITEX II AC 75 Rev. K PN61928 7/12/2022...

  • Page 78: Returning A Product For Repair

    Exlar Returned Goods Administrator. Failure to comply with issued instructions may result in delays for repair and return. Exlar requires a purchase order at the time of RGA; $750 on • warranty returns (refunded if warranty status is confirmed by the factory), or for the desired service package charge per unit on all non-warranty units.
