ON Semiconductor AR0261CS User Manual

AR0261CSSC30SMKAH3-GEVB
AR0261CS Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 3 Controlled MClk
♦
•
Two-wire Serial Interface
Selectable Base Address
♦
•
MIPI Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
February, 2016 − Rev. 0
Figure 2. Block Diagram of AR0261CSSC30SMKAH3−GEVB
EVAL BOARD USER'S MANUAL

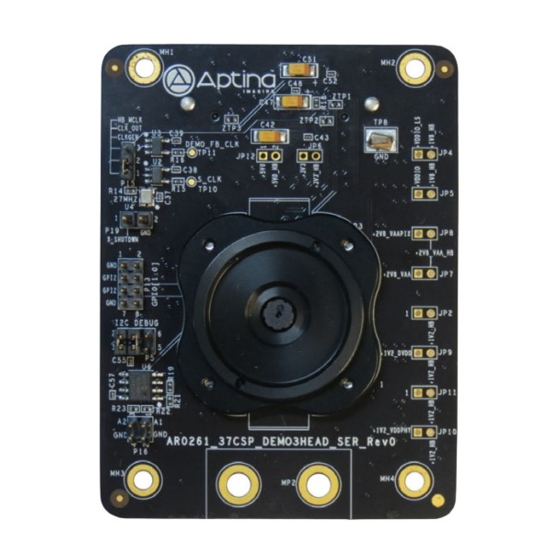

Figure 1. AR0261CS Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2373/D
