For more information contact our team: service.ec@foagroup.com

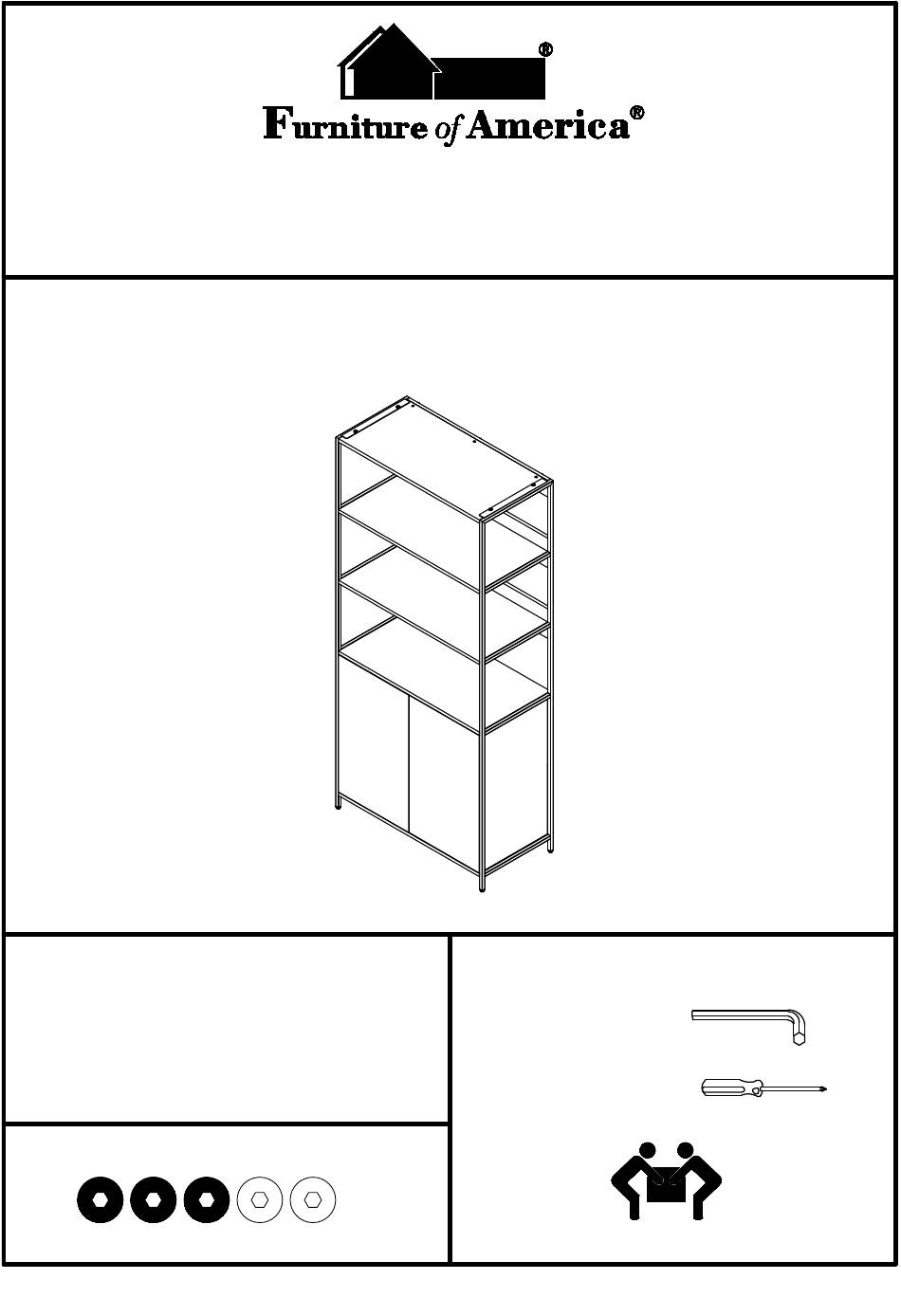

ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
Assembly Instructions
CM-AC6059
DIFFICULT
Tools Required For Assembly:
Allen Wrench
Phillips Screwdriver
2 PERSONS RECOMMENDED
Page 1 of 15
(Included)
(Not Included)
Rev: 18-09-06
Advertisement
Related Manuals for Furniture of America CM-AC6059
Summary of Contents for Furniture of America CM-AC6059
- Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM-AC6059 ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult).
- Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 15...
- Page 3 Cam Lock Fastener Assembly Board A Cam Lock are fasteners used to join two boards together, usually the edge of one board (A) to the flat side of another board (B). Flat side edge to join Board B Cam Lock Cam Pin To use Cam Lock Step 2 - Fit the...
- Page 4 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #A x 27pcs #1 x 3pcs Shelf Panels Wood Dowels Ø8x30mm #B x 20pcs #2 x 1pc Top Back Panel Cam Pin #C x 20pcs...
- Page 5 #I x 20pcs #9 x 1pc Plastic Caps Right Door #J x 1pc #10 x 1pc Allen Wrench M4 Drawer Shelf Panel #K x 2set #11 x 1pc Anti-Tip Kit Left Side Frame #12 x 1pc Right Side Frame Page 5 of 15...
- Page 6 Insert dowels (#A) and barrel nuts (#D) to shelf panel (#1), then align top back panel (#2) to shelf panel (#1). Secure by using bolts (#F) onto barrel nuts (#D) in shelf panel (#1). #A x 2pcs #D x 3pcs #F x 3pcs Insert dowels (#A) and barrel nuts (#D) to shelf panel (#1), then align middle back panel (#3) to shelf panel...
- Page 7 Attach dowels (#A) and cam bolts (#B) to panel (#4). #A x 7pcs #B x 6pcs Attach dowels (#A) and cam bolts (#B) to panel (#5). #A x 7pcs #B x 6pcs Page 7 of 15...
- Page 8 Attach dowels (#A) and cam bolts (#B) with panel (#7). #A x 2pcs #B x 4pcs Attach dowels (#A) to one panel (#7), then attach both panels (#7) together. #A x 3pcs Page 8 of 15...
- Page 9 Align panels (#6) to the dowels and cam bolts of panels (#7), then secure by using cam locks (#C). Please refer to page 3 on how to secure cam bolts onto cam locks. #C x 8pcs Align panel (#4) to the unit, then secure by using cam locks (#C). #C x 6pcs Page 9 of 15...
- Page 10 On the other side, align panel (#5) to the unit. Secure by using cam locks (#C). #C x 6pcs #E x 8pcs Align shelves (#1) and bottom unit (#5) to the right side frame (#12), then secure by using bolts (#E). Page 10 of 15...
- Page 11 Secure shelving units and bottom unit to right side frame (#12) by using bolts (#E). #E x 9pcs Align left side frame (#11) to the shelving unit, then secure by using bolts (#E). #E x 8pcs Page 11 of 15...
- Page 12 Secure shelving units and bottom unit to left side frame (#11) by using bolts (#E). #E x 9pcs Align and attach the hinges of doors (#8,9) to the unit by using screws (#G). #G x 16pcs Page 12 of 15...
- Page 13 Place shelf pins (#H) to the desired height of the shelf (#10). #H x 4pcs Cover cam locks inside of bottom unit by using stickers (#I). #I x 20pcs Page 13 of 15...
- Page 14 #E x 2pcs #K x 2set ASSEMBLY IS COMPLETED Page 14 of 15...
- Page 15 Side to Side Adjustment loosen screw A, adjust gap with screw B and re-tighten Height Adjustment Screw A loosen screw C, adjust door Depth Adjustment height and re-tighten screw C loosen screw A, push hinge arm forwards or backwards, re-tighten screw A and secure Screw B with a 1/4 turn clockwise.
