Thank you for choosing Amperes Matrix paging system.
RP1104 is a remote zone control panel which is to be located
away from matrix controller for easy control of music source,
tone and volume at particular zone.
Amperes Matrix System is most suitable for installations in
clubhouse, hotels, restaurants, etc., where each zone shall
have flexibility of selecting required music and volume.

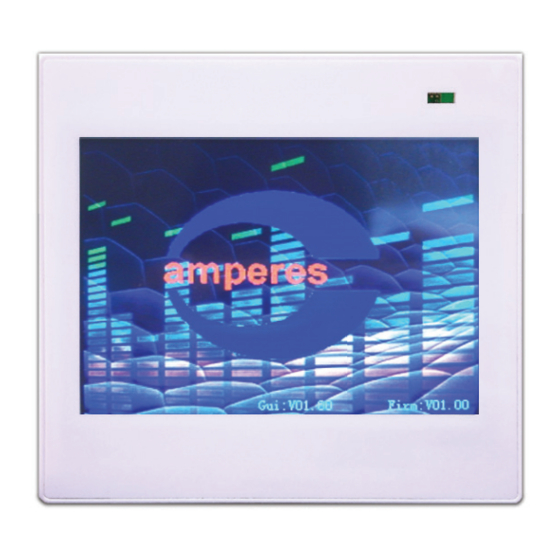

Amperes RP1104 is a touch screen panel, made for the above
purpose with screen lock feature to avoid unnecessary chang-
es to the setting.
Technical Specifications
Power source
Power consumption
LCD panel
Communication
Controls
Cabling
Distance
Dimensions (WxH)
Color
Weight
24V DC via MxP2288
100 mA
3.5" resistive touch screen
RS485 ; 19.2 Kbps
Volume / BGM source / tone controls / channel select
Cat 5e / 6
Up to 500m
86 x 86 mm
White
100 g
INSTRUCTION MANUAL
Matrix Remote Zone Controller
RP1104
VER 3 / 2022
Advertisement
Table of Contents
Related Manuals for Amperes RP1104
Summary of Contents for Amperes RP1104
- Page 1 Matrix Remote Zone Controller Thank you for choosing Amperes Matrix paging system. RP1104 is a remote zone control panel which is to be located away from matrix controller for easy control of music source, tone and volume at particular zone.
- Page 2 Power Amplifier RP1104 Speakers Out 8 Max number of RP1104 is 8. Ensure power supply is sufficient using external PSU if required for more RP1104 to be installed. Guide to Installation 1 : Cut the wall hole or using Back Enclosure...
- Page 3 Output volume - Bass and Treble controls Setting - Screen lock with password SETTING PAGE / RP1104 LINK The output channel of matrix controller’s link to this remote To change a setting, press the panel can be set directly from...
- Page 4 Information contained in this manual is subject to change without prior notice and does not represent a commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or damages whatsoever arising from the use of information or any error contained in this manual.
