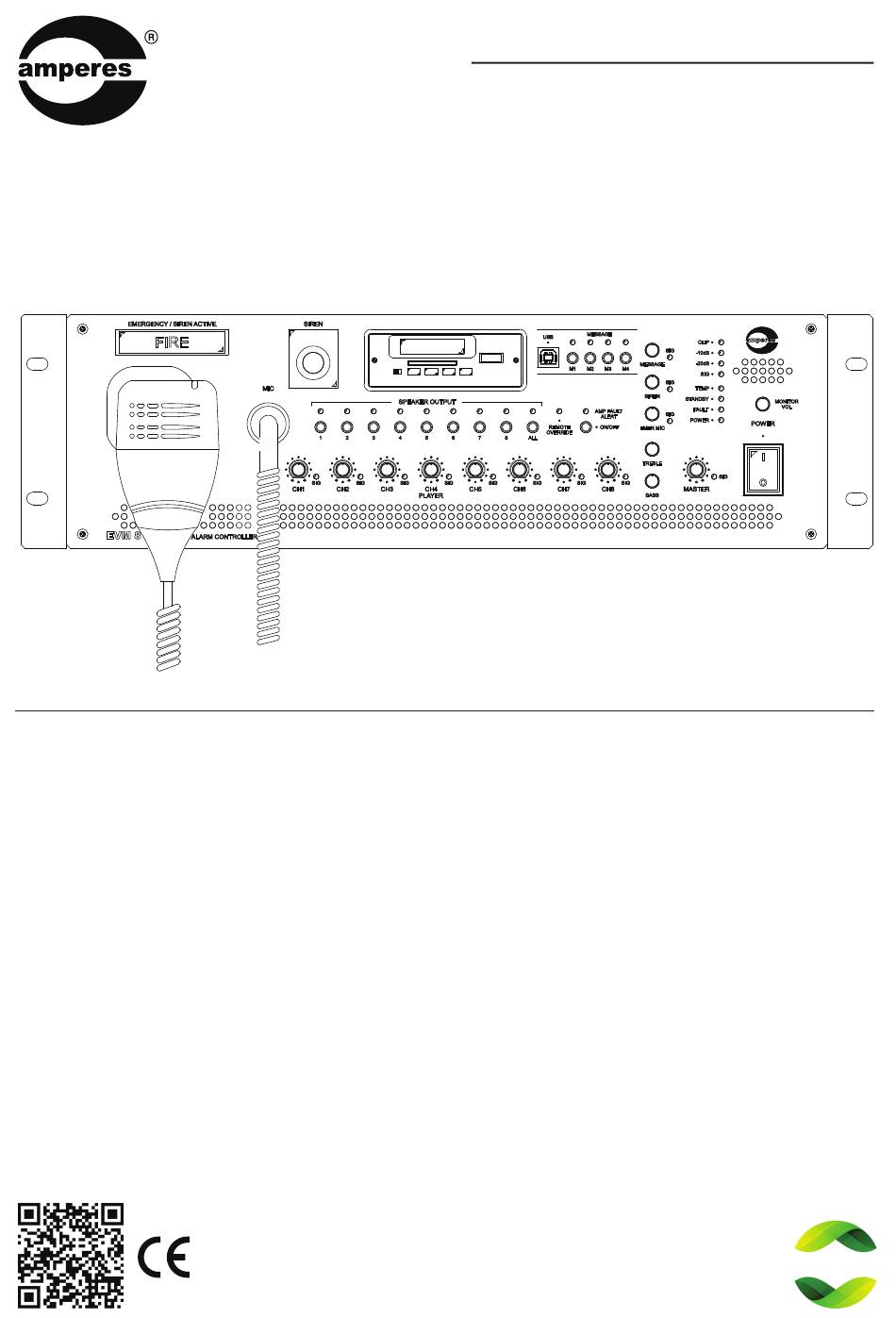

EMERGENCY / SIREN ACTIVE
FIRE
EVM 8
Thank you for choosing another quality product from Amperes Electronics.
Product in Summary
EVM8810 provides a cost efficient way for powering up the BGM / Paging system with voice evacuation features to your premises. It
is a compact voice alarm controller with necessary elements to comply to authority's requirement for a complete EVAC system, such
as emergency microphone, siren tone generator and voice message which can be triggered manually or automatically by interfacing
with FI6000.
It also includes a preamplifier mixer with individual tone controls which allows connections to external BGM players or microphone
inputs. Media player with USB, SD Card, FM tuner and Bluetooth player that comes with the device eliminates the need of external
music player. EVM8810 comes with highly efficient 1000W 100V amplifier module with fault sensor. The master unit has 8 zone
outputs, and when required for expansion, EVS8820 can be linked to form a bigger system with bigger power output.
EVM8810 or EVS8820 shall be the right choice for compact system in complex installation for EVAC system in your premises.
Ver 1 / Updated May 24
SIREN
MIC
1
2
SIG
SIG
CH1
CH2
ALARM CONTROLLER
INSTRUCTION MANUAL
SPEAKER OUTPUT
3
4
5
6
7
8
ALL
SIG
SIG
SIG
SIG
CH3
CH4
CH5
CH6
PLAYER

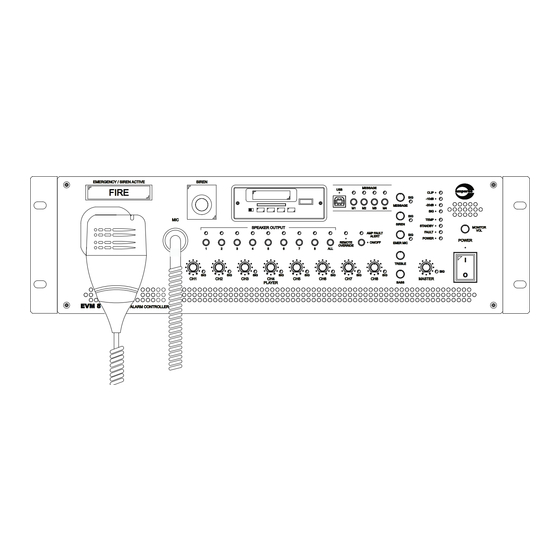

EVM8810
Voice Alarm Controller ( Master )
MESSAGE
USB
CLIP
SIG
-10dB
-20dB
MESSAGE
M1
M2
M3
M4
SIG
SIG
TEMP
SIREN
STANDBY
FAULT
AMP FAULT
SIG
ALERT
POWER
REMOTE
ON/OFF
EMER MIC
OVERRIDE
TREBLE
SIG
SIG
CH7
CH8
MASTER
BASS
In our support towards environment, we
shall no longer print manuals to be
accompanied with each product. Please
view through browser and print them
only when necessary.
amperes
MONITOR
VOL
POWER
I
SIG
O
Go Green
Advertisement
Table of Contents
Related Manuals for Amperes EVM8810
Summary of Contents for Amperes EVM8810
- Page 1 Product in Summary EVM8810 provides a cost efficient way for powering up the BGM / Paging system with voice evacuation features to your premises. It is a compact voice alarm controller with necessary elements to comply to authority’s requirement for a complete EVAC system, such as emergency microphone, siren tone generator and voice message which can be triggered manually or automatically by interfacing with FI6000.
-
Page 2: Media Player
The front buttons are for manually triggering message stored in the device. Any message triggered either by the front or rear shall bypass any BGM being played, but in turn, will be overrided by the EXT EP or when the handheld PTT mic is activated. PAGE 2 EVM8810 | 1000W 100V VOICE ALARM CONTROLLER... -
Page 3: Technical Specifications
20. START ADDRESS Set the start address of EVM8810 which will be the first zone number of the device. This will allow the device to be used in a system of mix configura- tions / multiple block systems. If set the address as 1001 0000 00, the start of the zone will be zone 9 to 16 for the unit. -
Page 4: Parts Identification
29. REMOTE PAGING MIC INPUT PORTS Amperes PD series of paging microphone can control zones for EVM / EVS. There are two ports available for direct termination to the unit. In the event that more than one paging mic is used in the setup, use mic external mic connection unit EX2800. If the mic is located a distance away and return to the device using 2 pair screen cable, use RJ45 to connect to adapter to terminate, with the pin configuration shown at the panel. - Page 5 Standby amplifier model is subjected to the power capacity required. The above diagram illustrates tpical configurations using EVM8810 serving Zone 1 to Zone 8 and links to EVS8820 serving Zone 9 to 24. All Amperes PD series of paging microphones can be used in the setup.
- Page 6 Standby amplifier model is subjected to the power capacity required. The diagram above shows connection of local installation using EVM8810 to Amperes iPX system. In this case, the iPX5155 shall be assumed as another paging mic. The priority accorded to iPX5155 can be set at central iPD paging mic. Since it is a part of a larger setup, the starting address may be different- ly configured.
- Page 7 FI6000 Fire alarm interface ( optional ) If in a system which there are more than 8 zones but the total load is below the capacity of EVM8810, the zones can be extended by using external zone selector ( TD6400 ), without having to add another unit of EVS8810.
-
Page 8: Connecting The Unit
2 Channels for external BGM player using RCA jacks are available. Connect the stereo jacks audio player to Channel 7 and 8. Although the incoming is stereo, it shall be converted to mono in the device. LINE Stereo RCA input jacks EVM8810 | 1000W 100V VOICE ALARM CONTROLLER PAGE 8... - Page 9 Connecting the Unit REMOTE PAGING MIC ( AMPERES PD1240, ETC / EMERGENCY PAGING MIC EP1200 ) There are 2 ports for connecting the device to external Amperes paging microphones. Recommended paging microphones are PD1240, PD1160 and REMOTE MIC (PD) PD1900. If there are more than 2 paging mic, use mic extender EX2800, as shown in the instruction manual of the respective paging mic models.
- Page 10 Connecting the Unit FI6000 INTERFACE EVM8810 can be linked to external fire alarm panel through Amperes FI6000 to initiate EVAC message stored in the device and also to Section of EVM8810 control the zone (s) in relation to the triggered channel of FI6000.
- Page 11 TD6400 ), emergency triggering, etc. RS 485 CONTACT EVM8810 comes with internal Auto Fault Sensor (AFS). If the amplifier is faulty, this contact will close, which can then be used to activate external amplifier changeover unit or to trigger any external alerting device.
- Page 12 STANDBY AMPLIFIER CONNECTIONS A standby amplifier must be able to cater for the overall loads. The output of the standby unit must be connected to the Standby Amp input ( EVM8810 ). The standby output is then connect to the next slave unit and thereafter to the next slave unit.
- Page 13 Loading EVAC Messages 4 files of messages can be uploaded to EVM8810 with total message length of 5 minutes. To upload message, plug the Printer-USB cable provided to the USB port of EVM ( Part ID 5 ) and the B side of the cable to PC or Notebook.
-
Page 14: Operating The Unit
POWER CLIP -10dB MONITOR -20dB The output is the summation of all input audios, with level after the Master Volume. POWER MASTER EVM8810 | 1000W 100V VOICE ALARM CONTROLLER PAGE 14... - Page 15 Siren Paging Mic Lowest Operating the Unit - Media Player EVM8810 comes with integrated media player with FM tuner, SD card, USB and Bluetooth functions ( Part ID : 4 ). SIREN MESSAGE TRIG Other associated parts with the player are the speaker zone selection of which the zones requiring BGM can be selected.
-
Page 16: Remote Controller
4. Next / Previous Button : In the playback mode, USB / SD songs, press this button to select previous song or next song. In the radio mode, it is for search- ing stations. EVM8810 | 1000W 100V VOICE ALARM CONTROLLER PAGE 16... - Page 17 Net weight ( kg ) 10.8 Gross weight ( kg ) 12.8 Note: The above specifications are correct at time of printing, but subject to changes without prior notice due to product improvements. EVM8810 | 1000W 100V VOICE ALARM CONTROLLER PAGE 17...
-
Page 18: Warranty Conditions
Disclaimer Information contained in this manual is subjected to change without prior notice and does not represent a commitment on the part of the vendor. Amperes Electronics Sdn Bhd shall not be liable for any loss or damages whatsoever arising from the use of information or any error contained in this manual.
